All diagrams for this model

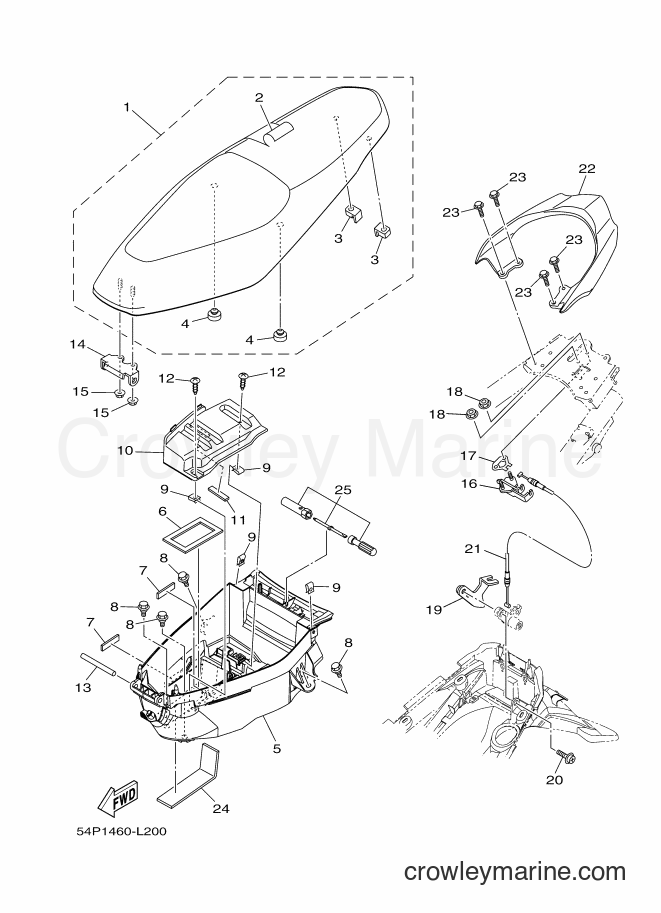

2013 Scooter AL115FC - AL115FC (54PC) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115FC (54PC) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY54P-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. SEAT COVER COMP.
2
Yamaha Motors
. SEAT COVER COMP.54P-F470F-00
Required: 1
. SEAT COVER COMP.
Price unavailable
. PAD, SEAT
3
Yamaha Motors
. PAD, SEAT5TL-F4741-00
Required: 2
. PAD, SEAT
Price unavailable
-15%
Seat Pad (3C11)
4
Yamaha Motors
Seat Pad (3C11)3C1-F4741-00-00
Required: 2
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
BOX ASSY
5
Yamaha Motors
BOX ASSY54P-F4704-00
Required: 1
BOX ASSY
Price unavailable
DAMPER
6
Yamaha Motors
DAMPER1KP-H2176-00
Required: 1
DAMPER
Price unavailable
DAMPER, PLATE
7
Yamaha Motors
DAMPER, PLATE90520-03806
Required: 2
DAMPER, PLATE
Price unavailable
COVER, BATTERY
10
Yamaha Motors
COVER, BATTERY54P-H2129-00
Required: 1
COVER, BATTERY
Price unavailable
DAMPER, PLATE
11
Yamaha Motors
DAMPER, PLATE90520-03806
Required: 1
DAMPER, PLATE
Price unavailable
-15%
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
PIN, SEAT FITTING
13
Yamaha Motors
PIN, SEAT FITTING5TL-F4727-00
Required: 1
PIN, SEAT FITTING
Price unavailable
HINGE, SEAT
14
Yamaha Motors
HINGE, SEAT54P-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
SEAT LOCK ASSY
16
Yamaha Motors
SEAT LOCK ASSY5TL-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
PLATE
17
Yamaha Motors
PLATE5TL-F4792-00
Required: 1
PLATE
Price unavailable
STAY, LOCK
19
Yamaha Motors
STAY, LOCK54P-F117K-00
Required: 1
STAY, LOCK
Price unavailable
-15%
Screw With Washer
20
Yamaha Motors
Screw With Washer90159-06054-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
CABLE, SEAT LOCK
21
Yamaha Motors
CABLE, SEAT LOCK54P-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
HANDLE, SEAT
22
Yamaha Motors
HANDLE, SEAT54P-F4773-00-P7
Required: 1
HANDLE, SEAT
Price unavailable
HANDLE, SEAT
22
Yamaha Motors
HANDLE, SEAT54P-F4773-00-P2
Required: 1
HANDLE, SEAT
Price unavailable
Flange Bolt
23
Yamaha Motors
Flange Bolt95822-06016-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.67
More details
DAMPER, PLATE
24
Yamaha Motors
DAMPER, PLATE90520-03810
Required: 1
DAMPER, PLATE
Price unavailable
TOOL KIT
25
Yamaha Motors
TOOL KIT54P-F8100-00
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
