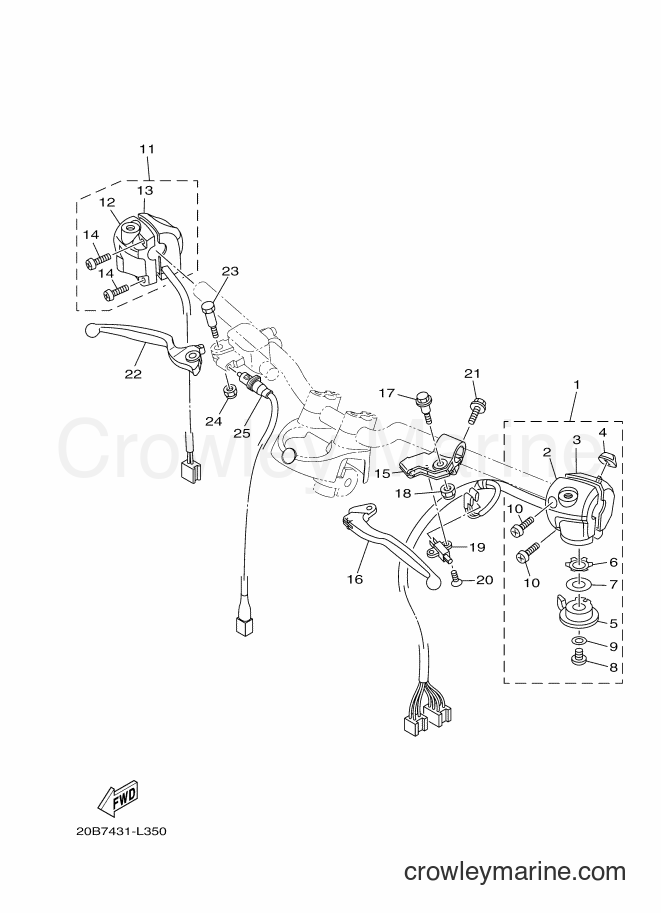

2013 Scooter AF115S - AF115S (20BA) [010] SWITCH & LEVER FOR DISK BRAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115S (20BA) [010] - SWITCH & LEVER FOR DISK BRAKE
Change View:
SWITCH, HANDLE 3(0660/SILVER)
1
Yamaha Motors
SWITCH, HANDLE 3(0660/SILVER)4D0-H3973-10
Required: 1
SWITCH, HANDLE 3(0660/SILVER)
Price unavailable
SWITCH, HANDLE 3(1124/WM6)
1
Yamaha Motors
SWITCH, HANDLE 3(1124/WM6)20B-H3973-01
Required: 1
SWITCH, HANDLE 3(1124/WM6)
Price unavailable
. CASE,SWITCH LOWER(001A/NW)
2
Yamaha Motors
. CASE,SWITCH LOWER(001A/NW)20B-H3987-10
Required: 1
. CASE,SWITCH LOWER(001A/NW)
Price unavailable
. CASE,SWITCH LOWER(1124/WM6)
2
Yamaha Motors
. CASE,SWITCH LOWER(1124/WM6)20B-H3987-00
Required: 1
. CASE,SWITCH LOWER(1124/WM6)
Price unavailable
. CASE,SWITCH LOWER(0660/SILVER)
2
Yamaha Motors
. CASE,SWITCH LOWER(0660/SILVER)4D0-H3987-10
Required: 1
. CASE,SWITCH LOWER(0660/SILVER)
Price unavailable
. CASE,SWITCH UPPER(001A/NW)
3
Yamaha Motors
. CASE,SWITCH UPPER(001A/NW)20B-H3986-10
Required: 1
. CASE,SWITCH UPPER(001A/NW)
Price unavailable
. CASE,SWITCH UPPER(1124/WM6)
3
Yamaha Motors
. CASE,SWITCH UPPER(1124/WM6)20B-H3986-00
Required: 1
. CASE,SWITCH UPPER(1124/WM6)
Price unavailable
. CASE,SWITCH UPPER(0660/SILVER)
3
Yamaha Motors
. CASE,SWITCH UPPER(0660/SILVER)4D0-H3986-10
Required: 1
. CASE,SWITCH UPPER(0660/SILVER)
Price unavailable
. KNOB 1
4
Yamaha Motors
. KNOB 14D0-H3977-00
Required: 1
. KNOB 1
Price unavailable
. LEVER, STARTER (BLACK)
5
Yamaha Motors
. LEVER, STARTER (BLACK)5TL-H3941-00
Required: 1
. LEVER, STARTER (BLACK)
Price unavailable
. SPRING
6
Yamaha Motors
. SPRING5TL-H3947-00
Required: 1
. SPRING
Price unavailable
. SPACER
7
Yamaha Motors
. SPACER5TL-H397X-00
Required: 1
. SPACER
Price unavailable
-15%
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98502-06008-00
Required: 1
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pan Head Screw
10
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$3.15
More details
SWITCH, HANDLE 1(0660/SILVER)
11
Yamaha Motors
SWITCH, HANDLE 1(0660/SILVER)4D0-H3976-10
Required: 1
SWITCH, HANDLE 1(0660/SILVER)
Price unavailable
SWITCH, HANDLE 1(1124/WM6)
11
Yamaha Motors
SWITCH, HANDLE 1(1124/WM6)20B-H3976-01
Required: 1
SWITCH, HANDLE 1(1124/WM6)
Price unavailable
. CASE,SWITCH LOWER(1124/WM6)
12
Yamaha Motors
. CASE,SWITCH LOWER(1124/WM6)20B-H3988-00
Required: 1
. CASE,SWITCH LOWER(1124/WM6)
Price unavailable
. CASE,SWITCH LOWER(001A/NW)
12
Yamaha Motors
. CASE,SWITCH LOWER(001A/NW)20B-H3988-10
Required: 1
. CASE,SWITCH LOWER(001A/NW)
Price unavailable
. CASE,SWITCH LOWER(0660/SILVER)
12
Yamaha Motors
. CASE,SWITCH LOWER(0660/SILVER)4D0-H3988-10
Required: 1
. CASE,SWITCH LOWER(0660/SILVER)
Price unavailable
. CASE,SWITCH UPPER(001A/NW)
13
Yamaha Motors
. CASE,SWITCH UPPER(001A/NW)20B-H3985-10
Required: 1
. CASE,SWITCH UPPER(001A/NW)
Price unavailable
. CASE,SWITCH UPPER(1124/WM6)
13
Yamaha Motors
. CASE,SWITCH UPPER(1124/WM6)20B-H3985-00
Required: 1
. CASE,SWITCH UPPER(1124/WM6)
Price unavailable
. CASE,SWITCH UPPER(0660/SILVER)
13
Yamaha Motors
. CASE,SWITCH UPPER(0660/SILVER)4D0-H3985-10
Required: 1
. CASE,SWITCH UPPER(0660/SILVER)
Price unavailable
. SCREW, PAN HEAD
14
Yamaha Motors
. SCREW, PAN HEAD9850M-05020
Required: 2
. SCREW, PAN HEAD
Price unavailable
. SCREW, PAN HEAD WITH WASHER
14
Yamaha Motors
. SCREW, PAN HEAD WITH WASHER9760M-05220
Required: 2
. SCREW, PAN HEAD WITH WASHER
Price unavailable
HOLDER, LEVER 1(0035/SL)
15
Yamaha Motors
HOLDER, LEVER 1(0035/SL)4D0-H2911-00
Required: 1
HOLDER, LEVER 1(0035/SL)
Price unavailable
LEVER 1 (SILVER)
16
Yamaha Motors
LEVER 1 (SILVER)5TL-H3912-30
Required: 1
LEVER 1 (SILVER)
Price unavailable
BOLT
17
Yamaha Motors
BOLT90109-06889
Required: 1
BOLT
Price unavailable
NUT
18
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
FRONT STOP SWITCH ASSY
19
Yamaha Motors
FRONT STOP SWITCH ASSY5TL-H3980-02
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
-15%
Flat Screw
20
Yamaha Motors
Flat Screw98707-03008-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 98702-03008-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
LEVER 2 (SILVER)
22
Yamaha Motors
LEVER 2 (SILVER)20B-H3922-00
Required: 1
LEVER 2 (SILVER)
Price unavailable
-15%
BOLT
23
Yamaha Motors
BOLT90109-06255-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
NUT
24
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
FRONT STOP SWITCH ASSY
25
Yamaha Motors
FRONT STOP SWITCH ASSY4D0-H3980-01
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
