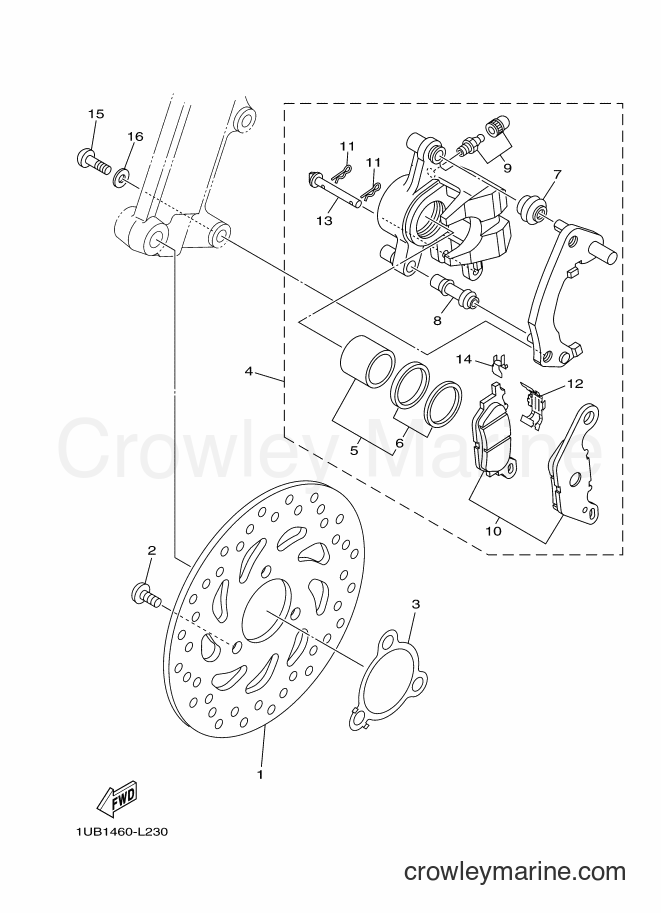

2013 Scooter AF115C - AF115C (1UB5) [010] FRONT BRAKE CALIPER diagram
![Yamaha Motors AF115C (1UB5) [010] - FRONT BRAKE CALIPER](https://cdn.crowleymarine.com/yamaha/dhNkAera.png)
1
Yamaha Motors
DISK, BRAKE (RIGHT)54P-F582U-00
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
-15%
2
Yamaha Motors
Bolt (F1ZR)90111-08815-00
Required: 3
BOLT,HEX. SOCKET BUTTON
$1.36
You save $0.24
3
Yamaha Motors
PLATE, FITTING54P-F518A-00
Required: 1
PLATE, FITTING
Price unavailable
4
Yamaha Motors
CALIPER ASSY (RIGHT)54P-F580U-00
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
5
Yamaha Motors
. PISTON ASSY, CALIPER5P0-F5802-00
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
6
Yamaha Motors
. . CALIPER SEAL KIT5YP-F5803-50
Required: 1
. . CALIPER SEAL KIT
Price unavailable
-15%
7
Yamaha Motors
CALIPER BOOT (1S71)5YP-F5917-00-00
Required: 1
. BOOT, CALIPER
$2.98
You save $0.52
-15%
$3.15
You save $0.56
-15%
9
Yamaha Motors
Bleed Screw Kit15B-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 4C9-W0048-00-00
$18.69
You save $3.30
10
Yamaha Motors
. BRAKE PAD KIT3C1-F5805-10
Required: 1
. BRAKE PAD KIT
Price unavailable
-15%
$0.51
You save $0.09
12
Yamaha Motors
. SUPPORT, PAD5P0-F5919-00
Required: 1
. SUPPORT, PAD
Price unavailable
-15%
$3.06
You save $0.54
14
Yamaha Motors
. CLIP, PAD5YP-F5939-00
Required: 1
. CLIP, PAD
Price unavailable
-15%
$1.10
You save $0.20
-15%
16
Yamaha Motors
92990-10200-0092903-10200-00
Required: 2
WASHER
Supersedes: 92902-10200-00
No longer availableSearch Nationwide Inventory
$3.32
You save $0.58
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
