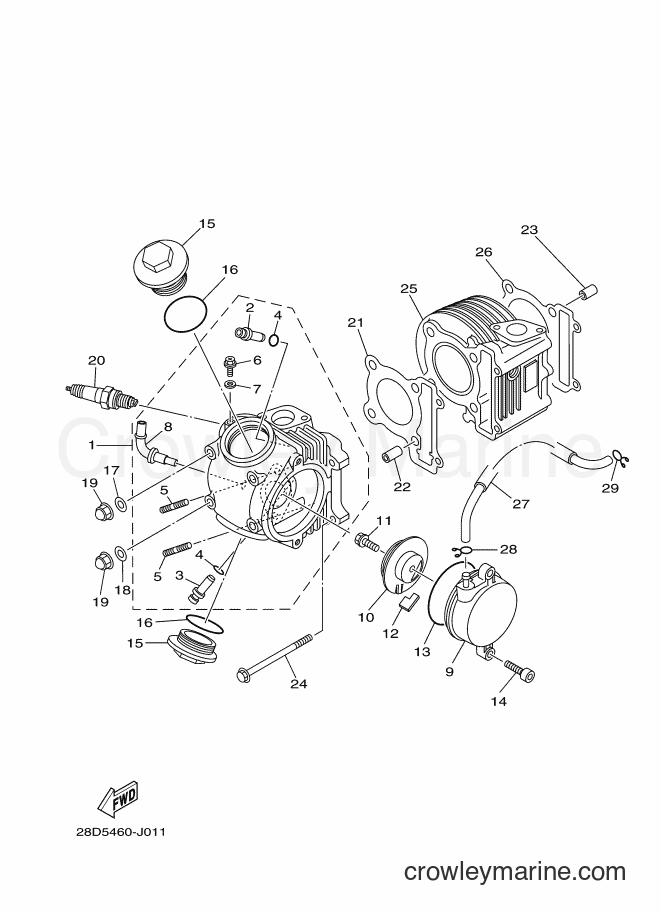

2013 Scooter AF115C - AF115C (1UB4) [010] CYLINDER diagram
![Yamaha Motors AF115C (1UB4) [010] - CYLINDER](https://cdn.crowleymarine.com/yamaha/cMNkyuZX.png)
1
Yamaha Motors
CYLINDER HEAD ASSY14D-E1102-30
Required: 1
CYLINDER HEAD ASSY
Price unavailable
2
Yamaha Motors
. GUIDE, VALVE 15LW-11133-10
Required: 1
. GUIDE, VALVE 1
Price unavailable
3
Yamaha Motors
. GUIDE, VALVE 25LW-11134-10
Required: 1
. GUIDE, VALVE 2
Price unavailable
4
Yamaha Motors
. O-RING93210-09800
Required: 2
. O-RING
Price unavailable
5
Yamaha Motors
. BOLT, STUD90116-08841
Required: 2
. BOLT, STUD
Price unavailable
-15%
6
Yamaha Motors
Hexagon Screw90153-06803-00
Required: 1
. SCREW, HEXAGON
$0.38
You save $0.07
-15%
$7.64
You save $1.35
8
Yamaha Motors
. PIPE 128D-E4871-00
Required: 1
. PIPE 1
Price unavailable
9
Yamaha Motors
COVER, CYLINDER HEAD SIDE 328D-E1185-00
Required: 1
COVER, CYLINDER HEAD SIDE 3
Price unavailable
10
Yamaha Motors
PLATE, BREATHER28D-E1165-00
Required: 1
PLATE, BREATHER
Price unavailable
11
Yamaha Motors
BOLT, BREATHER28D-E3185-00
Required: 1
BOLT, BREATHER
Price unavailable
12
Yamaha Motors
SEAL, LABYRINTH28D-E1155-00
Required: 1
SEAL, LABYRINTH
Price unavailable
-15%
$15.72
You save $2.77
-15%
15
Yamaha Motors
CYLINDER HEAD COVER4ST-E1186-00-00
Required: 2
COVER, CYLINDER HEAD SIDE 2
$8.49
You save $1.50
-20%
16
Yamaha Motors
O-Ring93210-44704-00
Required: 2
O-RING
Supersedes: 93210-448G4-00
In stock
5+ in stock
$6.79
You save $1.70
-15%
17
Yamaha Motors
Plate Washer90201-080L7-00
Required: 2
WASHER, PLATE
Supersedes: 90201-08609-00
$3.44
You save $0.61
19
Yamaha Motors
NUT, CROWN90176-08805
Required: 4
NUT, CROWN
Price unavailable
20
Yamaha Motors
PLUG SPARK (NGK C7HSA)94700-00828
Required: 1
PLUG SPARK (NGK C7HSA)
Price unavailable
20
Yamaha Motors
PLUG, SPARK (DENSO U22FS-U)94700-00886
Required: 1
PLUG, SPARK (DENSO U22FS-U)
Price unavailable
21
Yamaha Motors
GASKET, CYLINDER HEAD 15LW-E1181-00
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
-15%
$2.51
You save $0.44
-15%
$2.51
You save $0.44
-15%
$1.70
You save $0.30
25
Yamaha Motors
CYLINDER51S-E1310-20
Required: 1
CYLINDER
Price unavailable
26
Yamaha Motors
GASKET, CYLINDER5LW-E1351-00
Required: 1
GASKET, CYLINDER
Price unavailable
27
Yamaha Motors
HOSE14D-E4987-00
Required: 1
HOSE
Price unavailable
-15%
28
Yamaha Motors
Clip90467-090A2-00
Required: 1
CLIP
Supersedes: 90467-09006-00
In stock
Only 1 remaining
$4.04
You save $0.71
-15%
29
Yamaha Motors
Clip90467-090A2-00
Required: 1
CLIP
Supersedes: 90467-09006-00
In stock
Only 1 remaining
$4.04
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
