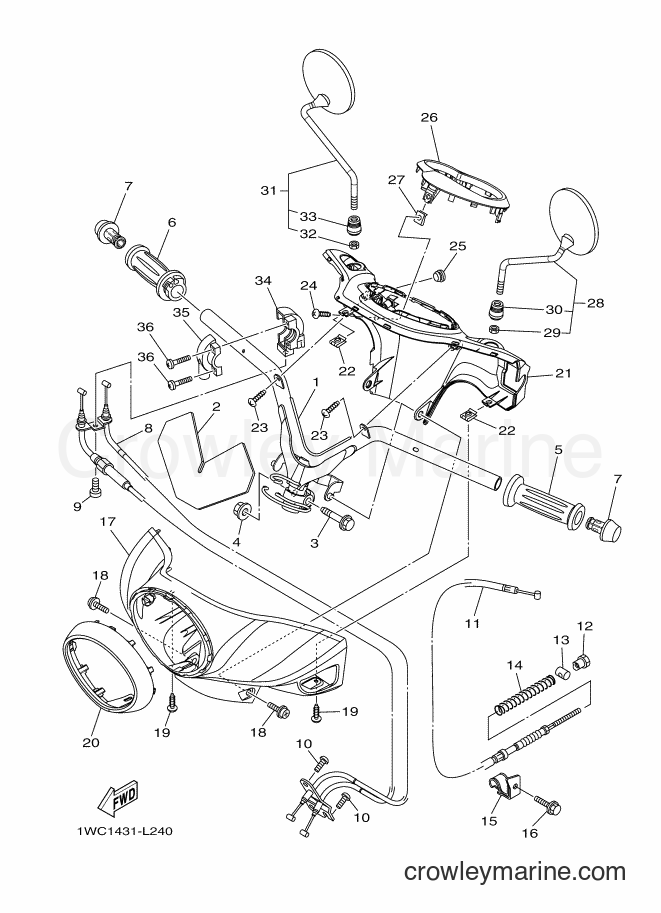

2012 Scooter XC115S - XC115S (1WC1) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors XC115S (1WC1) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/37mlElnY.png)
1
Yamaha Motors
HANDLE COMP.1WC-F6110-00
Required: 1
HANDLE COMP.
Price unavailable
2
Yamaha Motors
DAMPER1WC-F6113-00
Required: 1
DAMPER
Price unavailable
-15%
$8.07
You save $1.42
4
Yamaha Motors
NUT, SELF-LOCKING90185-10808
Required: 1
NUT, SELF-LOCKING
Price unavailable
5
Yamaha Motors
GRIP (GYS2)4D0-F6241-40
Required: 1
GRIP (GYS2)
Price unavailable
6
Yamaha Motors
GRIP ASSY (GYS2)1WC-F6240-00
Required: 1
GRIP ASSY (GYS2)
Price unavailable
7
Yamaha Motors
END, GRIP (0660,SM1)1WC-F6246-00-P0
Required: 2
END, GRIP (0660,SM1)
Price unavailable
8
Yamaha Motors
THROTTLE CABLE ASSY1DR-F6301-00
Required: 1
THROTTLE CABLE ASSY
Price unavailable
-15%
9
Yamaha Motors
SCREW (4JY)92017-06010-00
Required: 1
BOLT, BUTTON HEAD
$4.67
You save $0.82
-15%
10
Yamaha Motors
Button Bolt92017-05012-00
Required: 2
BOLT, BUTTON HEAD
$3.27
You save $0.58
11
Yamaha Motors
CABLE, BRAKE52B-F6351-00
Required: 1
CABLE, BRAKE
Price unavailable
-15%
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
14
Yamaha Motors
SPRING, COMPRESSION90501-160A0
Required: 1
SPRING, COMPRESSION
Price unavailable
15
Yamaha Motors
HOLDER 252B-F639F-01
Required: 1
HOLDER 2
Price unavailable
-50%
16
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$1.40
You save $1.40
17
Yamaha Motors
COVER,HAND,UPPER1(0903,SMX)1WC-F6143-00-P0
Required: 1
COVER,HAND,UPPER1(0903,SMX)
Price unavailable
18
Yamaha Motors
SCREW, WITH WASHER90159-06859
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
19
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
20
Yamaha Motors
RIM, HEADLIGHT1WC-F835A-00
Required: 1
RIM, HEADLIGHT
Price unavailable
21
Yamaha Motors
COVER,HAND,UPPER 2(0903,SMX)1WC-F6145-00-P0
Required: 1
COVER,HAND,UPPER 2(0903,SMX)
Price unavailable
-50%
22
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-15%
23
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
25
Yamaha Motors
PLUG, BLIND5HV-F6199-00
Required: 1
PLUG, BLIND
Price unavailable
26
Yamaha Motors
COVER, METER (0660,SMX)1WC-H3559-00-P0
Required: 1
COVER, METER (0660,SMX)
Price unavailable
-50%
27
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
28
Yamaha Motors
REAR VIEW MIRROR ASSY (LEFT)4D0-F6280-00
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
-15%
29
Yamaha Motors
Nut95317-10600-00
Required: 1
. NUT
Supersedes: 95307-10600-00
No longer availableSearch Nationwide Inventory
$3.44
You save $0.61
30
Yamaha Motors
. BOOT 15MY-F629T-00
Required: 1
. BOOT 1
Price unavailable
31
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)4D0-F6290-00
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
32
Yamaha Motors
. NUT90170-10800
Required: 1
. NUT
Price unavailable
33
Yamaha Motors
. BOOT 15MY-F629T-00
Required: 1
. BOOT 1
Price unavailable
34
Yamaha Motors
CAP, GRIP UPPER1DR-F6281-00
Required: 1
CAP, GRIP UPPER
Price unavailable
35
Yamaha Motors
CAP, GRIP UNDER1DR-F6282-00
Required: 1
CAP, GRIP UNDER
Price unavailable
36
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-05020-00
$3.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
