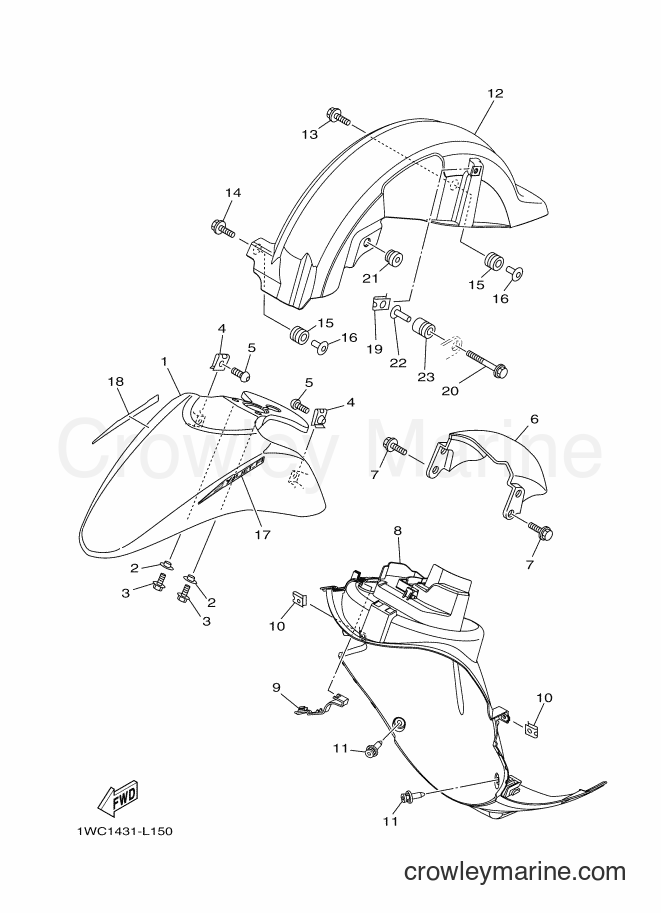

2012 Scooter XC115S - XC115S (1WC1) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1WC1) [010] - FENDER
Change View:
FENDER, FRONT (0903,SMX)
1
Yamaha Motors
FENDER, FRONT (0903,SMX)1WC-F1511-00-P0
Required: 1
FENDER, FRONT (0903,SMX)
Price unavailable
COLLAR
2
Yamaha Motors
COLLAR90387-06804
Required: 3
COLLAR
Price unavailable
-15%
Screw (3GG)
5
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
FENDER, FRONT 2
6
Yamaha Motors
FENDER, FRONT 252B-F1556-00
Required: 1
FENDER, FRONT 2
Price unavailable
FENDER, INNER
8
Yamaha Motors
FENDER, INNER1WC-F1552-00
Required: 1
FENDER, INNER
Price unavailable
PLATE 1
9
Yamaha Motors
PLATE 11WC-F1523-00
Required: 1
PLATE 1
Price unavailable
-15%
RIVET
11
Yamaha Motors
RIVET90269-06812-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
FENDER, REAR
12
Yamaha Motors
FENDER, REAR52B-F1611-00
Required: 1
FENDER, REAR
Price unavailable
GROMMET
15
Yamaha Motors
GROMMET90480-15805
Required: 2
GROMMET
Price unavailable
COLLAR
16
Yamaha Motors
COLLAR90387-068J0
Required: 2
COLLAR
Price unavailable
GRAPHIC 1
17
Yamaha Motors
GRAPHIC 11WC-F1569-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
18
Yamaha Motors
GRAPHIC 21WC-F1579-00
Required: 1
GRAPHIC 2
Price unavailable
BOLT, WITH WASHER
20
Yamaha Motors
BOLT, WITH WASHER90119-06888
Required: 1
BOLT, WITH WASHER
Price unavailable
GROMMET
21
Yamaha Motors
GROMMET90480-13819
Required: 1
GROMMET
Price unavailable
COLLAR
22
Yamaha Motors
COLLAR90387-068H7
Required: 1
COLLAR
Price unavailable
GROMMET
23
Yamaha Motors
GROMMET90480-12814
Required: 1
GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
