2012 Scooter XC100N - XC100N (1DW2) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

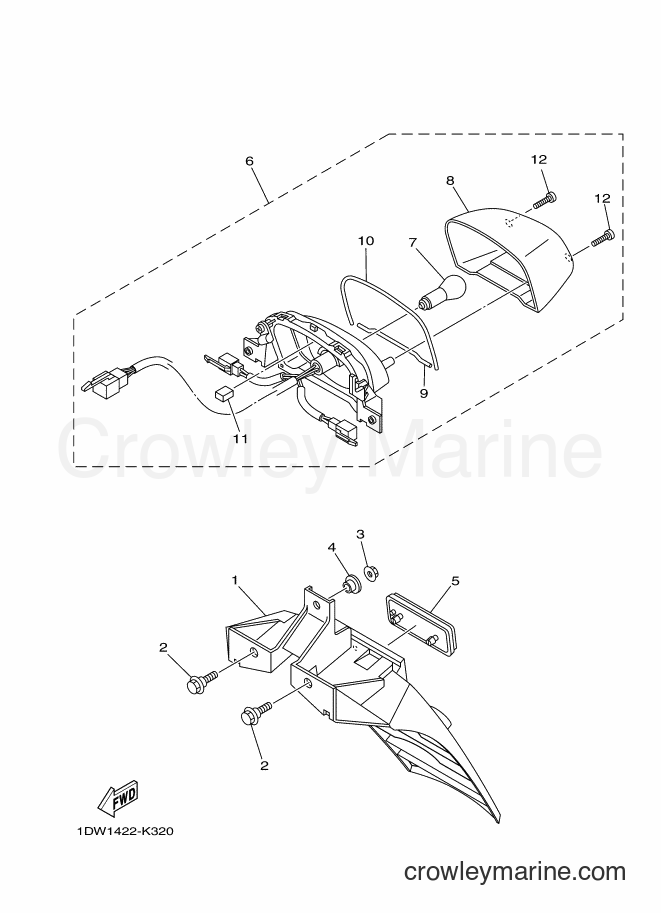

Yamaha Motors XC100N (1DW2) [010] - TAILLIGHT

Change View:

Yamaha Motors

GUARD, MUD1DW-F1629-00

Required: 1

GUARD, MUD

Price unavailable

-15%

Yamaha Motors

BOLT90109-06043-00

Required: 2

BOLT

~~$3.00~~

$2.55

You save $0.45

More details

-15%

Yamaha Motors

Flange Nut95707-06500-00

Required: 1

NUT, FLANGE

~~$1.00~~

$0.85

You save $0.15

-50%

COLLAR

Supersedes: 90387-068S1-00

In stock

Only 4 remaining

~~$9.49~~

$4.75

You save $4.75

More details

Yamaha Motors

REAR REFLECTOR ASSY1DW-H5130-00

Required: 1

REAR REFLECTOR ASSY

Price unavailable

Yamaha Motors

TAILLIGHT ASSY1DW-H4700-00

Required: 1

TAILLIGHT ASSY

Price unavailable

Yamaha Motors

. BULB (12V 18/5W)1DW-H4714-00

Required: 1

. BULB (12V 18/5W)

Price unavailable

Yamaha Motors

. LENS, TAILLIGHT1DW-H4721-00

Required: 1

. LENS, TAILLIGHT

Price unavailable

Yamaha Motors

. GASKET, TAIL LENS1DW-H4723-00

Required: 1

. GASKET, TAIL LENS

Price unavailable

Yamaha Motors

. GASKET, TAIL LENS1DW-H4723-10

Required: 1

. GASKET, TAIL LENS

Price unavailable

Yamaha Motors

. CUSHION1DW-F386J-00

Required: 1

. CUSHION

Price unavailable

Yamaha Motors

. SCREW, LENS FITTING1DW-H4724-00

Required: 2

. SCREW, LENS FITTING

Price unavailable
