All diagrams for this model

2012 Scooter XC100N - XC100N (1DW2) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

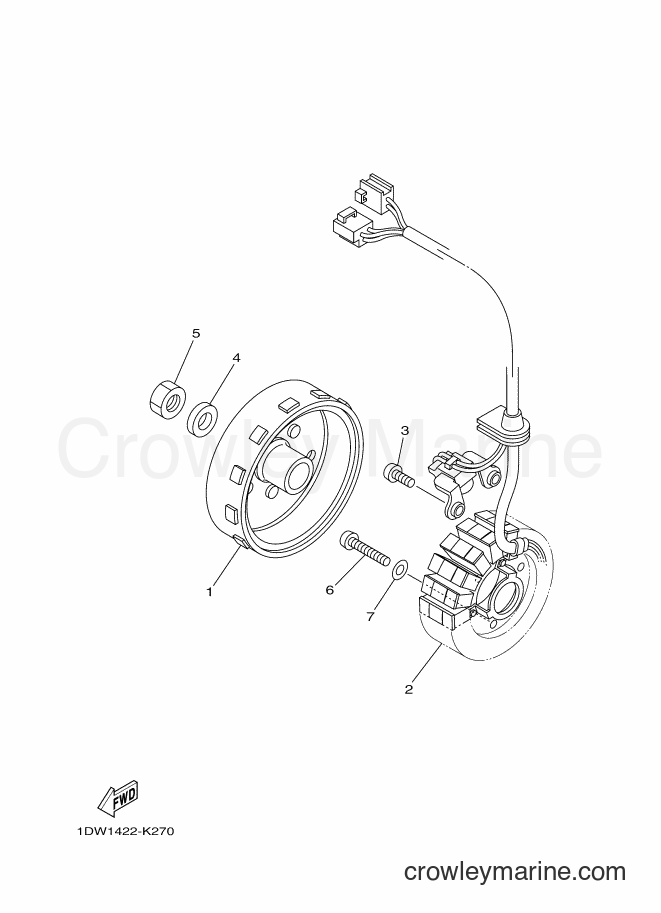

Yamaha Motors XC100N (1DW2) [010] - GENERATOR
Change View:
ROTOR ASSY
1
Yamaha Motors
ROTOR ASSY4D2-H1450-00
Required: 1
ROTOR ASSY
Price unavailable
STATOR ASSY
2
Yamaha Motors
STATOR ASSY4D2-H1410-00
Required: 1
STATOR ASSY
Price unavailable
-15%
Plain Washer
4
Yamaha Motors
Plain Washer90201-123L6-00
Required: 1
WASHER, PLATE
Supersedes: 90201-122L8-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
-15%
Hexagon Nut
5
Yamaha Motors
Hexagon Nut90170-12181-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
-15%
Plate Washer
7
Yamaha Motors
Plate Washer92907-06600-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
