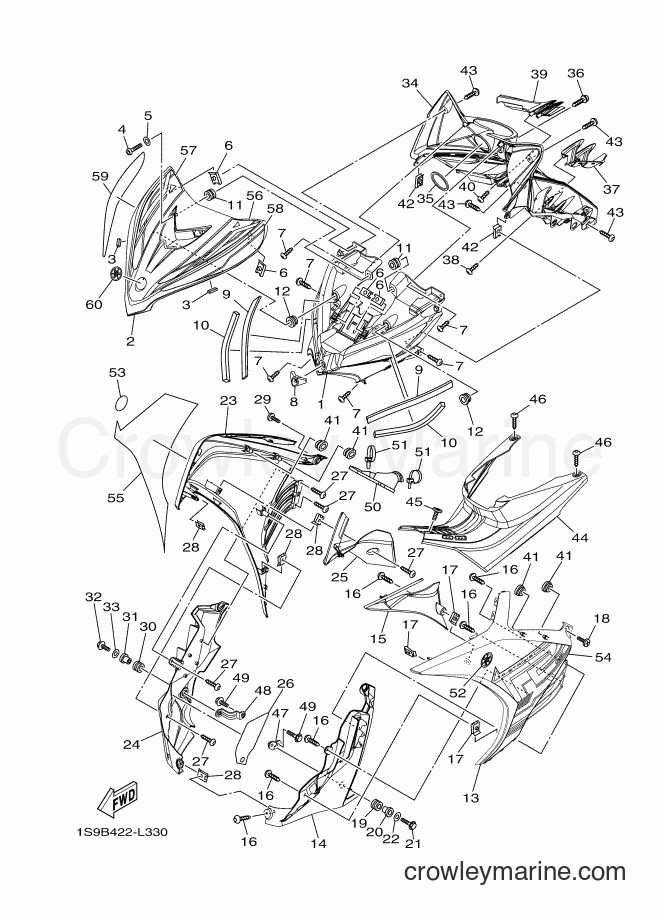

2012 Scooter T135SEC - T135SEC (1S9B) [010] LEG SHIELD diagram
![Yamaha Motors T135SEC (1S9B) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/YqvSabGu.png)
1
Yamaha Motors
PANEL, FRONT55P-F3391-00
Required: 1
PANEL, FRONT
Price unavailable
2
Yamaha Motors
MOLE 155P-F8345-00-P0
Required: 1
MOLE 1
Price unavailable
3
Yamaha Motors
SEAL 355P-F844E-00
Required: 2
SEAL 3
Price unavailable
-15%
4
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 2
BOLT, BUTTON HEAD
$2.25
You save $0.40
5
Yamaha Motors
WASHER, PLATE90201-06822
Required: 2
WASHER, PLATE
Price unavailable
6
Yamaha Motors
NUT, SPRING90183-05811
Required: 4
NUT, SPRING
Price unavailable
7
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 6
SCREW, ROUND TAPPING
Price unavailable
8
Yamaha Motors
GROMMET55P-F8187-00
Required: 1
GROMMET
Price unavailable
9
Yamaha Motors
DAMPER, PLATE90520-05806
Required: 2
DAMPER, PLATE
Price unavailable
10
Yamaha Motors
DAMPER, PLATE90520-10810
Required: 2
DAMPER, PLATE
Price unavailable
11
Yamaha Motors
GROMMET90480-13807
Required: 2
GROMMET
Price unavailable
12
Yamaha Motors
GROMMET90480-13867
Required: 2
GROMMET
Price unavailable
13
Yamaha Motors
LEG SHIELD 155P-F8311-00-P5
Required: 1
LEG SHIELD 1
Price unavailable
14
Yamaha Motors
BODY, FRONT LOWER 155P-F835J-00
Required: 1
BODY, FRONT LOWER 1
Price unavailable
15
Yamaha Motors
GUIDE, AIR 155P-F137U-00
Required: 1
GUIDE, AIR 1
Price unavailable
16
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 6
SCREW, ROUND TAPPING
Price unavailable
17
Yamaha Motors
NUT, SPRING90183-05811
Required: 3
NUT, SPRING
Price unavailable
-15%
18
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
$8.07
You save $1.42
-15%
19
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
20
Yamaha Motors
COLLAR90387-09801
Required: 1
COLLAR
Price unavailable
-50%
21
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$1.75
You save $1.75
-15%
22
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
$3.02
You save $0.53
23
Yamaha Motors
LEG SHIELD 255P-F8312-00-P5
Required: 1
LEG SHIELD 2
Price unavailable
24
Yamaha Motors
BODY, FRONT UNDER 255P-F835K-00
Required: 1
BODY, FRONT UNDER 2
Price unavailable
25
Yamaha Motors
GUIDE, AIR 255P-F137V-00
Required: 1
GUIDE, AIR 2
Price unavailable
26
Yamaha Motors
SEAL55P-F8307-00
Required: 1
SEAL
Price unavailable
27
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 5
SCREW, ROUND TAPPING
Price unavailable
28
Yamaha Motors
NUT, SPRING90183-05811
Required: 4
NUT, SPRING
Price unavailable
-15%
29
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
$8.07
You save $1.42
-15%
30
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
31
Yamaha Motors
COLLAR90387-09801
Required: 1
COLLAR
Price unavailable
-50%
32
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$1.75
You save $1.75
-15%
33
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
$3.02
You save $0.53
34
Yamaha Motors
PANEL, INNER 155P-F836K-00
Required: 1
PANEL, INNER 1
Price unavailable
35
Yamaha Motors
CAP, SWITCH55P-H2552-00
Required: 1
CAP, SWITCH
Price unavailable
36
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
37
Yamaha Motors
FIN 155P-F8273-00
Required: 1
FIN 1
Price unavailable
-15%
38
Yamaha Motors
Round Tapping Screw90160-05808-00
Required: 2
SCREW, ROUND TAPPING
$0.47
You save $0.08
39
Yamaha Motors
FIN 255P-F8274-00
Required: 1
FIN 2
Price unavailable
-15%
40
Yamaha Motors
Round Tapping Screw90160-05808-00
Required: 2
SCREW, ROUND TAPPING
$0.47
You save $0.08
41
Yamaha Motors
GROMMET90480-01813
Required: 4
GROMMET
Price unavailable
42
Yamaha Motors
NUT, SPRING90183-05811
Required: 2
NUT, SPRING
Price unavailable
43
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 4
SCREW, ROUND TAPPING
Price unavailable
44
Yamaha Motors
COVER 255P-F842N-00
Required: 1
COVER 2
Price unavailable
-15%
45
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
$8.07
You save $1.42
46
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
47
Yamaha Motors
STAY 11S9-F8321-10
Required: 1
STAY 1
Price unavailable
48
Yamaha Motors
STAY 21S9-F8322-10
Required: 1
STAY 2
Price unavailable
-50%
49
Yamaha Motors
Flange Bolt95817-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$1.75
You save $1.75
50
Yamaha Motors
PLATE1S9-F8336-00
Required: 1
PLATE
Price unavailable
-15%
$1.57
You save $0.28
52
Yamaha Motors
TUNING FORK MARK1S9-F836D-10
Required: 1
TUNING FORK MARK
Price unavailable
53
Yamaha Motors
TUNING FORK MARK1S9-F836D-10
Required: 1
TUNING FORK MARK
Price unavailable
54
Yamaha Motors
GRAPHIC, 121S9-F83GF-00
Required: 1
GRAPHIC, 12
Price unavailable
55
Yamaha Motors
GRAPHIC, 131S9-F83GG-00
Required: 1
GRAPHIC, 13
Price unavailable
56
Yamaha Motors
GRAPHIC, 141S9-F83GH-00
Required: 1
GRAPHIC, 14
Price unavailable
57
Yamaha Motors
GRAPHIC 31S9-F83G6-00
Required: 1
GRAPHIC 3
Price unavailable
58
Yamaha Motors
GRAPHIC, 41S9-F83G7-00
Required: 1
GRAPHIC, 4
Price unavailable
59
Yamaha Motors
GRAPHIC, 51S9-F83G8-00
Required: 1
GRAPHIC, 5
Price unavailable
60
Yamaha Motors
TUNING FORK MARK16S-F175C-00
Required: 1
TUNING FORK MARK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
