2012 Scooter T115SEC - T115SEC (31C8) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

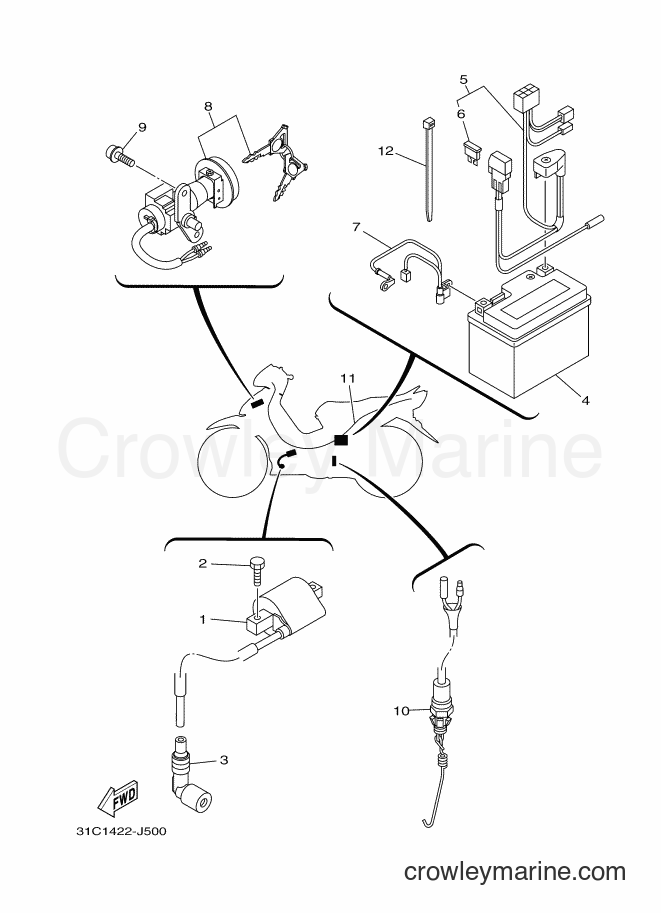

Yamaha Motors T115SEC (31C8) [010] - ELECTRICAL 1
Change View:
IGNITION COIL ASSY
1
Yamaha Motors
IGNITION COIL ASSY31C-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
PLUG CAP ASSY
3
Yamaha Motors
PLUG CAP ASSY5TP-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
BATTERY ASSY (GS GTZ5S)
4
Yamaha Motors
BATTERY ASSY (GS GTZ5S)4D1-H2100-00
Required: 1
BATTERY ASSY (GS GTZ5S)
Price unavailable
WIRE, PLUS LEAD
5
Yamaha Motors
WIRE, PLUS LEAD31C-H2115-10
Required: 1
WIRE, PLUS LEAD
Price unavailable
WIRE, PLUS LEAD
5
Yamaha Motors
WIRE, PLUS LEAD31C-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
. FUSE (7.5A)
6
Yamaha Motors
. FUSE (7.5A)15C-H2151-00
Required: 1
. FUSE (7.5A)
Price unavailable
WIRE, MINUS LEAD
7
Yamaha Motors
WIRE, MINUS LEAD31C-H2116-10
Required: 1
WIRE, MINUS LEAD
Price unavailable
WIRE, MINUS LEAD
7
Yamaha Motors
WIRE, MINUS LEAD31C-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
MAIN SWITCH COMP.
8
Yamaha Motors
MAIN SWITCH COMP.31C-H252E-00
Required: 1
MAIN SWITCH COMP.
Price unavailable
BOLT, HEXAGON SOCKET HEAD
9
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06858
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
STOP SWITCH ASSY
10
Yamaha Motors
STOP SWITCH ASSY31C-H2530-00
Required: 1
STOP SWITCH ASSY
Price unavailable
WIRE HARNESS ASSY
11
Yamaha Motors
WIRE HARNESS ASSY31C-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
11
Yamaha Motors
WIRE HARNESS ASSY31C-H2590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
-15%
Clamp
12
Yamaha Motors
Clamp90464-50800-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
