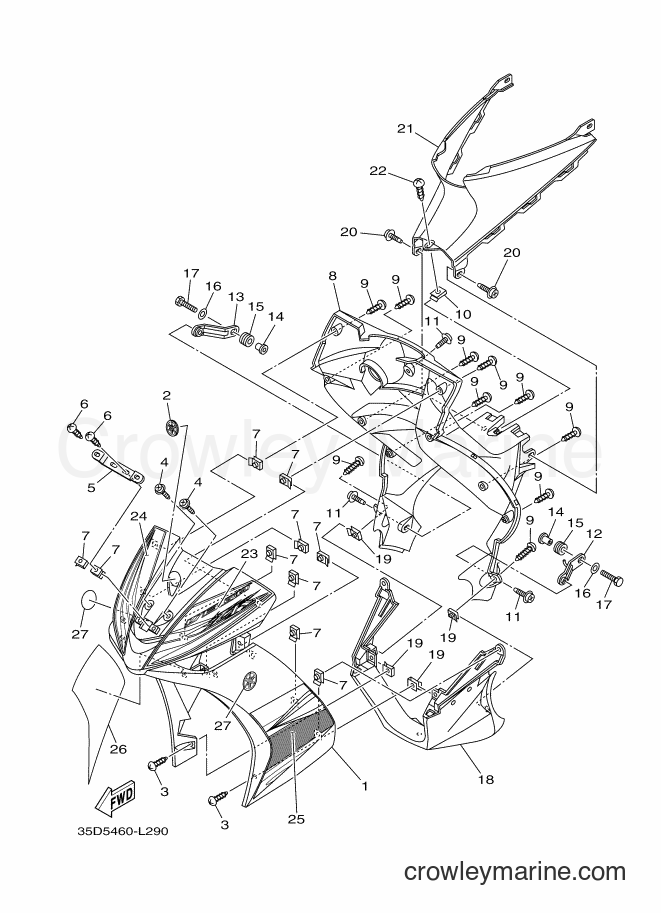

2012 Scooter T115LE - T115LE (35D5) [010] LEG SHIELD diagram
![Yamaha Motors T115LE (35D5) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/V8ihw3dQ.png)
1
Yamaha Motors
LEG SHIELD 15D9-F8311-00-P0
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
EMBLEM, 15TL-F313B-00
Required: 1
EMBLEM, 1
Price unavailable
-15%
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
4
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
5
Yamaha Motors
BRACKET, NUMBER PLATE5TP-H454E-01
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
-15%
6
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
-50%
7
Yamaha Motors
Spring Nut90183-05042-00
Required: 10
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
8
Yamaha Motors
LEG SHIELD 25D9-F8312-00
Required: 1
LEG SHIELD 2
Price unavailable
-15%
9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 10
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
11
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 3
SCREW, WITH WASHER
Price unavailable
12
Yamaha Motors
STAY 15D9-F8321-00
Required: 1
STAY 1
Price unavailable
13
Yamaha Motors
STAY 25D9-F8322-10
Required: 1
STAY 2
Price unavailable
14
Yamaha Motors
COLLAR90387-06841
Required: 2
COLLAR
Price unavailable
15
Yamaha Motors
GROMMET90480-13815
Required: 2
GROMMET
Price unavailable
-15%
16
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
$3.02
You save $0.53
-15%
$3.45
You save $0.61
18
Yamaha Motors
COVER, UNDER5D9-F8385-00
Required: 1
COVER, UNDER
Price unavailable
-50%
19
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
20
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
21
Yamaha Motors
COVER 25D9-F842N-00
Required: 1
COVER 2
Price unavailable
-15%
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
23
Yamaha Motors
GRAPHIC, 135D9-F832L-E0
Required: 1
GRAPHIC, 13
Price unavailable
24
Yamaha Motors
GRAPHIC, 145D9-F831Y-E0
Required: 1
GRAPHIC, 14
Price unavailable
25
Yamaha Motors
GRAPHIC, 155D9-F832B-E0
Required: 1
GRAPHIC, 15
Price unavailable
26
Yamaha Motors
GRAPHIC, 165D9-F832C-E0
Required: 1
GRAPHIC, 16
Price unavailable
27
Yamaha Motors
TUNING FORK MARK31B-F836D-00
Required: 2
TUNING FORK MARK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
