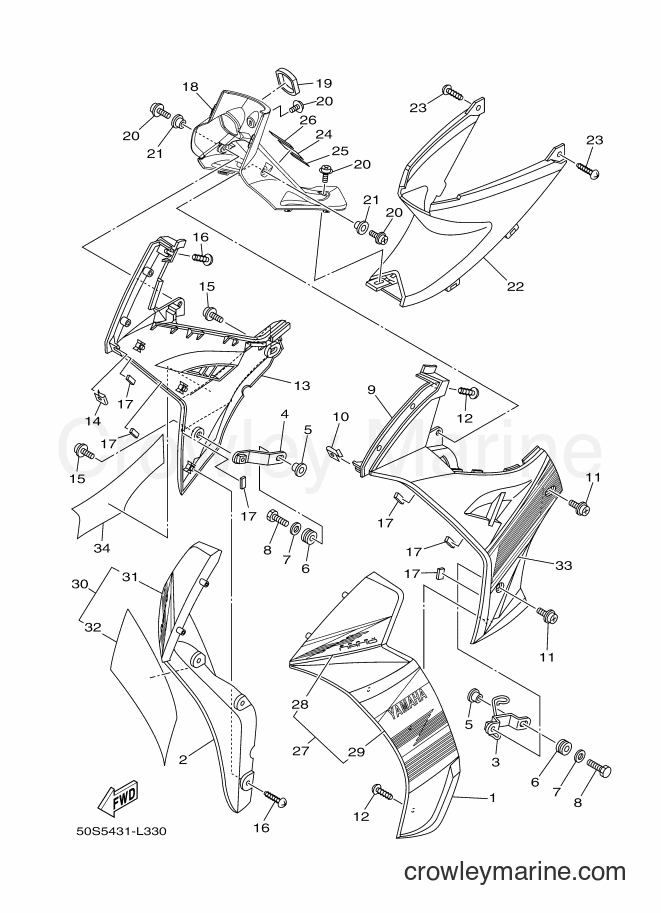

2012 Scooter T110LSE - T110LSE (50S6) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

Yamaha Motors T110LSE (50S6) [010] - LEG SHIELD

Change View:

LEG SHIELD 1 (0918,DRMK)

1

Yamaha Motors

LEG SHIELD 1 (0918,DRMK)50P-F8311-00-P8

Required: 1

LEG SHIELD 1 (0918,DRMK)

Price unavailable

LEG SHIELD 2 (0918,DRMK)

2

Yamaha Motors

LEG SHIELD 2 (0918,DRMK)50P-F8312-00-P8

Required: 1

LEG SHIELD 2 (0918,DRMK)

Price unavailable

STAY 1

3

Yamaha Motors

STAY 150P-F8321-00

Required: 1

STAY 1

Price unavailable

STAY 2

4

Yamaha Motors

STAY 250P-F8322-10

Required: 1

STAY 2

Price unavailable

COLLAR

5

Yamaha Motors

COLLAR90387-06814

Required: 2

COLLAR

Price unavailable

-15%

Grommet

Grommet90480-13018-00

GROMMET

~~$9.49~~

$8.07

You save $1.42

-15%

Plate Washer

Plate Washer90201-06557-00

WASHER, PLATE

~~$3.55~~

$3.02

You save $0.53

-15%

Hexagon Bolt

Hexagon Bolt97017-06020-00

BOLT

Supersedes: 97007-06020-00

~~$4.06~~

$3.45

You save $0.61

COVER, UNDER (0752,LYNM9)

9

Yamaha Motors

COVER, UNDER (0752,LYNM9)50P-F8385-00-P6

Required: 1

COVER, UNDER (0752,LYNM9)

Price unavailable

-50%

Spring Nut

Spring Nut90183-05042-00

NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.50

You save $0.50

SCREW, WITH WASHER

11

Yamaha Motors

SCREW, WITH WASHER90159-06838

Required: 2

SCREW, WITH WASHER

Price unavailable

-15%

Truss Screw

Truss Screw97707-50012-00

SCREW, TRUSS HEAD TAPPING

~~$4.63~~

$3.94

You save $0.69

COVER, UNDER 2 (0752,LYNM9)

13

Yamaha Motors

COVER, UNDER 2 (0752,LYNM9)50P-F8395-10-P0

Required: 1

COVER, UNDER 2 (0752,LYNM9)

Price unavailable

-50%

Spring Nut

Spring Nut90183-05042-00

NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.50

You save $0.50

SCREW, WITH WASHER

15

Yamaha Motors

SCREW, WITH WASHER90159-06838

Required: 2

SCREW, WITH WASHER

Price unavailable

-15%

Truss Screw

Truss Screw97707-50012-00

SCREW, TRUSS HEAD TAPPING

~~$4.63~~

$3.94

You save $0.69

DAMPER

17

Yamaha Motors

DAMPER5LN-F8371-00

Required: 6

DAMPER

Price unavailable

COVER 1

18

Yamaha Motors

COVER 150P-F842M-10

Required: 1

COVER 1

Price unavailable

CAP, SWITCH

19

Yamaha Motors

CAP, SWITCH2P0-H2552-00

Required: 1

CAP, SWITCH

Price unavailable

SCREW, WITH WASHER

20

Yamaha Motors

SCREW, WITH WASHER90159-06838

Required: 4

SCREW, WITH WASHER

Price unavailable

COLLAR

21

Yamaha Motors

COLLAR90387-06846

Required: 2

COLLAR

Price unavailable

COVER 2

22

Yamaha Motors

COVER 250P-F842N-00

Required: 1

COVER 2

Price unavailable

-15%

Truss Head Tapping Screw

Truss Head Tapping Screw97707-50016-00

SCREW, TRUSS HEAD TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

LABEL, CAUTION

24

Yamaha Motors

LABEL, CAUTION50P-F8446-00

Required: 1

LABEL, CAUTION

Price unavailable

LABEL, SAFETY

25

Yamaha Motors

LABEL, SAFETY5YW-F1659-00

Required: 1

LABEL, SAFETY

Price unavailable

LABEL, WARNING

26

Yamaha Motors

LABEL, WARNING50P-F1568-U0

Required: 1

LABEL, WARNING

Price unavailable

GRAPHIC SET, LEG SHIELD 1

27

Yamaha Motors

GRAPHIC SET, LEG SHIELD 150P-WF83L-C0

Required: 1

GRAPHIC SET, LEG SHIELD 1

Price unavailable

. GRAPHIC 5

28

Yamaha Motors

. GRAPHIC 550P-F8398-00

Required: 1

. GRAPHIC 5

Price unavailable

. GRAPHIC 7

29

Yamaha Motors

. GRAPHIC 750P-F839A-00

Required: 1

. GRAPHIC 7

Price unavailable

GRAPHIC SET, LEG SHIELD 2

30

Yamaha Motors

GRAPHIC SET, LEG SHIELD 250P-WF83N-60

Required: 1

GRAPHIC SET, LEG SHIELD 2

Price unavailable

. GRAPHIC 6

31

Yamaha Motors

. GRAPHIC 650P-F8399-00

Required: 1

. GRAPHIC 6

Price unavailable

. GRAPHIC 8

32

Yamaha Motors

. GRAPHIC 850P-F839E-00

Required: 1

. GRAPHIC 8

Price unavailable

33

Yamaha Motors

GRAPHIC 950P-F839F-00

Required: 1

GRAPHIC 9

Price unavailable

34

Yamaha Motors

GRAPHIC 1050P-F839G-00

Required: 1

GRAPHIC 10

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
