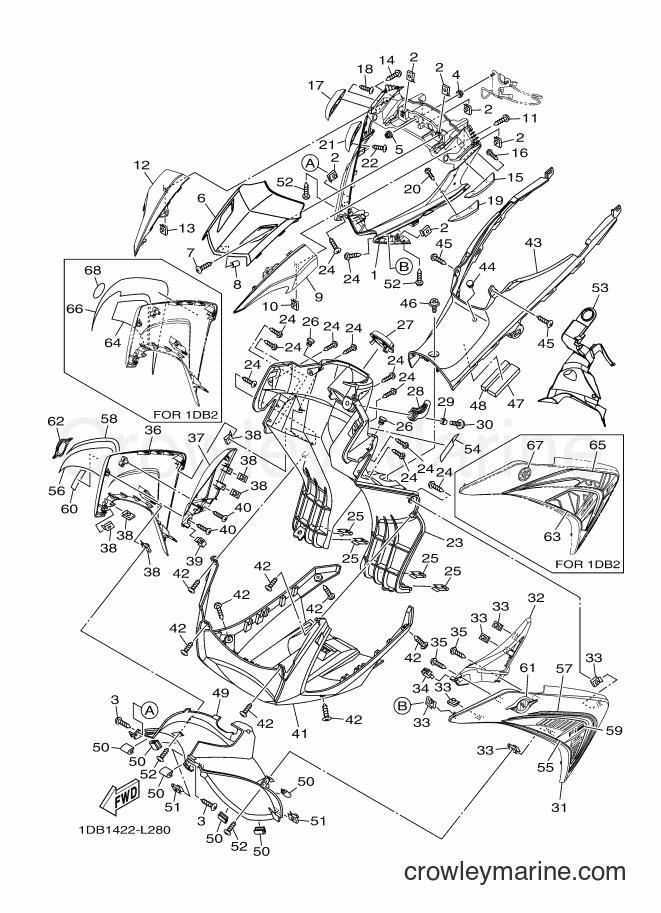

2012 Scooter AT125FC - AT125FC (1DB1) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (1DB1) [010] - LEG SHIELD
Change View:
LEG SHIELD 1
1
Yamaha Motors
LEG SHIELD 11DB-F8311-00-P4
Required: 1
LEG SHIELD 1
Price unavailable
LEG SHIELD 1
1
Yamaha Motors
LEG SHIELD 11DB-F8311-00-P0
Required: 1
LEG SHIELD 1
Price unavailable
-15%
COLLAR
4
Yamaha Motors
COLLAR90387-09805-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
-15%
SPECIAL SHAPE NUT
5
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 2
NUT
Supersedes: 90179-06841-00
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
COVER, HEADLIGHT
6
Yamaha Motors
COVER, HEADLIGHT1DB-F838E-00-P0
Required: 1
COVER, HEADLIGHT
Price unavailable
COVER, HEADLIGHT
6
Yamaha Motors
COVER, HEADLIGHT1DB-F838E-00-P3
Required: 1
COVER, HEADLIGHT
Price unavailable
DAMPER
8
Yamaha Motors
DAMPER1DB-F113B-00
Required: 1
DAMPER
Price unavailable
COVER, HEADLIGHT 1
9
Yamaha Motors
COVER, HEADLIGHT 11DB-F838D-00-P3
Required: 1
COVER, HEADLIGHT 1
Price unavailable
COVER, HEADLIGHT 1
9
Yamaha Motors
COVER, HEADLIGHT 11DB-F838D-00-P0
Required: 1
COVER, HEADLIGHT 1
Price unavailable
COVER, HEADLIGHT 2
12
Yamaha Motors
COVER, HEADLIGHT 21DB-F838S-00-P3
Required: 1
COVER, HEADLIGHT 2
Price unavailable
COVER, HEADLIGHT 2
12
Yamaha Motors
COVER, HEADLIGHT 21DB-F838S-00-P0
Required: 1
COVER, HEADLIGHT 2
Price unavailable
FIN 1
15
Yamaha Motors
FIN 11DB-F8273-00-P3
Required: 1
FIN 1
Price unavailable
FIN 1
15
Yamaha Motors
FIN 11DB-F8273-00-P0
Required: 1
FIN 1
Price unavailable
FIN 2
17
Yamaha Motors
FIN 21DB-F8274-00-P3
Required: 1
FIN 2
Price unavailable
FIN 2
17
Yamaha Motors
FIN 21DB-F8274-00-P0
Required: 1
FIN 2
Price unavailable
FIN, 3
19
Yamaha Motors
FIN, 31DB-F8279-00-P0
Required: 1
FIN, 3
Price unavailable
FIN, 3
19
Yamaha Motors
FIN, 31DB-F8279-00-P3
Required: 1
FIN, 3
Price unavailable
FIN, 4
21
Yamaha Motors
FIN, 41DB-F827A-00-P3
Required: 1
FIN, 4
Price unavailable
FIN, 4
21
Yamaha Motors
FIN, 41DB-F827A-00-P0
Required: 1
FIN, 4
Price unavailable
LEG SHIELD ASSY
23
Yamaha Motors
LEG SHIELD ASSY5P1-F8300-01-PC
Required: 1
LEG SHIELD ASSY
Price unavailable
LEG SHIELD ASSY
23
Yamaha Motors
LEG SHIELD ASSY5P1-F8300-01-P7
Required: 1
LEG SHIELD ASSY
Price unavailable
PLUG
26
Yamaha Motors
PLUG90338-07800
Required: 2
PLUG
Price unavailable
COVER
27
Yamaha Motors
COVER1DB-F8365-00
Required: 1
COVER
Price unavailable
HOOK 1
28
Yamaha Motors
HOOK 15VD-F8257-10
Required: 1
HOOK 1
Price unavailable
COLLAR
29
Yamaha Motors
COLLAR5P1-F8373-00
Required: 1
COLLAR
Price unavailable
BOLT,HEX. SOCKET BUTTON
30
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06815
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
PANEL 1
31
Yamaha Motors
PANEL 11DB-F835U-00-P3
Required: 1
PANEL 1
Price unavailable
PANEL 1
31
Yamaha Motors
PANEL 11DB-F835U-00-P0
Required: 1
PANEL 1
Price unavailable
PANEL 1
31
Yamaha Motors
PANEL 11DB-F835U-00-P1
Required: 1
PANEL 1
Price unavailable
COVER, FLASHER 1
32
Yamaha Motors
COVER, FLASHER 11DB-F83D3-00-P0
Required: 1
COVER, FLASHER 1
Price unavailable
COVER, FLASHER 1
32
Yamaha Motors
COVER, FLASHER 11DB-F83D3-00-P4
Required: 1
COVER, FLASHER 1
Price unavailable
COVER, FLASHER 1
32
Yamaha Motors
COVER, FLASHER 11DB-F83D3-00-P1
Required: 1
COVER, FLASHER 1
Price unavailable
HOOK
34
Yamaha Motors
HOOK4P8-F8379-00
Required: 1
HOOK
Price unavailable
-15%
Truss Screw
35
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
PANEL 2
36
Yamaha Motors
PANEL 21DB-F835V-00-P1
Required: 1
PANEL 2
Price unavailable
PANEL 2
36
Yamaha Motors
PANEL 21DB-F835V-00-P0
Required: 1
PANEL 2
Price unavailable
PANEL 2
36
Yamaha Motors
PANEL 21DB-F835V-00-P3
Required: 1
PANEL 2
Price unavailable
COVER, FLASHER 2
37
Yamaha Motors
COVER, FLASHER 21DB-F83D4-00-P1
Required: 1
COVER, FLASHER 2
Price unavailable
COVER, FLASHER 2
37
Yamaha Motors
COVER, FLASHER 21DB-F83D4-00-P0
Required: 1
COVER, FLASHER 2
Price unavailable
COVER, FLASHER 2
37
Yamaha Motors
COVER, FLASHER 21DB-F83D4-00-P4
Required: 1
COVER, FLASHER 2
Price unavailable
HOOK
39
Yamaha Motors
HOOK4P8-F8379-00
Required: 1
HOOK
Price unavailable
-15%
Truss Screw
40
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
COVER, UNDER
41
Yamaha Motors
COVER, UNDER5P1-F8385-01
Required: 1
COVER, UNDER
Price unavailable
COVER 2
43
Yamaha Motors
COVER 25P1-F842N-00
Required: 1
COVER 2
Price unavailable
PLUG, BLIND
44
Yamaha Motors
PLUG, BLIND5HU-F6199-00
Required: 1
PLUG, BLIND
Price unavailable
-15%
Truss Screw
45
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SCREW, WITH WASHER
46
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
DAMPER, PLATE
47
Yamaha Motors
DAMPER, PLATE90520-20810
Required: 1
DAMPER, PLATE
Price unavailable
DAMPER, PLATE
48
Yamaha Motors
DAMPER, PLATE90520-10815
Required: 1
DAMPER, PLATE
Price unavailable
FENDER, INNER
49
Yamaha Motors
FENDER, INNER5P1-F1552-00
Required: 1
FENDER, INNER
Price unavailable
DAMPER, PLATE
50
Yamaha Motors
DAMPER, PLATE90520-05811
Required: 6
DAMPER, PLATE
Price unavailable
FLAP, FRONT FENDER
53
Yamaha Motors
FLAP, FRONT FENDER5P1-F1521-00
Required: 1
FLAP, FRONT FENDER
Price unavailable
LABEL, CAUTION
54
Yamaha Motors
LABEL, CAUTION5VD-F835Y-01
Required: 1
LABEL, CAUTION
Price unavailable
GRAPHIC 1
55
Yamaha Motors
GRAPHIC 11DB-F8391-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
56
Yamaha Motors
GRAPHIC 21DB-F8392-00
Required: 1
GRAPHIC 2
Price unavailable
GRAPHIC 3
57
Yamaha Motors
GRAPHIC 31DB-F8393-00
Required: 1
GRAPHIC 3
Price unavailable
GRAPHIC 4
58
Yamaha Motors
GRAPHIC 41DB-F8394-00
Required: 1
GRAPHIC 4
Price unavailable
EMBLEM, 1
59
Yamaha Motors
EMBLEM, 11DB-F834C-00
Required: 1
EMBLEM, 1
Price unavailable
EMBLEM 2
60
Yamaha Motors
EMBLEM 21DB-F835C-00
Required: 1
EMBLEM 2
Price unavailable
EMBLEM 3D
61
Yamaha Motors
EMBLEM 3D1DB-F173B-00
Required: 1
EMBLEM 3D
Price unavailable
EMBLEM 3D
62
Yamaha Motors
EMBLEM 3D1DB-F174B-00
Required: 1
EMBLEM 3D
Price unavailable
GRAPHIC 5
63
Yamaha Motors
GRAPHIC 51DB-F8398-00
Required: 1
GRAPHIC 5
Price unavailable
GRAPHIC 6
64
Yamaha Motors
GRAPHIC 61DB-F8399-00
Required: 1
GRAPHIC 6
Price unavailable
GRAPHIC 7
65
Yamaha Motors
GRAPHIC 71DB-F839A-00
Required: 1
GRAPHIC 7
Price unavailable
GRAPHIC 8
66
Yamaha Motors
GRAPHIC 81DB-F839E-00
Required: 1
GRAPHIC 8
Price unavailable
TUNING FORK MARK
67
Yamaha Motors
TUNING FORK MARK1S9-F836D-10
Required: 1
TUNING FORK MARK
Price unavailable
TUNING FORK MARK
68
Yamaha Motors
TUNING FORK MARK1S9-F836D-10
Required: 1
TUNING FORK MARK
Price unavailable
