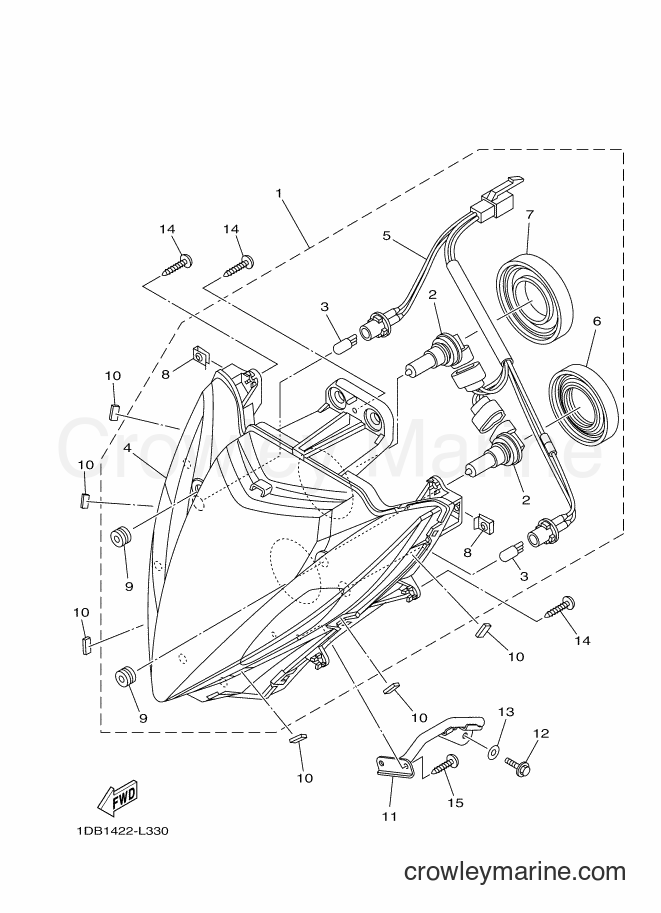

2012 Scooter AT125FC - AT125FC (1DB1) [010] HEADLIGHT diagram
![Yamaha Motors AT125FC (1DB1) [010] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/bTPOl4vY.png)
1
Yamaha Motors
HEADLIGHT ASSY1DB-H4300-00
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Yamaha Motors
. BULB, HEADLIGHT (12V-55W)1DB-H4314-00
Required: 2
. BULB, HEADLIGHT (12V-55W)
Price unavailable
3
Yamaha Motors
. BULB (12V-3.4W)2S0-H3516-00
Required: 2
. BULB (12V-3.4W)
Price unavailable
4
Yamaha Motors
. HEADLIGHT UNIT COMP.1DB-H410A-00
Required: 1
. HEADLIGHT UNIT COMP.
Price unavailable
5
Yamaha Motors
. CORD, HEADLIGHT1DB-H4359-00
Required: 1
. CORD, HEADLIGHT
Price unavailable
6
Yamaha Motors
. COVER, SOCKET1DB-H3547-00
Required: 1
. COVER, SOCKET
Price unavailable
7
Yamaha Motors
. COVER, SOCKET1DB-H4397-00
Required: 1
. COVER, SOCKET
Price unavailable
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
. NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
9
Yamaha Motors
. GROMMET90480-10804
Required: 2
. GROMMET
Price unavailable
10
Yamaha Motors
DAMPER1DB-H4527-00
Required: 6
DAMPER
Price unavailable
11
Yamaha Motors
STAY 21DB-F8357-00
Required: 1
STAY 2
Price unavailable
-15%
12
Yamaha Motors
Flange Bolt95812-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95817-06012-00
$0.98
You save $0.17
13
Yamaha Motors
WASHER, PLATE90201-06864
Required: 1
WASHER, PLATE
Price unavailable
-15%
14
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 9
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
