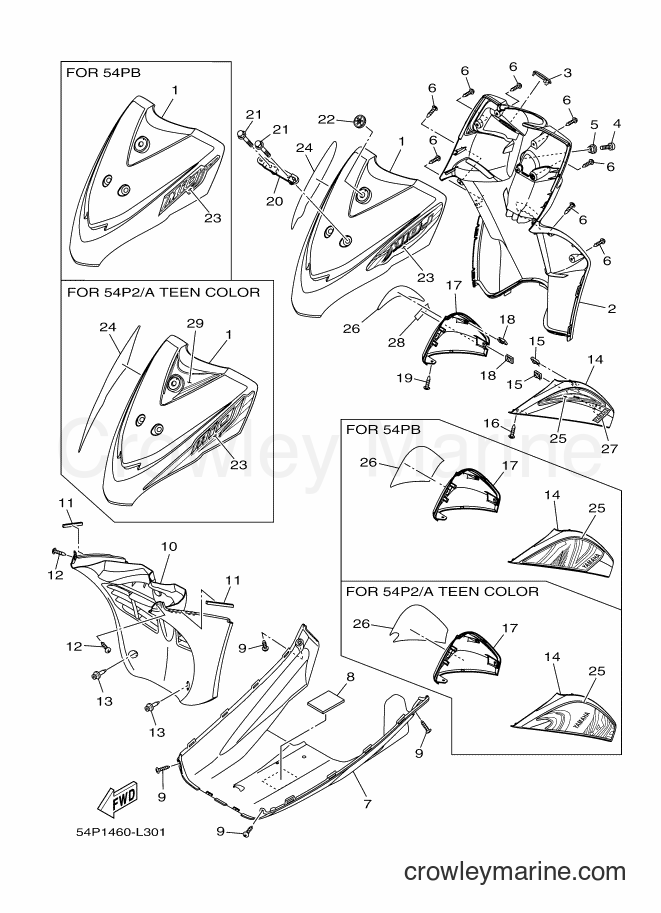

2012 Scooter AL115FC - AL115FC (54PA) [010] LEG SHIELD diagram
![Yamaha Motors AL115FC (54PA) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/WKB80uCt.png)
1
Yamaha Motors
LEG SHIELD 154P-F8311-10-P3
Required: 1
LEG SHIELD 1
Price unavailable
1
Yamaha Motors
LEG SHIELD 154P-F8311-10-P0
Required: 1
LEG SHIELD 1
Price unavailable
1
Yamaha Motors
LEG SHIELD 154P-F8311-00-P0
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
LEG SHIELD ASSY54P-F8300-00
Required: 1
LEG SHIELD ASSY
Price unavailable
3
Yamaha Motors
COVER54P-F8365-00
Required: 1
COVER
Price unavailable
-15%
$8.92
You save $1.57
5
Yamaha Motors
COLLAR90387-07828
Required: 1
COLLAR
Price unavailable
-15%
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
7
Yamaha Motors
COVER, UNDER54P-F8385-20
Required: 1
COVER, UNDER
Price unavailable
7
Yamaha Motors
COVER, UNDER54P-F8385-00
Required: 1
COVER, UNDER
Price unavailable
8
Yamaha Motors
DAMPER 14ST-F1638-00
Required: 1
DAMPER 1
Price unavailable
-15%
9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
10
Yamaha Motors
FENDER, INNER54P-F1552-20
Required: 1
FENDER, INNER
Price unavailable
10
Yamaha Motors
FENDER, INNER54P-F1552-00
Required: 1
FENDER, INNER
Price unavailable
11
Yamaha Motors
DAMPER, PLATE90520-03811
Required: 2
DAMPER, PLATE
Price unavailable
-15%
12
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
$1.10
You save $0.20
14
Yamaha Motors
COVER, FLASHER 154P-F83D3-10-P6
Required: 1
COVER, FLASHER 1
Price unavailable
14
Yamaha Motors
COVER, FLASHER 154P-F83D3-00-P0
Required: 1
COVER, FLASHER 1
Price unavailable
14
Yamaha Motors
COVER, FLASHER 154P-F83D3-10-P0
Required: 1
COVER, FLASHER 1
Price unavailable
-50%
15
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-15%
16
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
17
Yamaha Motors
COVER, FLASHER 254P-F83D4-10-P0
Required: 1
COVER, FLASHER 2
Price unavailable
17
Yamaha Motors
COVER, FLASHER 254P-F83D4-10-P6
Required: 1
COVER, FLASHER 2
Price unavailable
17
Yamaha Motors
COVER, FLASHER 254P-F83D4-00-P0
Required: 1
COVER, FLASHER 2
Price unavailable
-50%
18
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-15%
19
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
20
Yamaha Motors
BRACKET, NUMBER PLATE54P-H454E-00
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
-15%
21
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06030-00
$3.95
You save $0.70
22
Yamaha Motors
EMBLEM40D-F1737-00
Required: 1
EMBLEM
Price unavailable
23
Yamaha Motors
GRAPHIC, 1354P-F832L-00
Required: 1
GRAPHIC, 13
Price unavailable
23
Yamaha Motors
GRAPHIC, 1354P-F832L-90
Required: 1
GRAPHIC, 13
Price unavailable
24
Yamaha Motors
GRAPHIC, 1454P-F831Y-00
Required: 1
GRAPHIC, 14
Price unavailable
25
Yamaha Motors
GRAPHIC, 1554P-F832B-90
Required: 1
GRAPHIC, 15
Price unavailable
25
Yamaha Motors
GRAPHIC, 1554P-F832B-00
Required: 1
GRAPHIC, 15
Price unavailable
26
Yamaha Motors
GRAPHIC, 1654P-F832C-90
Required: 1
GRAPHIC, 16
Price unavailable
26
Yamaha Motors
GRAPHIC, 1654P-F832C-00
Required: 1
GRAPHIC, 16
Price unavailable
27
Yamaha Motors
EMBLEM, YAMAHA3S0-F153E-20
Required: 1
EMBLEM, YAMAHA
Price unavailable
28
Yamaha Motors
EMBLEM, YAMAHA3S0-F153E-20
Required: 1
EMBLEM, YAMAHA
Price unavailable
