All diagrams for this model

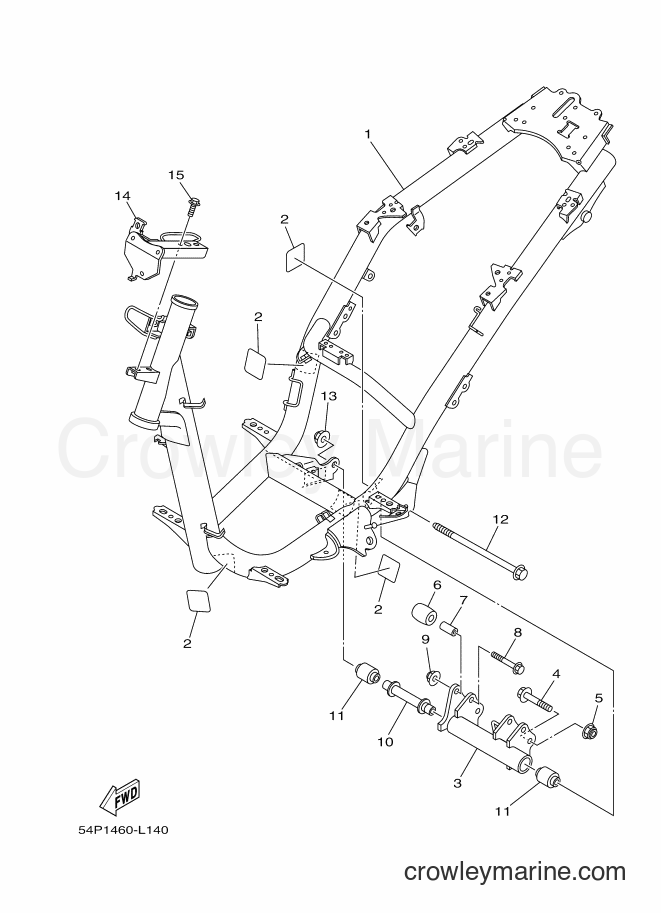

2012 Scooter AL115FC - AL115FC (54PA) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115FC (54PA) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.54P-F1110-00
Required: 1
FRAME COMP.
Price unavailable
FRAME COMP.
1
Yamaha Motors
FRAME COMP.54P-F1110-10
Required: 1
FRAME COMP.
Price unavailable
SEAL
2
Yamaha Motors
SEAL54P-F1268-00
Required: 4
SEAL
Price unavailable
ENGINE BRACKET COMP.
3
Yamaha Motors
ENGINE BRACKET COMP.54P-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
-15%
Flange Bolt
4
Yamaha Motors
Flange Bolt90105-10283-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
-15%
Self Locking Nut
5
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
STOPPER, MAIN STAND
6
Yamaha Motors
STOPPER, MAIN STAND44D-F7114-00
Required: 2
STOPPER, MAIN STAND
Price unavailable
COLLAR
7
Yamaha Motors
COLLAR90387-08821
Required: 2
COLLAR
Price unavailable
BOLT, FLANGE
8
Yamaha Motors
BOLT, FLANGE90105-088E3
Required: 2
BOLT, FLANGE
Price unavailable
-15%
Self-locking Nut
9
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
SPACER
10
Yamaha Motors
SPACER54P-F1459-00
Required: 1
SPACER
Price unavailable
DAMPER
11
Yamaha Motors
DAMPER90388-10800
Required: 2
DAMPER
Price unavailable
SHAFT, PIVOT
12
Yamaha Motors
SHAFT, PIVOT54P-F2141-00
Required: 1
SHAFT, PIVOT
Price unavailable
-15%
Self Locking Nut
13
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
STAY 1
14
Yamaha Motors
STAY 154P-F8356-00
Required: 1
STAY 1
Price unavailable
-15%
95817-06010-00
15
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
