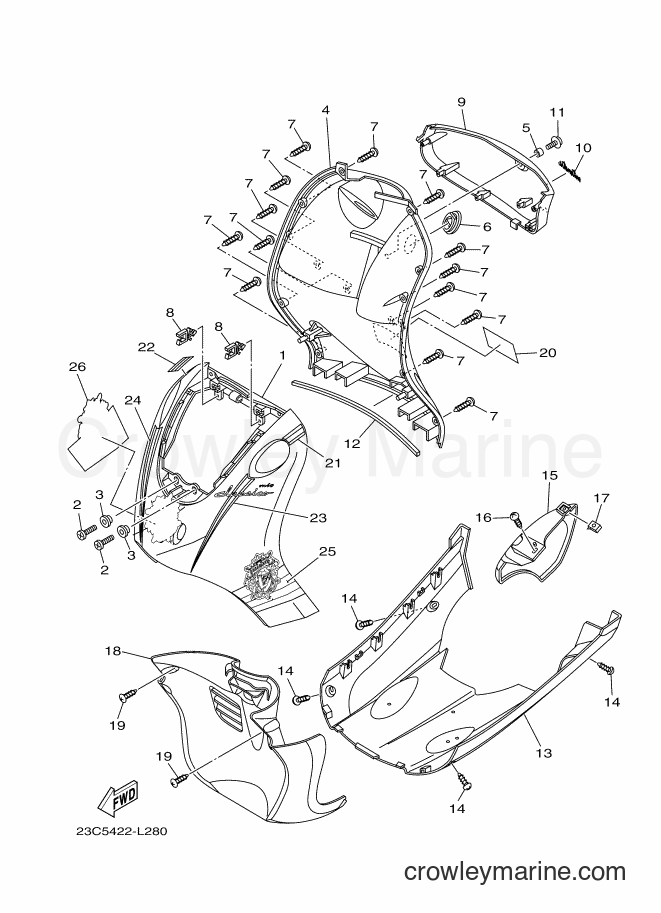

2012 Scooter AF115C - AF115C (23C5) [010] LEG SHIELD diagram
![Yamaha Motors AF115C (23C5) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/g5KKbLnu.png)
1
Yamaha Motors
LEG SHIELD 14D1-F8311-00-P4
Required: 1
LEG SHIELD 1
Price unavailable
-15%
$8.92
You save $1.57
3
Yamaha Motors
COLLAR90387-07811
Required: 2
COLLAR
Price unavailable
4
Yamaha Motors
LEG SHIELD 24D1-F8312-00-P7
Required: 1
LEG SHIELD 2
Price unavailable
5
Yamaha Motors
COLLAR90387-08817
Required: 1
COLLAR
Price unavailable
6
Yamaha Motors
CAP4D1-F8349-00
Required: 1
CAP
Price unavailable
-15%
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 14
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Yamaha Motors
CLAMP90464-14801
Required: 2
CLAMP
Price unavailable
9
Yamaha Motors
PANEL, INNER 14D1-F836K-00-P6
Required: 1
PANEL, INNER 1
Price unavailable
10
Yamaha Motors
EMBLEM23C-F8338-00
Required: 1
EMBLEM
Price unavailable
-15%
11
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
12
Yamaha Motors
DAMPER 14D1-F8415-00
Required: 1
DAMPER 1
Price unavailable
13
Yamaha Motors
COVER, UNDER4D1-F8385-20
Required: 1
COVER, UNDER
Price unavailable
-15%
14
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
15
Yamaha Motors
COVER, UNDER 24D1-F8395-00
Required: 1
COVER, UNDER 2
Price unavailable
-15%
16
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
17
Yamaha Motors
NUT, SPRING90183-05811
Required: 1
NUT, SPRING
Price unavailable
18
Yamaha Motors
FENDER, INNER4D1-F1552-21
Required: 1
FENDER, INNER
Price unavailable
-15%
19
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
20
Yamaha Motors
LABEL, CAUTION4D1-F835Y-01
Required: 1
LABEL, CAUTION
Price unavailable
21
Yamaha Motors
GRAPHIC 823C-F839E-00
Required: 1
GRAPHIC 8
Price unavailable
22
Yamaha Motors
GRAPHIC 923C-F839F-00
Required: 1
GRAPHIC 9
Price unavailable
23
Yamaha Motors
GRAPHIC 1023C-F839G-00
Required: 1
GRAPHIC 10
Price unavailable
24
Yamaha Motors
GRAPHIC, 1123C-F839J-00
Required: 1
GRAPHIC, 11
Price unavailable
25
Yamaha Motors
GRAPHIC, 1223C-F832K-00
Required: 1
GRAPHIC, 12
Price unavailable
26
Yamaha Motors
GRAPHIC, 1323C-F832L-00
Required: 1
GRAPHIC, 13
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
