All diagrams for this model

2012 Scooter AF115C - AF115C (23C5) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

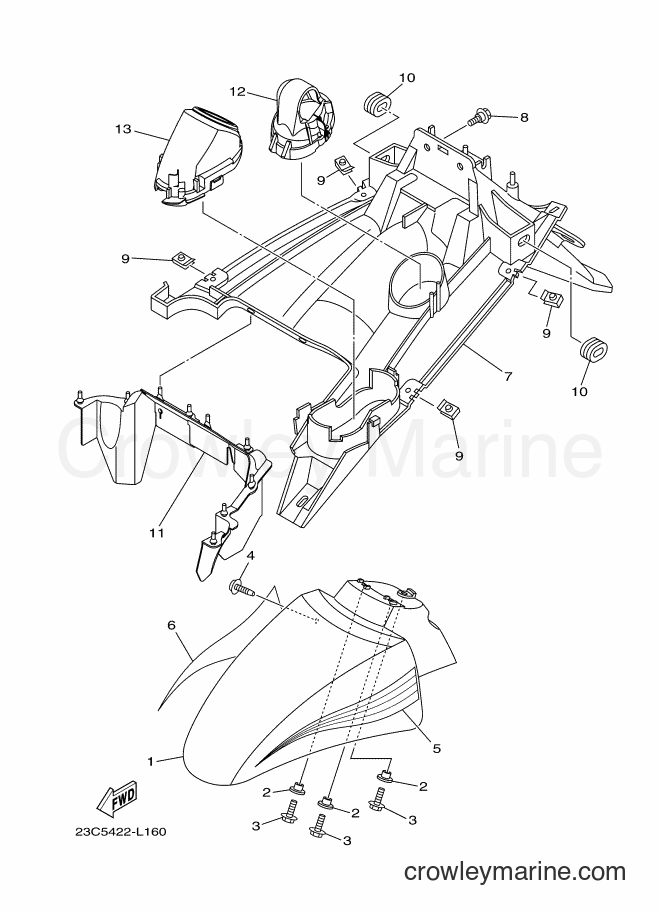

Yamaha Motors AF115C (23C5) [010] - FENDER
Change View:
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT4D1-F1511-00-P6
Required: 1
FENDER, FRONT
Price unavailable
COLLAR
2
Yamaha Motors
COLLAR90387-06804
Required: 3
COLLAR
Price unavailable
SCREW, WITH WASHER
4
Yamaha Motors
SCREW, WITH WASHER90159-06801
Required: 1
SCREW, WITH WASHER
Price unavailable
GRAPHIC 1
5
Yamaha Motors
GRAPHIC 123C-F15D9-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
6
Yamaha Motors
GRAPHIC 223C-F15E9-00
Required: 1
GRAPHIC 2
Price unavailable
FENDER, REAR
7
Yamaha Motors
FENDER, REAR4D1-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-15%
BOLT
8
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
NUT, SPRING
9
Yamaha Motors
NUT, SPRING90183-05811
Required: 4
NUT, SPRING
Price unavailable
GROMMET
10
Yamaha Motors
GROMMET90480-01805
Required: 2
GROMMET
Price unavailable
FLAP
11
Yamaha Motors
FLAP4D1-F1621-00
Required: 1
FLAP
Price unavailable
COVER, REAR FENDER 1
12
Yamaha Motors
COVER, REAR FENDER 14D1-F163A-00
Required: 1
COVER, REAR FENDER 1
Price unavailable
COVER, REAR FENDER 2
13
Yamaha Motors
COVER, REAR FENDER 24D1-F163E-00
Required: 1
COVER, REAR FENDER 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
