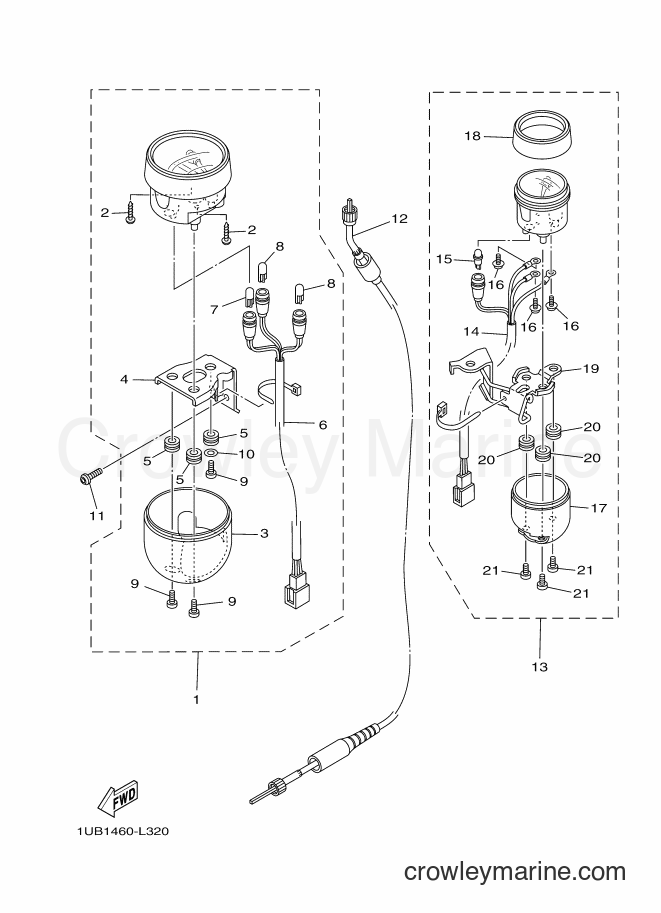

2012 Scooter AF115C - AF115C (1UB3) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115C (1UB3) [010] - METER
Change View:
SPEEDOMETER ASSY
1
Yamaha Motors
SPEEDOMETER ASSY1UB-H3570-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
-15%
Tapping Screw
2
Yamaha Motors
Tapping Screw90167-04021-00
Required: 2
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
. CASE, SPEEDOMETER LOWER
3
Yamaha Motors
. CASE, SPEEDOMETER LOWER1UB-H3572-00
Required: 1
. CASE, SPEEDOMETER LOWER
Price unavailable
. BRACKET, METER 2
4
Yamaha Motors
. BRACKET, METER 21UB-H355Y-00
Required: 1
. BRACKET, METER 2
Price unavailable
. DAMPER
5
Yamaha Motors
. DAMPER1UB-H338V-00
Required: 3
. DAMPER
Price unavailable
. SOCKET CORD ASSY
6
Yamaha Motors
. SOCKET CORD ASSY1UB-H3520-00
Required: 1
. SOCKET CORD ASSY
Price unavailable
. BULB (T-6.5 14V-1.4W)
7
Yamaha Motors
. BULB (T-6.5 14V-1.4W)1UB-H3517-00
Required: 1
. BULB (T-6.5 14V-1.4W)
Price unavailable
. BULB (T-6.5 12V-1.7W)
8
Yamaha Motors
. BULB (T-6.5 12V-1.7W)2GV-H3517-00
Required: 2
. BULB (T-6.5 12V-1.7W)
Price unavailable
. SCREW
9
Yamaha Motors
. SCREW1UB-H4526-00
Required: 3
. SCREW
Price unavailable
. WASHER, SPECIAL
10
Yamaha Motors
. WASHER, SPECIAL5BP-H3524-00
Required: 1
. WASHER, SPECIAL
Price unavailable
-15%
SPECIAL SHAPE SCREW
11
Yamaha Motors
SPECIAL SHAPE SCREW90149-06308-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SPEEDOMETER CABLE ASSY
12
Yamaha Motors
SPEEDOMETER CABLE ASSY1UB-H3550-00
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
FUEL METER ASSY
13
Yamaha Motors
FUEL METER ASSY1UB-H5750-00
Required: 1
FUEL METER ASSY
Price unavailable
. SOCKET ASSY.
14
Yamaha Motors
. SOCKET ASSY.1UB-H350L-00
Required: 1
. SOCKET ASSY.
Price unavailable
. BULB, LED
15
Yamaha Motors
. BULB, LED1UB-H3751-00
Required: 1
. BULB, LED
Price unavailable
-15%
Screw with Washer
16
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
. CASE, UNDER
17
Yamaha Motors
. CASE, UNDER1UB-H353H-00
Required: 1
. CASE, UNDER
Price unavailable
. CASE, UPPER
18
Yamaha Motors
. CASE, UPPER1UB-H353G-00
Required: 1
. CASE, UPPER
Price unavailable
. BRACKET, METER
19
Yamaha Motors
. BRACKET, METER1UB-H354B-00
Required: 1
. BRACKET, METER
Price unavailable
. DAMPER
20
Yamaha Motors
. DAMPER1UB-H338V-00
Required: 3
. DAMPER
Price unavailable
. SCREW
21
Yamaha Motors
. SCREW1UB-H4526-00
Required: 3
. SCREW
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
