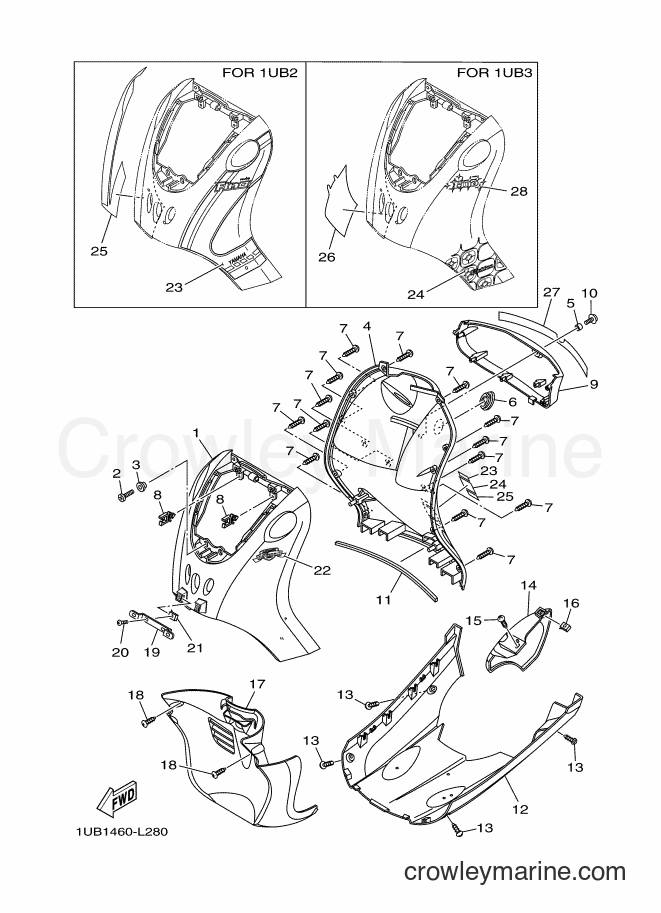

2012 Scooter AF115C - AF115C (1UB1) [010] LEG SHIELD diagram
![Yamaha Motors AF115C (1UB1) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/kTuaH6al.png)
1
Yamaha Motors
LEG SHIELD 11UB-F8311-00-P2
Required: 1
LEG SHIELD 1
Price unavailable
1
Yamaha Motors
LEG SHIELD 11UB-F8311-00-P0
Required: 1
LEG SHIELD 1
Price unavailable
1
Yamaha Motors
LEG SHIELD 11UB-F8311-00-P5
Required: 1
LEG SHIELD 1
Price unavailable
-15%
$8.92
You save $1.57
3
Yamaha Motors
COLLAR90387-07811
Required: 2
COLLAR
Price unavailable
4
Yamaha Motors
LEG SHIELD 21UB-F8312-00-P0
Required: 1
LEG SHIELD 2
Price unavailable
4
Yamaha Motors
LEG SHIELD 21UB-F8312-00-P1
Required: 1
LEG SHIELD 2
Price unavailable
5
Yamaha Motors
COLLAR90387-08817
Required: 1
COLLAR
Price unavailable
6
Yamaha Motors
CAP1UB-F8349-00
Required: 1
CAP
Price unavailable
-15%
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 14
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Yamaha Motors
CLAMP90464-14801
Required: 2
CLAMP
Price unavailable
9
Yamaha Motors
PANEL, INNER 11UB-F836K-00-P0
Required: 1
PANEL, INNER 1
Price unavailable
9
Yamaha Motors
PANEL, INNER 11UB-F836K-00-P2
Required: 1
PANEL, INNER 1
Price unavailable
9
Yamaha Motors
PANEL, INNER 11UB-F836K-00-P5
Required: 1
PANEL, INNER 1
Price unavailable
-15%
10
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
11
Yamaha Motors
DAMPER 11UB-F8415-00
Required: 1
DAMPER 1
Price unavailable
12
Yamaha Motors
COVER, UNDER1UB-F8385-00
Required: 1
COVER, UNDER
Price unavailable
12
Yamaha Motors
COVER, UNDER1UB-F8385-10
Required: 1
COVER, UNDER
Price unavailable
-15%
13
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
14
Yamaha Motors
COVER, UNDER 21UB-F8395-00
Required: 1
COVER, UNDER 2
Price unavailable
-15%
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
16
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
17
Yamaha Motors
FENDER, INNER1UB-F1552-00
Required: 1
FENDER, INNER
Price unavailable
17
Yamaha Motors
FENDER, INNER1UB-F1552-10
Required: 1
FENDER, INNER
Price unavailable
-15%
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
19
Yamaha Motors
BRACKET, NUMBER PLATE3AY-H454E-00
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
-15%
20
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
21
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
22
Yamaha Motors
EMBLEM1UB-F8338-00
Required: 1
EMBLEM
Price unavailable
23
Yamaha Motors
GRAPHIC, 51UB-F83G8-00
Required: 1
GRAPHIC, 5
Price unavailable
24
Yamaha Motors
GRAPHIC, 81UB-F83GB-00
Required: 1
GRAPHIC, 8
Price unavailable
25
Yamaha Motors
GRAPHIC, 61UB-F83G9-00
Required: 1
GRAPHIC, 6
Price unavailable
26
Yamaha Motors
GRAPHIC, 91UB-F83GC-00
Required: 1
GRAPHIC, 9
Price unavailable
27
Yamaha Motors
GRAPHIC, 71UB-F83GA-00
Required: 1
GRAPHIC, 7
Price unavailable
28
Yamaha Motors
GRAPHIC, 101UB-F83GD-00
Required: 1
GRAPHIC, 10
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
