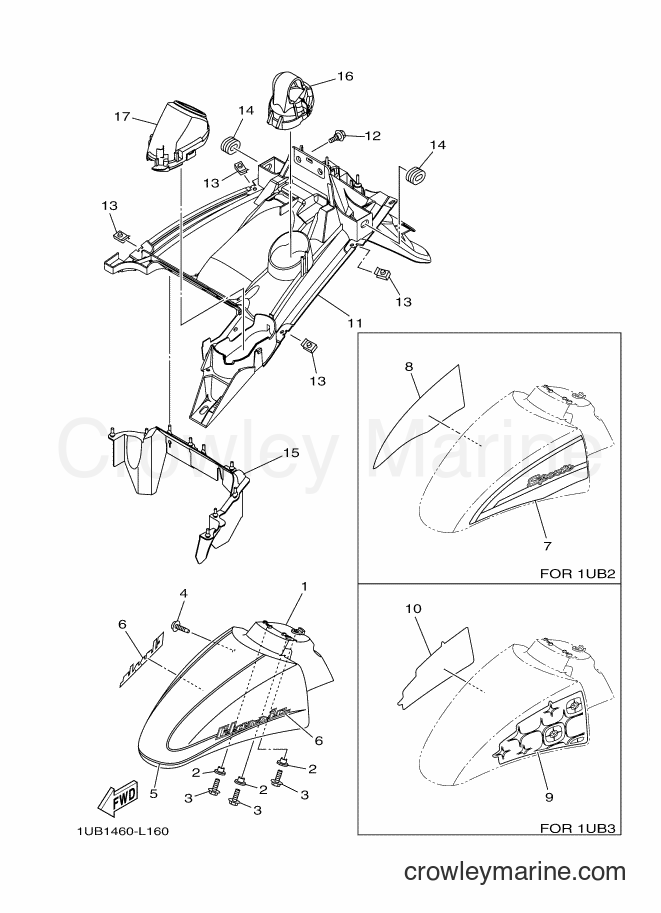

2012 Scooter AF115C - AF115C (1UB2) [010] FENDER diagram
![Yamaha Motors AF115C (1UB2) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/qRRnXHev.png)
1
Yamaha Motors
FENDER, FRONT1UB-F1511-00-P0
Required: 1
FENDER, FRONT
Price unavailable
1
Yamaha Motors
FENDER, FRONT1UB-F1511-00-P5
Required: 1
FENDER, FRONT
Price unavailable
1
Yamaha Motors
FENDER, FRONT1UB-F1511-00-P2
Required: 1
FENDER, FRONT
Price unavailable
-50%
2
Yamaha Motors
COLLAR90387-07717-00
Required: 3
COLLAR
Supersedes: 90387-068S1-00
In stock
Only 4 remaining
$4.75
You save $4.75
No longer availableSearch Nationwide Inventory
$0.67
4
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 1
SCREW, WITH WASHER
Price unavailable
5
Yamaha Motors
GRAPHIC SET, FRONT FENDER1UB-F1570-00
Required: 1
GRAPHIC SET, FRONT FENDER
Price unavailable
6
Yamaha Motors
EMBLEM 21UB-F1565-00
Required: 2
EMBLEM 2
Price unavailable
7
Yamaha Motors
GRAPHIC 11UB-F1569-00
Required: 1
GRAPHIC 1
Price unavailable
8
Yamaha Motors
GRAPHIC 21UB-F1579-00
Required: 1
GRAPHIC 2
Price unavailable
9
Yamaha Motors
GRAPHIC 31UB-F1599-00
Required: 1
GRAPHIC 3
Price unavailable
10
Yamaha Motors
GRAPHIC 41UB-F15A9-00
Required: 1
GRAPHIC 4
Price unavailable
11
Yamaha Motors
FENDER, REAR1UB-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-15%
$2.63
You save $0.47
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Yamaha Motors
GROMMET90480-01805
Required: 2
GROMMET
Price unavailable
15
Yamaha Motors
FLAP14D-F1621-00
Required: 1
FLAP
Price unavailable
16
Yamaha Motors
COVER, REAR FENDER 114D-F163A-00
Required: 1
COVER, REAR FENDER 1
Price unavailable
17
Yamaha Motors
COVER, REAR FENDER 214D-F163E-00
Required: 1
COVER, REAR FENDER 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
