All diagrams for this model

2011 Scooter XC100N - XC100N (1DW1) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

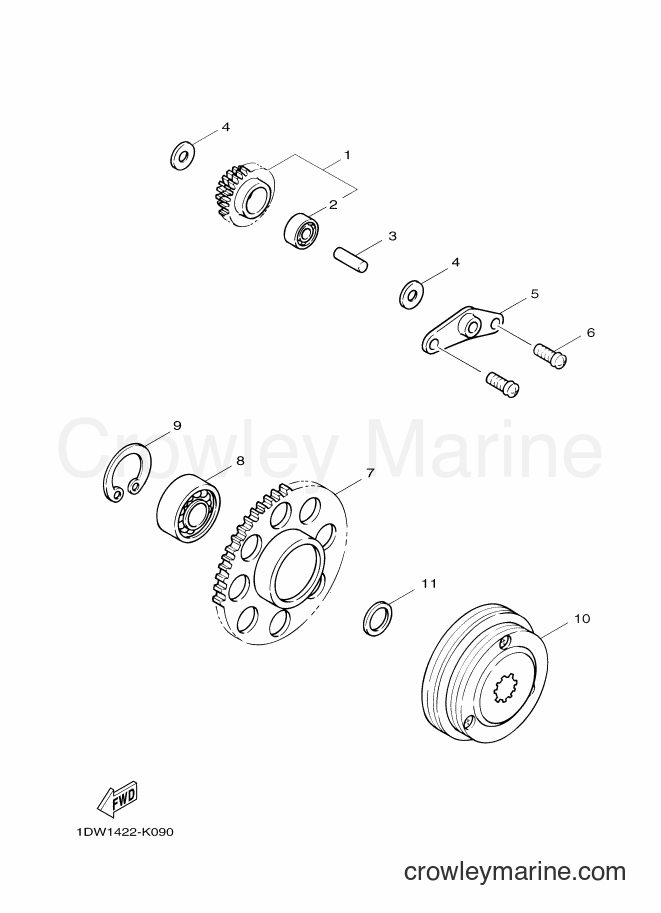

Yamaha Motors XC100N (1DW1) [010] - STARTER
Change View:
IDLE GEAR ASSY
1
Yamaha Motors
IDLE GEAR ASSY1DW-E5650-00
Required: 1
IDLE GEAR ASSY
Price unavailable
-15%
BEARING
2
Yamaha Motors
BEARING93315-110Y6-00
Required: 1
. BEARING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
Shaft
3
Yamaha Motors
Shaft5CA-E5521-00-00
Required: 1
SHAFT 1
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
-15%
Plain Washer
4
Yamaha Motors
Plain Washer90201-108A3-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.65
$1.40
You save $0.25
More details
PLATE, IDLE GEAR
5
Yamaha Motors
PLATE, IDLE GEAR1DW-E5532-00
Required: 1
PLATE, IDLE GEAR
Price unavailable
-12%
Screw
6
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
WHEEL, STARTER
7
Yamaha Motors
WHEEL, STARTER5HK-E5524-00
Required: 1
WHEEL, STARTER
Price unavailable
-15%
BEARING
8
Yamaha Motors
BEARING93306-00316-00
Required: 1
BEARING
Supersedes: 93306-003Y4-00
Cross Ship
Leaves in 2-5 days
$38.99
$33.14
You save $5.85
More details
-15%
Circle Clip
9
Yamaha Motors
Circle Clip93450-35163-00
Required: 1
CIRCLIP
Supersedes: 93450-35015-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
STARTER CLUTCH ASSY
10
Yamaha Motors
STARTER CLUTCH ASSY5HK-E5570-01
Required: 1
STARTER CLUTCH ASSY
Price unavailable
COLLAR
11
Yamaha Motors
COLLAR90387-16806
Required: 1
COLLAR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
