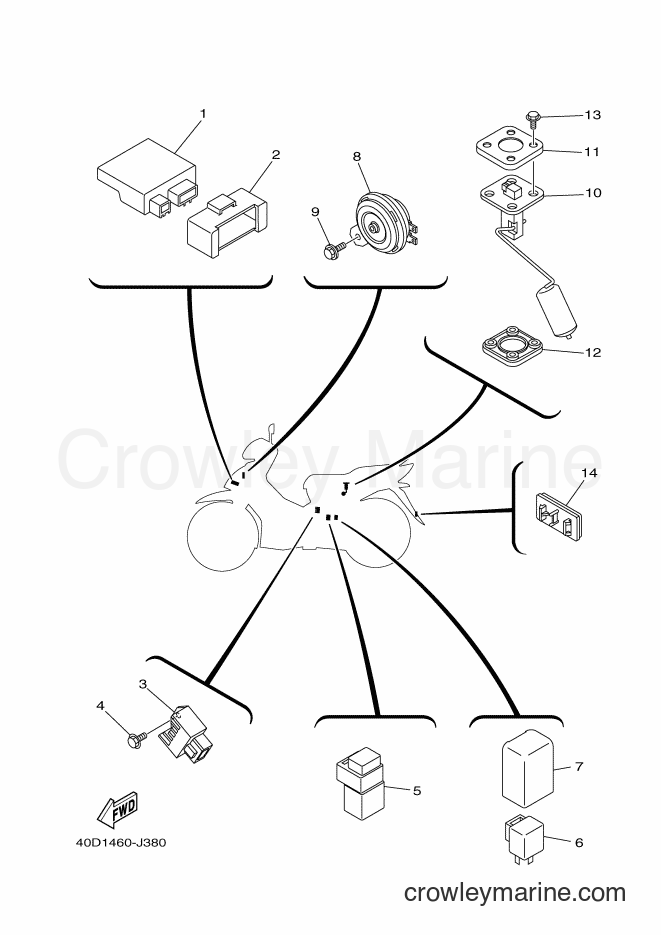

Yamaha Motors TK115C (40D1) [010] - ELECTRICAL 2
Change View:
C.D.I. UNIT COMP.
1
Yamaha Motors
C.D.I. UNIT COMP.40D-H554A-00
Required: 1
C.D.I. UNIT COMP.
Price unavailable
BAND
2
Yamaha Motors
BAND1S7-H5546-00
Required: 1
BAND
Price unavailable
RECTIFIER & REGULATOR ASSY
3
Yamaha Motors
RECTIFIER & REGULATOR ASSY2D5-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
-15%
Flange Bolt
4
Yamaha Motors
Flange Bolt95027-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
STARTER RELAY ASSY
5
Yamaha Motors
STARTER RELAY ASSY1S7-H1940-10
Required: 1
STARTER RELAY ASSY
Price unavailable
FLASHER RELAY ASSY
6
Yamaha Motors
FLASHER RELAY ASSY5D9-H3350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
COVER, METER 2
7
Yamaha Motors
COVER, METER 240D-H3579-00
Required: 1
COVER, METER 2
Price unavailable
HORN
8
Yamaha Motors
HORN40D-H3371-00
Required: 1
HORN
Price unavailable
SENDER UNIT ASSY, FUEL METER
10
Yamaha Motors
SENDER UNIT ASSY, FUEL METER5D9-H5752-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
RETAINER
11
Yamaha Motors
RETAINER5ER-H5757-00
Required: 1
RETAINER
Price unavailable
GASKET, SENDER UNIT
12
Yamaha Motors
GASKET, SENDER UNIT4US-H5753-00
Required: 1
GASKET, SENDER UNIT
Price unavailable
-15%
Bolt With Washer
13
Yamaha Motors
Bolt With Washer90119-05193-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
REFLECTOR, FRONT 1
14
Yamaha Motors
REFLECTOR, FRONT 14XC-H5111-00
Required: 1
REFLECTOR, FRONT 1
Price unavailable
