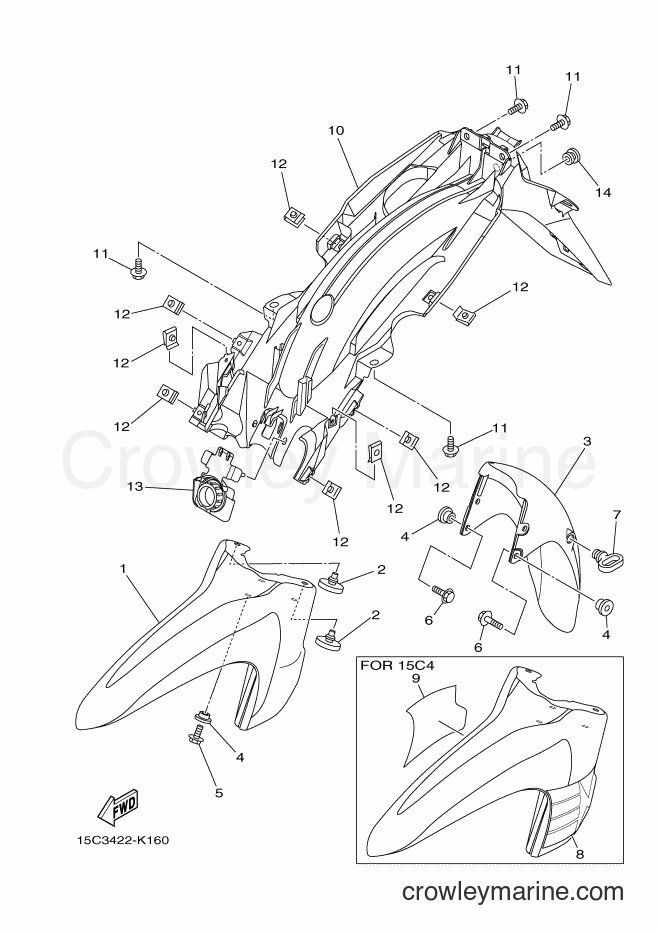

Yamaha Motors TK115 (15C3) [010] - FENDER
Change View:
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT15C-F1511-00-P4
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT15C-F1511-00-P9
Required: 1
FENDER, FRONT
Price unavailable
DAMPER 1
2
Yamaha Motors
DAMPER 115C-F1541-00
Required: 2
DAMPER 1
Price unavailable
FENDER, FRONT 2
3
Yamaha Motors
FENDER, FRONT 215C-F1556-00
Required: 1
FENDER, FRONT 2
Price unavailable
-15%
COLLAR
4
Yamaha Motors
COLLAR90387-06857-00
Required: 7
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
-15%
Bolt with Washer
6
Yamaha Motors
Bolt with Washer90119-06051-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
HOLDER, CABLE
7
Yamaha Motors
HOLDER, CABLE5SD-F1518-00
Required: 1
HOLDER, CABLE
Price unavailable
GRAPHIC, 1
8
Yamaha Motors
GRAPHIC, 115C-F1569-00
Required: 1
GRAPHIC, 1
Price unavailable
GRAPHIC, 2
9
Yamaha Motors
GRAPHIC, 215C-F1579-00
Required: 1
GRAPHIC, 2
Price unavailable
FENDER, REAR
10
Yamaha Motors
FENDER, REAR15C-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-15%
Bolt with Washer
11
Yamaha Motors
Bolt with Washer90119-06054-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
NUT, SPRING
12
Yamaha Motors
NUT, SPRING90183-05811
Required: 8
NUT, SPRING
Price unavailable
FLAP
13
Yamaha Motors
FLAP15C-F1691-00
Required: 1
FLAP
Price unavailable
-15%
Grommet
14
Yamaha Motors
Grommet90480-13567-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
