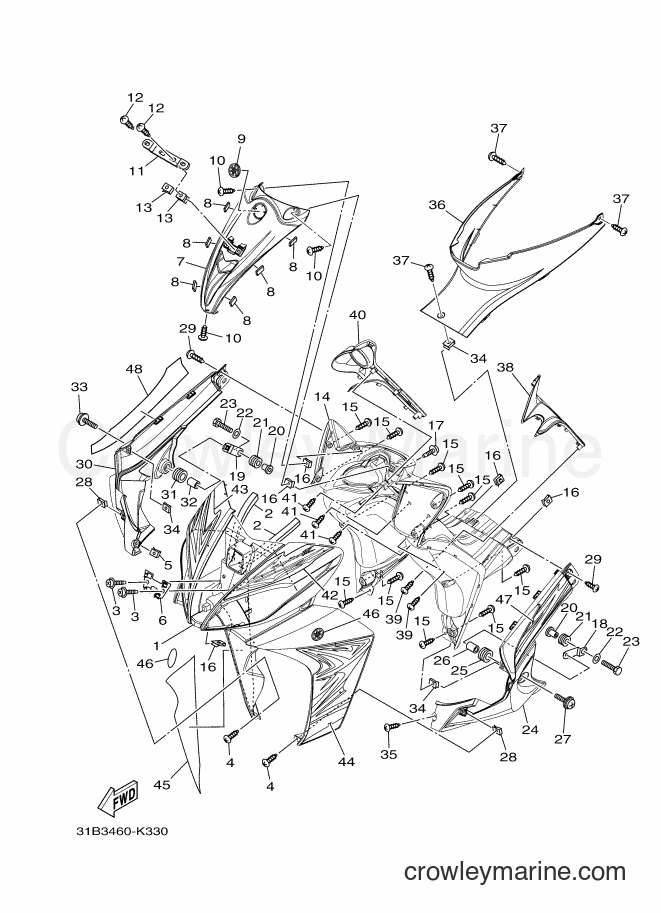

2011 Scooter T115SEC - T115SEC (31B4) [010] LEG SHIELD diagram
![Yamaha Motors T115SEC (31B4) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/NbTKwmlk.png)
1
Yamaha Motors
LEG SHIELD 131B-F8311-00-P2
Required: 1
LEG SHIELD 1
Price unavailable
1
Yamaha Motors
LEG SHIELD 131B-F8311-00-P1
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
DAMPER 114D-F8415-10
Required: 2
DAMPER 1
Price unavailable
3
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
4
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
6
Yamaha Motors
HOLDER, WIRE31B-F835W-00
Required: 1
HOLDER, WIRE
Price unavailable
7
Yamaha Motors
PANEL, FRONT31B-F3391-00-P1
Required: 1
PANEL, FRONT
Price unavailable
7
Yamaha Motors
PANEL, FRONT31B-F3391-00-P0
Required: 1
PANEL, FRONT
Price unavailable
-15%
$2.00
You save $0.35
9
Yamaha Motors
EMBLEM 131B-F313B-00
Required: 1
EMBLEM 1
Price unavailable
-15%
10
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
11
Yamaha Motors
BRACKET, NUMBER PLATE5TP-H454E-01
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
-15%
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Yamaha Motors
LEG SHIELD 231B-F8312-00
Required: 1
LEG SHIELD 2
Price unavailable
-15%
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 10
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
16
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
17
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 1
SCREW, WITH WASHER
Price unavailable
18
Yamaha Motors
STAY 131B-F8321-00
Required: 1
STAY 1
Price unavailable
19
Yamaha Motors
STAY 231B-F8322-10
Required: 1
STAY 2
Price unavailable
20
Yamaha Motors
COLLAR90387-06841
Required: 2
COLLAR
Price unavailable
21
Yamaha Motors
GROMMET90480-13815
Required: 2
GROMMET
Price unavailable
-15%
22
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
$3.02
You save $0.53
-15%
$3.45
You save $0.61
24
Yamaha Motors
COVER, UNDER31B-F8385-00-P2
Required: 1
COVER, UNDER
Price unavailable
-15%
25
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
26
Yamaha Motors
COLLAR90387-09802
Required: 1
COLLAR
Price unavailable
-15%
27
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
-50%
28
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-15%
29
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
30
Yamaha Motors
COVER, UNDER 231B-F8395-00-P2
Required: 1
COVER, UNDER 2
Price unavailable
-15%
31
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
32
Yamaha Motors
COLLAR90387-09802
Required: 1
COLLAR
Price unavailable
-15%
33
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
-50%
34
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-15%
35
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
36
Yamaha Motors
COVER 231B-F842N-00
Required: 1
COVER 2
Price unavailable
-15%
37
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
38
Yamaha Motors
CAP31B-F8349-00-P0
Required: 1
CAP
Price unavailable
39
Yamaha Motors
Truss Screw97707-50010-00
Required: 4
SCREW, TAPPING
$0.40
40
Yamaha Motors
CAP 231B-F834J-00-P0
Required: 1
CAP 2
Price unavailable
41
Yamaha Motors
Truss Screw97707-50010-00
Required: 3
SCREW, TAPPING
$0.40
42
Yamaha Motors
GRAPHIC, 1331B-F832L-70
Required: 1
GRAPHIC, 13
Price unavailable
42
Yamaha Motors
GRAPHIC, 1331B-F832L-90
Required: 1
GRAPHIC, 13
Price unavailable
43
Yamaha Motors
GRAPHIC, 1431B-F831Y-70
Required: 1
GRAPHIC, 14
Price unavailable
43
Yamaha Motors
GRAPHIC, 1431B-F831Y-90
Required: 1
GRAPHIC, 14
Price unavailable
44
Yamaha Motors
GRAPHIC, 1531B-F832B-70
Required: 1
GRAPHIC, 15
Price unavailable
44
Yamaha Motors
GRAPHIC, 1531B-F832B-90
Required: 1
GRAPHIC, 15
Price unavailable
45
Yamaha Motors
GRAPHIC, 1631B-F832C-70
Required: 1
GRAPHIC, 16
Price unavailable
45
Yamaha Motors
GRAPHIC, 1631B-F832C-90
Required: 1
GRAPHIC, 16
Price unavailable
46
Yamaha Motors
TUNING FORK MARK31B-F836D-00
Required: 2
TUNING FORK MARK
Price unavailable
47
Yamaha Motors
GRAPHIC, 731B-F173X-90
Required: 1
GRAPHIC, 7
Price unavailable
47
Yamaha Motors
GRAPHIC, 731B-F173X-70
Required: 1
GRAPHIC, 7
Price unavailable
48
Yamaha Motors
GRAPHIC, 831B-F173Y-90
Required: 1
GRAPHIC, 8
Price unavailable
48
Yamaha Motors
GRAPHIC, 831B-F173Y-70
Required: 1
GRAPHIC, 8
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
