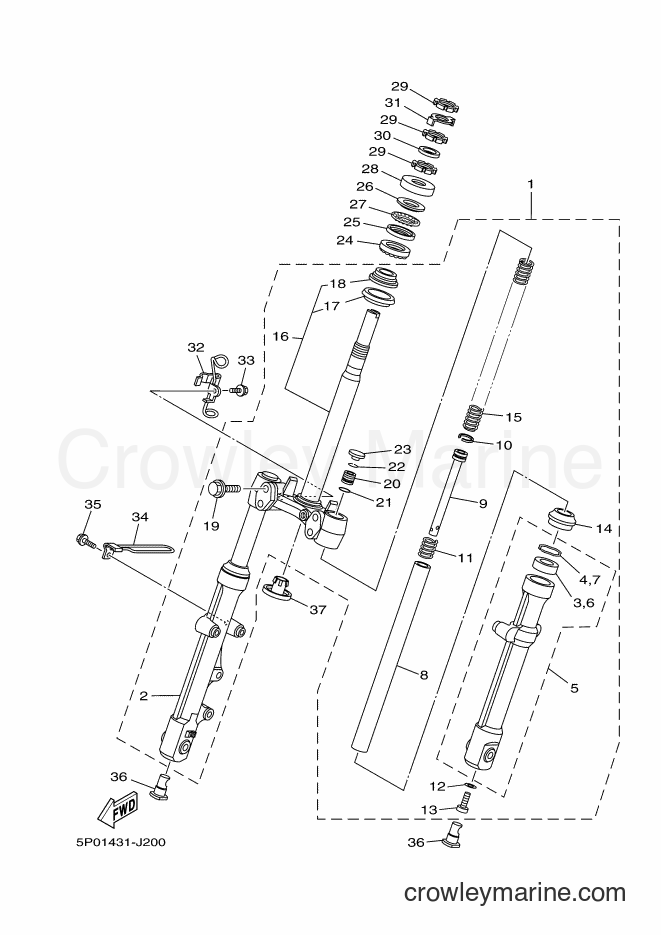

2011 Scooter AT135C - AT135C (5P08) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135C (5P08) [010] - STEERING
Change View:
FRONT FORK ASSY (BLACK)
1
Yamaha Motors
FRONT FORK ASSY (BLACK)5P0-F3100-00
Required: 1
FRONT FORK ASSY (BLACK)
Price unavailable
. TUBE, OUTER (RIGHT)
2
Yamaha Motors
. TUBE, OUTER (RIGHT)5P0-F3136-00
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
. . OIL SEAL
3
Yamaha Motors
. . OIL SEAL4XC-F3145-00
Required: 1
. . OIL SEAL
Price unavailable
. . RING, SNAP
4
Yamaha Motors
. . RING, SNAP5P0-F3156-00
Required: 1
. . RING, SNAP
Price unavailable
. TUBE, OUTER (LEFT)
5
Yamaha Motors
. TUBE, OUTER (LEFT)5P0-F3126-00
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
. . OIL SEAL
6
Yamaha Motors
. . OIL SEAL4XC-F3145-00
Required: 1
. . OIL SEAL
Price unavailable
. . RING, SNAP
7
Yamaha Motors
. . RING, SNAP5P0-F3156-00
Required: 1
. . RING, SNAP
Price unavailable
. INNER TUBE COMP.1
8
Yamaha Motors
. INNER TUBE COMP.15P0-F3110-00
Required: 2
. INNER TUBE COMP.1
Price unavailable
. CYLINDER COMP., FRONT FORK
9
Yamaha Motors
. CYLINDER COMP., FRONT FORK5P0-F3170-00
Required: 2
. CYLINDER COMP., FRONT FORK
Price unavailable
. RING, PISTON
10
Yamaha Motors
. RING, PISTON2JG-F3157-00
Required: 2
. RING, PISTON
Price unavailable
. SPRING, SUB
11
Yamaha Motors
. SPRING, SUB5NM-F3152-00
Required: 2
. SPRING, SUB
Price unavailable
-15%
Tank Cap Gasket
12
Yamaha Motors
Tank Cap Gasket509-23158-L0-00
Required: 2
. GASKET
Supersedes: 509-F3158-L0-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
. BOLT, HEXAGON SOCKET HEAD
13
Yamaha Motors
. BOLT, HEXAGON SOCKET HEAD278-F3181-50
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
. SEAL, DUST
14
Yamaha Motors
. SEAL, DUST4XC-F3144-00
Required: 2
. SEAL, DUST
Price unavailable
. SPRING, FRONT FORK
15
Yamaha Motors
. SPRING, FRONT FORK5P0-F3141-00
Required: 2
. SPRING, FRONT FORK
Price unavailable
. UNDER BRACKET COMP.
16
Yamaha Motors
. UNDER BRACKET COMP.5P0-F3340-00
Required: 1
. UNDER BRACKET COMP.
Price unavailable
. . SEAL, DUST
17
Yamaha Motors
. . SEAL, DUST5P0-F3462-00
Required: 1
. . SEAL, DUST
Price unavailable
. . BEARING, STEERING LOWER
18
Yamaha Motors
. . BEARING, STEERING LOWER5P0-F3875-00
Required: 1
. . BEARING, STEERING LOWER
Price unavailable
. BOLT 1
19
Yamaha Motors
. BOLT 14D0-F3346-00
Required: 4
. BOLT 1
Price unavailable
. BOLT, CAP
20
Yamaha Motors
. BOLT, CAP5P0-F3111-00
Required: 2
. BOLT, CAP
Price unavailable
. O-RING
21
Yamaha Motors
. O-RING2JG-F3147-00
Required: 2
. O-RING
Price unavailable
. RING, SNAP
22
Yamaha Motors
. RING, SNAP5P0-F3153-00
Required: 2
. RING, SNAP
Price unavailable
. CAP
23
Yamaha Motors
. CAP5P0-F3154-00
Required: 2
. CAP
Price unavailable
BEARING, STEERING UPPER
24
Yamaha Motors
BEARING, STEERING UPPER5P0-F3873-00
Required: 1
BEARING, STEERING UPPER
Price unavailable
RACE, BALL 2
25
Yamaha Motors
RACE, BALL 222F-F3412-00
Required: 1
RACE, BALL 2
Price unavailable
RACE, BALL 1
26
Yamaha Motors
RACE, BALL 122F-F3411-00
Required: 1
RACE, BALL 1
Price unavailable
RETAINER, BALL BEARING
27
Yamaha Motors
RETAINER, BALL BEARING22F-F341E-01
Required: 1
RETAINER, BALL BEARING
Price unavailable
COVER, BALL RACE 2
28
Yamaha Motors
COVER, BALL RACE 25VV-F3416-00
Required: 1
COVER, BALL RACE 2
Price unavailable
-15%
SPECIAL SHAPE NUT
29
Yamaha Motors
SPECIAL SHAPE NUT90179-25615-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
-15%
Plate Washer
30
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
WASHER, SPECIAL
31
Yamaha Motors
WASHER, SPECIAL5P0-F3418-00
Required: 1
WASHER, SPECIAL
Price unavailable
HOLDER, BRAKE HOSE 1
32
Yamaha Motors
HOLDER, BRAKE HOSE 15P0-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
HOLDER, BRAKE HOSE 2
34
Yamaha Motors
HOLDER, BRAKE HOSE 25P0-F5876-00
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
-15%
Flange Bolt
35
Yamaha Motors
Flange Bolt95807-06016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
PLUG, BLIND
36
Yamaha Motors
PLUG, BLIND5P0-F5139-00
Required: 2
PLUG, BLIND
Price unavailable
COVER, UNDER 1
37
Yamaha Motors
COVER, UNDER 15P0-F3123-00
Required: 1
COVER, UNDER 1
Price unavailable
