All diagrams for this model

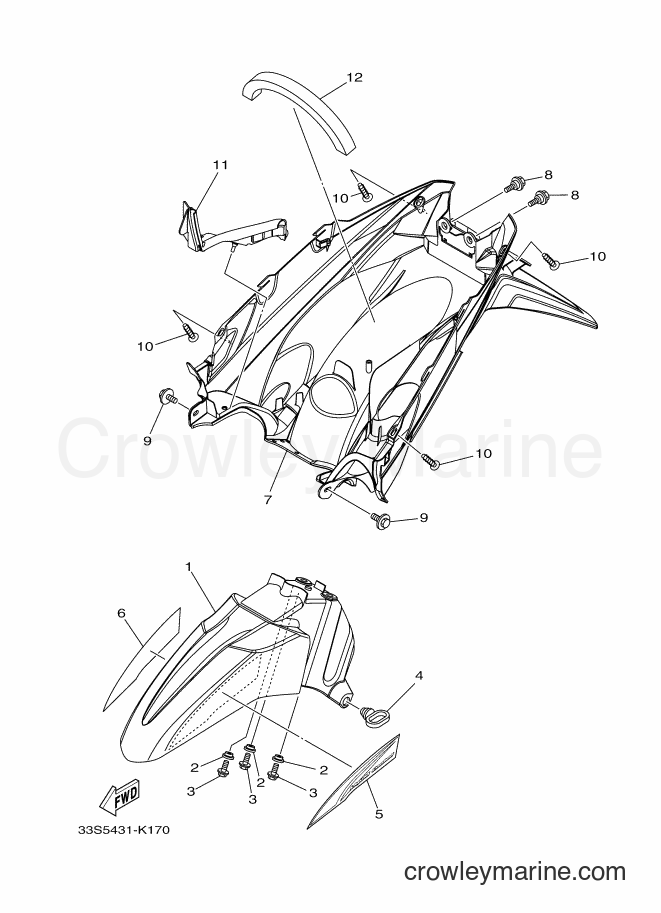

2011 Scooter AL125 - AL125 (33S7) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125 (33S7) [010] - FENDER
Change View:
FENDER, FRONT (0903,SMX)
1
Yamaha Motors
FENDER, FRONT (0903,SMX)33S-F1511-00-P6
Required: 1
FENDER, FRONT (0903,SMX)
Price unavailable
FENDER, FRONT (1124,WM6)
1
Yamaha Motors
FENDER, FRONT (1124,WM6)33S-F1511-00-P1
Required: 1
FENDER, FRONT (1124,WM6)
Price unavailable
COLLAR
2
Yamaha Motors
COLLAR90387-06804
Required: 3
COLLAR
Price unavailable
HOLDER, CABLE
4
Yamaha Motors
HOLDER, CABLE5R7-F1518-10
Required: 1
HOLDER, CABLE
Price unavailable
GRAPHIC 7
5
Yamaha Motors
GRAPHIC 733S-F158A-00
Required: 1
GRAPHIC 7
Price unavailable
GRAPHIC 8
6
Yamaha Motors
GRAPHIC 833S-F158B-00
Required: 1
GRAPHIC 8
Price unavailable
FENDER, REAR
7
Yamaha Motors
FENDER, REAR33S-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-15%
BOLT
8
Yamaha Motors
BOLT90109-06220-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
-15%
Bolt with Washer
9
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
Truss Screw
10
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PROTECTOR
11
Yamaha Motors
PROTECTOR33S-F1652-00
Required: 1
PROTECTOR
Price unavailable
DAMPER, PLATE
12
Yamaha Motors
DAMPER, PLATE90520-20803
Required: 1
DAMPER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
