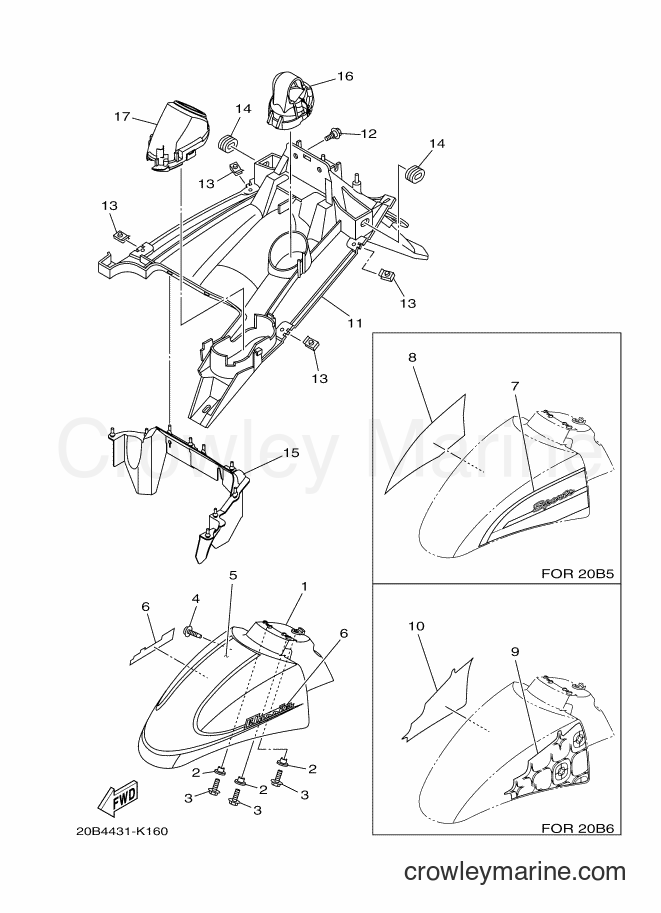

2011 Scooter AF115S - AF115S (20B4) [010] FENDER diagram
![Yamaha Motors AF115S (20B4) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/gUMLGqtV.png)
1
Yamaha Motors
FENDER, FRONT (001A,NW)4D0-F1511-00-1A
Required: 1
FENDER, FRONT (001A,NW)
Price unavailable
1
Yamaha Motors
FENDER, FRONT (0903,SMX)4D0-F1511-00-P2
Required: 1
FENDER, FRONT (0903,SMX)
Price unavailable
1
Yamaha Motors
FENDER, FRONT (1124,WM6)4D0-F1511-00-PF
Required: 1
FENDER, FRONT (1124,WM6)
Price unavailable
2
Yamaha Motors
COLLAR90387-06804
Required: 3
COLLAR
Price unavailable
-50%
3
Yamaha Motors
Flange Bolt95817-06014-00
Required: 3
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$1.40
You save $1.40
4
Yamaha Motors
SCREW, WITH WASHER90159-06801
Required: 1
SCREW, WITH WASHER
Price unavailable
5
Yamaha Motors
GRAPHIC SET, FRONT FENDER20B-F1570-00
Required: 1
GRAPHIC SET, FRONT FENDER
Price unavailable
6
Yamaha Motors
EMBLEM, 220B-F1565-00
Required: 2
EMBLEM, 2
Price unavailable
7
Yamaha Motors
GRAPHIC, 120B-F1569-00
Required: 1
GRAPHIC, 1
Price unavailable
8
Yamaha Motors
GRAPHIC, 220B-F1579-00
Required: 1
GRAPHIC, 2
Price unavailable
9
Yamaha Motors
GRAPHIC, 320B-F1599-00
Required: 1
GRAPHIC, 3
Price unavailable
10
Yamaha Motors
GRAPHIC, 420B-F15A9-00
Required: 1
GRAPHIC, 4
Price unavailable
11
Yamaha Motors
FENDER, REAR4D0-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-15%
$2.63
You save $0.47
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Yamaha Motors
GROMMET90480-01805
Required: 2
GROMMET
Price unavailable
15
Yamaha Motors
FLAP4D0-F1621-00
Required: 1
FLAP
Price unavailable
16
Yamaha Motors
COVER, REAR FENDER 14D0-F163A-00
Required: 1
COVER, REAR FENDER 1
Price unavailable
17
Yamaha Motors
COVER, REAR FENDER 24D0-F163E-00
Required: 1
COVER, REAR FENDER 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
