2009 Scooter YP125R - YP125R (1B97) [060] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

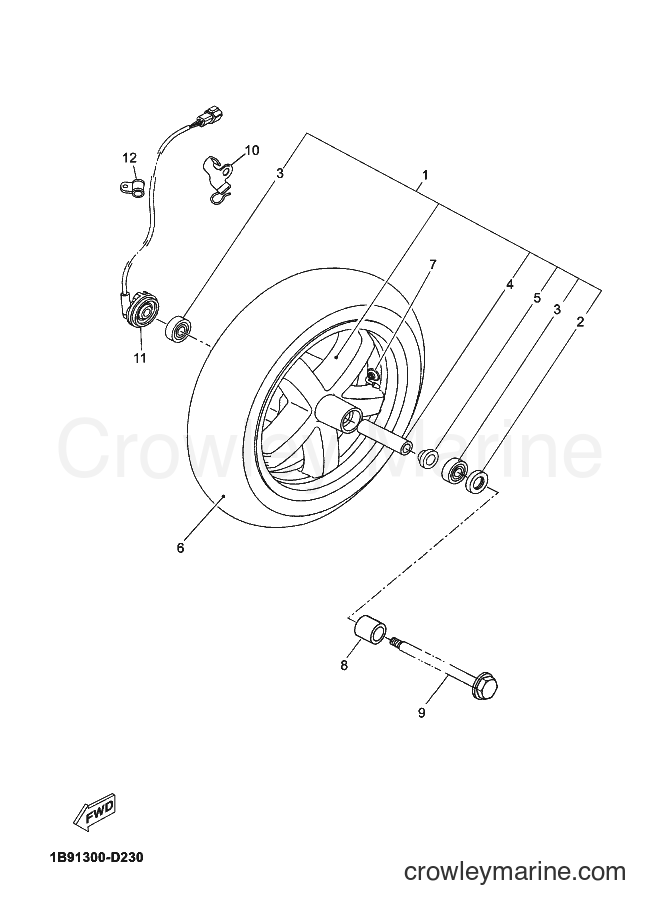

Yamaha Motors YP125R (1B97) [060] - FRONT WHEEL
Change View:
CAST WHEEL, FRONT
1
Yamaha Motors
CAST WHEEL, FRONT1B9-F5160-50
Required: 1
CAST WHEEL, FRONT
Price unavailable
CAST WHEEL, FRONT
1
Yamaha Motors
CAST WHEEL, FRONT1B9-F5160-30
Required: 1
CAST WHEEL, FRONT
Price unavailable
CAST WHEEL, FRONT
1
Yamaha Motors
CAST WHEEL, FRONT1B9-F5160-10
Required: 1
CAST WHEEL, FRONT
Price unavailable
. SEAL, DUST
2
Yamaha Motors
. SEAL, DUST1B9-F537Y-30
Required: 1
. SEAL, DUST
Price unavailable
. SEAL, DUST
2
Yamaha Motors
. SEAL, DUST1B9-F537Y-00
Required: 1
. SEAL, DUST
Price unavailable
. BEARING
3
Yamaha Motors
. BEARING93306-202YU
Required: 2
. BEARING
Price unavailable
. BEARING
3
Yamaha Motors
. BEARING1B9-F2176-30
Required: 2
. BEARING
Price unavailable
. BEARING
3
Yamaha Motors
. BEARING1B9-F2176-00
Required: 2
. BEARING
Price unavailable
. SPACER, BEARING
4
Yamaha Motors
. SPACER, BEARING1B9-F5117-30
Required: 1
. SPACER, BEARING
Price unavailable
. SPACER, BEARING
4
Yamaha Motors
. SPACER, BEARING1B9-F5117-10
Required: 1
. SPACER, BEARING
Price unavailable
. SPACER, BEARING
4
Yamaha Motors
. SPACER, BEARING1B9-F5117-00
Required: 1
. SPACER, BEARING
Price unavailable
. FLANGE, SPACER 1
5
Yamaha Motors
. FLANGE, SPACER 11B9-F5115-30
Required: 1
. FLANGE, SPACER 1
Price unavailable
. FLANGE, SPACER 1
5
Yamaha Motors
. FLANGE, SPACER 11B9-F5115-00
Required: 1
. FLANGE, SPACER 1
Price unavailable
AIR VALVE ASSY
7
Yamaha Motors
AIR VALVE ASSY5BR-F5170-00
Required: 1
AIR VALVE ASSY
Price unavailable
COLLAR
8
Yamaha Motors
COLLAR90387-15X09
Required: 1
COLLAR
Price unavailable
AXLE, WHEEL
9
Yamaha Motors
AXLE, WHEEL1B9-F5181-00
Required: 1
AXLE, WHEEL
Price unavailable
HOLDER, CABLE
10
Yamaha Motors
HOLDER, CABLE1B9-F3317-01
Required: 1
HOLDER, CABLE
Price unavailable
SENSOR, UNIT
11
Yamaha Motors
SENSOR, UNIT1S6-H3756-01
Required: 1
SENSOR, UNIT
Price unavailable
CLAMP
12
Yamaha Motors
CLAMP90465-14X00
Required: 2
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
