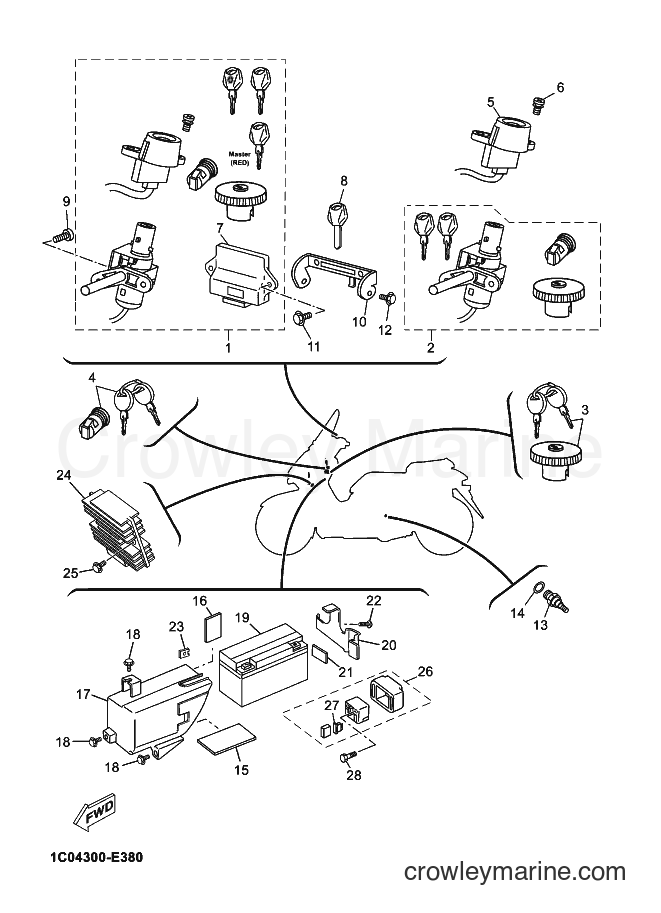

Yamaha Motors YP125R (1B97) [030] - ELECTRICAL 1
Change View:
MAIN SW. IMMOBILIZER KIT
1
Yamaha Motors
MAIN SW. IMMOBILIZER KIT1B9-WH250-20
Required: 1
MAIN SW. IMMOBILIZER KIT
Price unavailable
. KEY SET
2
Yamaha Motors
. KEY SET1C0-WH202-19
Required: 1
. KEY SET
Price unavailable
. . CAP ASSY WITH LOCK
3
Yamaha Motors
. . CAP ASSY WITH LOCK1C0-WF461-00
Required: 1
. . CAP ASSY WITH LOCK
Price unavailable
. . LOCK ASSY
4
Yamaha Motors
. . LOCK ASSY1C0-WF179-00
Required: 1
. . LOCK ASSY
Price unavailable
. IMMOBILIZER. UNIT COMP.
5
Yamaha Motors
. IMMOBILIZER. UNIT COMP.1B9-H255P-00
Required: 1
. IMMOBILIZER. UNIT COMP.
Price unavailable
. SCREW
6
Yamaha Motors
. SCREW5VU-82113-00
Required: 1
. SCREW
Price unavailable
. ENGINE CONTROL UNIT ASSY
7
Yamaha Motors
. ENGINE CONTROL UNIT ASSY1B9-8591A-00
Required: 1
. ENGINE CONTROL UNIT ASSY
Price unavailable
BLANK KEY
8
Yamaha Motors
BLANK KEY1C0-H2511-19
Required: 1
BLANK KEY
Price unavailable
BOLT
9
Yamaha Motors
BOLT90109-06X12
Required: 2
BOLT
Price unavailable
BRACKET
10
Yamaha Motors
BRACKET1C0-H1948-10
Required: 1
BRACKET
Price unavailable
-15%
Thermosensor Assembly
13
Yamaha Motors
Thermosensor Assembly5YP-85790-00-00
Required: 1
THERMOSENSOR ASSY
Cross Ship
Leaves in 2-5 days
$70.99
$60.34
You save $10.65
More details
GASKET
14
Yamaha Motors
GASKET90430-12X00
Required: 1
GASKET
Price unavailable
DAMPER
15
Yamaha Motors
DAMPER1B9-H2176-00
Required: 1
DAMPER
Price unavailable
DAMPER
16
Yamaha Motors
DAMPER1B9-H2176-10
Required: 1
DAMPER
Price unavailable
BOX, BATTERY 1
17
Yamaha Motors
BOX, BATTERY 11B9-H212B-01
Required: 1
BOX, BATTERY 1
Price unavailable
BOLT
18
Yamaha Motors
BOLT90109-06X05
Required: 3
BOLT
Price unavailable
BATTERY ASSY
19
Yamaha Motors
BATTERY ASSY1B9-H2100-00
Required: 1
BATTERY ASSY
Price unavailable
BRACKET, BATTERY
20
Yamaha Motors
BRACKET, BATTERY1B9-H2128-01
Required: 1
BRACKET, BATTERY
Price unavailable
DAMPER, LOCATING 3
21
Yamaha Motors
DAMPER, LOCATING 34MJ-F4183-00
Required: 1
DAMPER, LOCATING 3
Price unavailable
BOLT
22
Yamaha Motors
BOLT9700L-05016
Required: 1
BOLT
Price unavailable
NUT, SPRING
23
Yamaha Motors
NUT, SPRING90183-05817
Required: 1
NUT, SPRING
Price unavailable
-15%
Rectifier & Regulator Assembly
24
Yamaha Motors
Rectifier & Regulator Assembly5BN-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
1 aftermarket alternative
Cross Ship
Leaves in 2-5 days
$223.99
$190.39
You save $33.60
More details
BOLT, FLANGE
25
Yamaha Motors
BOLT, FLANGE9582N-06020
Required: 2
BOLT, FLANGE
Price unavailable
-15%
Starter Relay Assembly
26
Yamaha Motors
Starter Relay Assembly4YR-81940-02-00
Required: 1
STARTER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$152.99
$130.04
You save $22.95
More details
-15%
Fuse (30A-Bl)
27
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT
28
Yamaha Motors
BOLT9701L-06008
Required: 2
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
