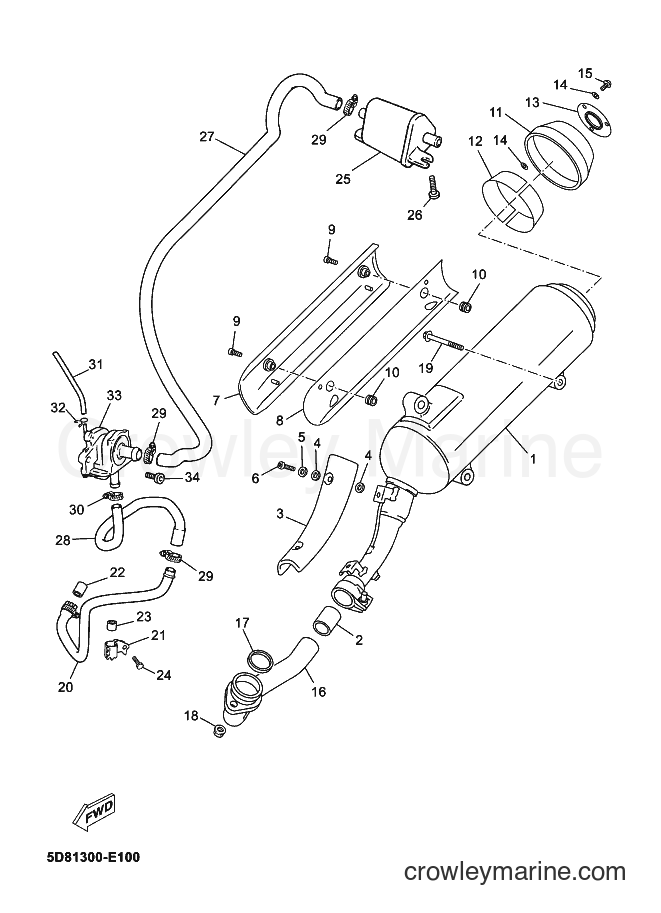

2009 Scooter YP125E - YP125E (5D85) [030] EXHAUST diagram
![Yamaha Motors YP125E (5D85) [030] - EXHAUST](https://cdn.crowleymarine.com/yamaha/AujvylOo.png)
1
Yamaha Motors
MUFFLER 15D8-E4711-00
Required: 1
MUFFLER 1
Price unavailable
2
Yamaha Motors
GASKET, MUFFLER1B9-14714-00
Required: 1
GASKET, MUFFLER
Price unavailable
3
Yamaha Motors
PROTECTOR, EXHAUST PIPE5D8-E4628-00
Required: 1
PROTECTOR, EXHAUST PIPE
Price unavailable
-15%
4
Yamaha Motors
WASHER PROTECTOR4BD-14766-00-00
Required: 4
WASHER, PROTECTOR
$5.09
You save $0.90
-15%
$8.07
You save $1.42
-15%
6
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 2
BOLT, BUTTON HEAD
$2.25
You save $0.40
7
Yamaha Motors
PROTECTOR, (PAINTED)1S6-E4718-10
Required: 1
PROTECTOR, (PAINTED)
Price unavailable
8
Yamaha Motors
PROTECTOR, MUFFLER 35GM-14738-00
Required: 1
PROTECTOR, MUFFLER 3
Price unavailable
-15%
9
Yamaha Motors
BOLT90111-06015-00
Required: 2
BOLT,HEX. SOCKET BUTTON
$8.07
You save $1.42
-15%
10
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10017-00
Required: 2
GROMMET
Supersedes: 90480-10332-00
$8.07
You save $1.42
11
Yamaha Motors
CAP (PAINTED)1S6-E4799-10
Required: 1
CAP (PAINTED)
Price unavailable
12
Yamaha Motors
PROTECTOR, MUFFLER 25GM-14728-00
Required: 2
PROTECTOR, MUFFLER 2
Price unavailable
13
Yamaha Motors
PLATE5GM-1482K-00
Required: 1
PLATE
Price unavailable
14
Yamaha Motors
WASHER, PROTECTOR5RB-14766-00
Required: 6
WASHER, PROTECTOR
Price unavailable
-15%
15
Yamaha Motors
BOLT90111-06020-00
Required: 3
BOLT,HEX. SOCKET BUTTON
$7.22
You save $1.27
16
Yamaha Motors
PIPE, EXHAUST 15D8-E4611-00
Required: 1
PIPE, EXHAUST 1
Price unavailable
17
Yamaha Motors
GASKET, EXHAUST PIPE5DS-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
-15%
18
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42
-15%
$3.49
You save $0.62
20
Yamaha Motors
PIPE 25XL-E4872-00
Required: 1
PIPE 2
Price unavailable
21
Yamaha Motors
GUIDE 15XL-E479U-00
Required: 1
GUIDE 1
Price unavailable
-15%
22
Yamaha Motors
Muffler Gasket42H-14714-10-00
Required: 1
GASKET, MUFFLER
$23.79
You save $4.20
23
Yamaha Motors
GROMMET90480-11X04
Required: 1
GROMMET
Price unavailable
-15%
24
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 1
BOLT
Supersedes: 9131L-06016-00
$1.10
You save $0.20
-15%
25
Yamaha Motors
AIR Filter CASE COMP4CW-E4806-00-00
Required: 1
AIR FILTER CASE ASSY.
No longer availableSearch Nationwide Inventory
$8.07
You save $1.42
-15%
26
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 9580M-06012-00
No longer availableSearch Nationwide Inventory
$0.64
You save $0.11
27
Yamaha Motors
HOSE, BEND 45XL-E4884-00
Required: 1
HOSE, BEND 4
Price unavailable
28
Yamaha Motors
HOSE, BEND 35XL-E4883-00
Required: 1
HOSE, BEND 3
Price unavailable
-15%
$3.61
You save $0.64
30
Yamaha Motors
CLIP90467-15X00
Required: 1
CLIP
Price unavailable
31
Yamaha Motors
HOSE, VACUUM SENSING 15NR-E3542-00
Required: 1
HOSE, VACUUM SENSING 1
Price unavailable
32
Yamaha Motors
CLIP90467-09X00
Required: 1
CLIP
Price unavailable
33
Yamaha Motors
AIR INDUCTION SYSTEM ASSY5SE-E4803-01
Required: 1
AIR INDUCTION SYSTEM ASSY
Price unavailable
-15%
34
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 2
BOLT
Supersedes: 9131M-06020-00
$2.25
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
