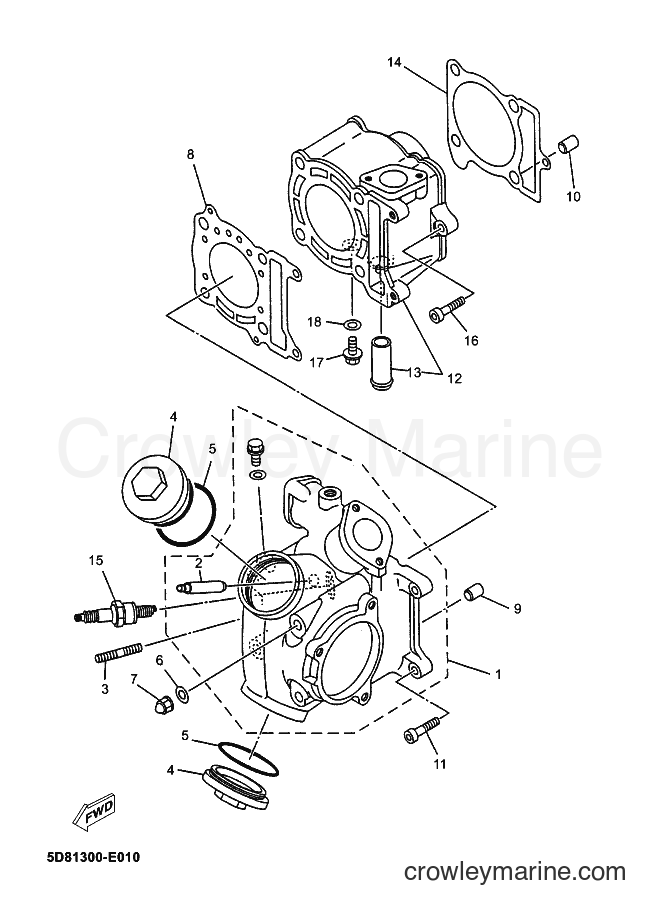

2009 Scooter YP125E - YP125E (5D85) [020] CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125E (5D85) [020] - CYLINDER HEAD
Change View:
CYLINDER HEAD ASSY
1
Yamaha Motors
CYLINDER HEAD ASSY5XL-E1102-00
Required: 1
CYLINDER HEAD ASSY
Price unavailable
. GUIDE, VALVE 1
2
Yamaha Motors
. GUIDE, VALVE 13UH-11133-10
Required: 2
. GUIDE, VALVE 1
Price unavailable
BOLT, STUD
3
Yamaha Motors
BOLT, STUD90116-08X03
Required: 2
BOLT, STUD
Price unavailable
COVER, CYLINDER HEAD SIDE 2
4
Yamaha Motors
COVER, CYLINDER HEAD SIDE 25DS-E1186-00
Required: 2
COVER, CYLINDER HEAD SIDE 2
Price unavailable
O-RING
5
Yamaha Motors
O-RING93210-44X00
Required: 2
O-RING
Price unavailable
WASHER, PLATE
6
Yamaha Motors
WASHER, PLATE90201-08X21
Required: 4
WASHER, PLATE
Price unavailable
-15%
Crown Nut
7
Yamaha Motors
Crown Nut90176-08026-00
Required: 4
NUT, CROWN
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
GASKET, CYLINDER HEAD 1
8
Yamaha Motors
GASKET, CYLINDER HEAD 15DS-E1181-00
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
PIN, DOWEL
9
Yamaha Motors
PIN, DOWEL91810-14X00
Required: 2
PIN, DOWEL
Price unavailable
PIN, DOWEL
10
Yamaha Motors
PIN, DOWEL91810-14X00
Required: 2
PIN, DOWEL
Price unavailable
BOLT, HEXAGON SOCKET HEAD
11
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06X04
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
CYLINDER 1
12
Yamaha Motors
CYLINDER 15DS-E1311-00
Required: 1
CYLINDER 1
Price unavailable
-15%
Joint
13
Yamaha Motors
Joint11H-12469-00-00
Required: 1
. JOINT 1
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
GASKET, CYLINDER
14
Yamaha Motors
GASKET, CYLINDER5DS-11351-00
Required: 1
GASKET, CYLINDER
Price unavailable
PLUG, SPARK (NGK CR8E)
15
Yamaha Motors
PLUG, SPARK (NGK CR8E)94700-00X00
Required: 1
PLUG, SPARK (NGK CR8E)
Price unavailable
BOLT, HEXAGON SOCKET HEAD
16
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06X04
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
BOLT, FLANGE
17
Yamaha Motors
BOLT, FLANGE90105-06X04
Required: 1
BOLT, FLANGE
Price unavailable
WASHER, PLATE
18
Yamaha Motors
WASHER, PLATE90201-06X09
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
