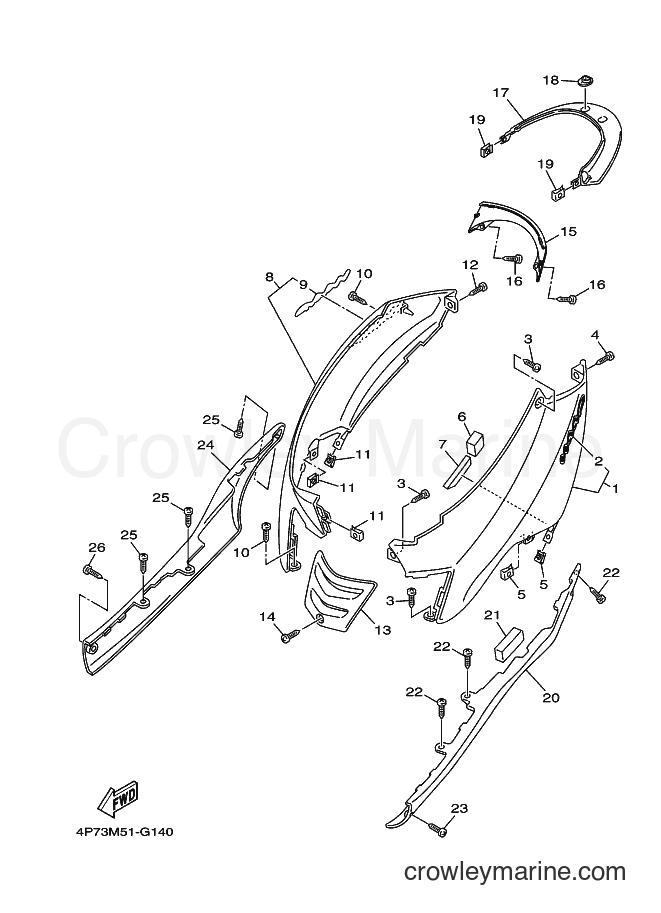

2009 Scooter XC125E - XC125E (4P75) [010] SIDE COVER diagram
![Yamaha Motors XC125E (4P75) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/8Y1GTR3q.png)
1
Yamaha Motors
COVER, SIDE 14P7-X2171-20-P2
Required: 1
COVER, SIDE 1
Price unavailable
2
Yamaha Motors
. GRAPHIC 44P7-F174H-20
Required: 1
. GRAPHIC 4
Price unavailable
-15%
3
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
-15%
4
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
6
Yamaha Motors
DAMPER4P7-F1717-00
Required: 1
DAMPER
Price unavailable
7
Yamaha Motors
DAMPER5WG-F1746-00
Required: 1
DAMPER
Price unavailable
8
Yamaha Motors
COVER, SIDE 24P7-X2172-20-P2
Required: 1
COVER, SIDE 2
Price unavailable
9
Yamaha Motors
. GRAPHIC 44P7-F174H-20
Required: 1
. GRAPHIC 4
Price unavailable
-15%
10
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
-50%
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-15%
12
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
13
Yamaha Motors
COVER, SIDE 35WG-F1731-00-P0
Required: 1
COVER, SIDE 3
Price unavailable
-15%
14
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
15
Yamaha Motors
COVER, SIDE 45WG-F1741-00-P0
Required: 1
COVER, SIDE 4
Price unavailable
-15%
16
Yamaha Motors
Tapping Screw97780-50612-00
Required: 2
SCREW, TAPPING
Supersedes: 97780-50512-00
$3.82
You save $0.68
17
Yamaha Motors
COVER, SIDE 55WG-F171E-00-P0
Required: 1
COVER, SIDE 5
Price unavailable
18
Yamaha Motors
GROMMET5WG-F1773-00
Required: 2
GROMMET
Price unavailable
-50%
19
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
20
Yamaha Motors
MOLE, SIDE COVER 15WG-F171L-02-PA
Required: 1
MOLE, SIDE COVER 1
Price unavailable
21
Yamaha Motors
DAMPER5MH-F1717-00
Required: 1
DAMPER
Price unavailable
-15%
22
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
-15%
23
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
24
Yamaha Motors
MOLE, SIDE COVER 25WG-F171M-02-PA
Required: 1
MOLE, SIDE COVER 2
Price unavailable
-15%
25
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
-15%
26
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
