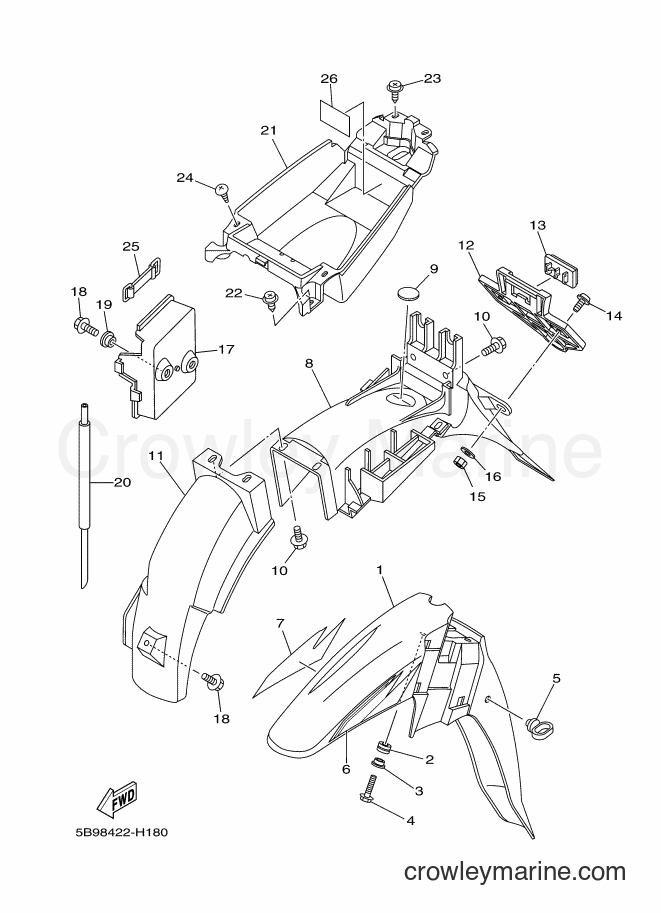

2009 Scooter T110SEC - T110SEC (5B9A) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SEC (5B9A) [010] - FENDER
Change View:
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT5VT-F1511-00-P0
Required: 1
FENDER, FRONT
Price unavailable
-20%
GROMMET, WATER TUBE (UPPER)
2
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12497-00
Required: 3
GROMMET
Supersedes: 90480-12314-00
1 aftermarket alternative
Cross Ship
Leaves in 2-5 days
$3.30
$2.64
You save $0.66
More details
-15%
COLLAR
3
Yamaha Motors
COLLAR90387-06737-00
Required: 3
COLLAR
Supersedes: 90387-068J7-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BOLT, WITH WASHER
4
Yamaha Motors
BOLT, WITH WASHER97527-06520
Required: 3
BOLT, WITH WASHER
Price unavailable
HOLDER, CABLE
5
Yamaha Motors
HOLDER, CABLE5SD-F1518-00
Required: 1
HOLDER, CABLE
Price unavailable
GRAPHIC, 1
6
Yamaha Motors
GRAPHIC, 15B9-F1569-00
Required: 1
GRAPHIC, 1
Price unavailable
GRAPHIC, 2
7
Yamaha Motors
GRAPHIC, 25B9-F1579-00
Required: 1
GRAPHIC, 2
Price unavailable
FENDER, REAR
8
Yamaha Motors
FENDER, REAR5SD-F1611-00
Required: 1
FENDER, REAR
Price unavailable
COVER 2
9
Yamaha Motors
COVER 25HU-F139R-00
Required: 1
COVER 2
Price unavailable
-15%
Bolt with Washer
10
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
GUARD, FLAP
11
Yamaha Motors
GUARD, FLAP5VT-F1642-00
Required: 1
GUARD, FLAP
Price unavailable
BRACKET, LICENSE
12
Yamaha Motors
BRACKET, LICENSE5B9-F1685-00
Required: 1
BRACKET, LICENSE
Price unavailable
REFLECTOR, FRONT 1
13
Yamaha Motors
REFLECTOR, FRONT 15VD-H5111-00
Required: 1
REFLECTOR, FRONT 1
Price unavailable
-15%
Screw with Washer
14
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Nut
15
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
BOX, BATTERY
17
Yamaha Motors
BOX, BATTERY5VT-F177G-00
Required: 1
BOX, BATTERY
Price unavailable
-15%
Bolt with Washer
18
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
COLLAR
19
Yamaha Motors
COLLAR90387-06832
Required: 2
COLLAR
Price unavailable
HOSE (L350)
20
Yamaha Motors
HOSE (L350)90445-08816
Required: 1
HOSE (L350)
Price unavailable
BOX
21
Yamaha Motors
BOX5SD-F160E-00
Required: 1
BOX
Price unavailable
SCREW, WITH WASHER
22
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
Screw with Washer
23
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Truss Screw
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BAND, BATTERY
25
Yamaha Motors
BAND, BATTERY5SD-H2131-00
Required: 1
BAND, BATTERY
Price unavailable
LABEL, CAUTION 2
26
Yamaha Motors
LABEL, CAUTION 22S0-F839Y-00
Required: 1
LABEL, CAUTION 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
