2009 Scooter T110LE - T110LE (45C1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

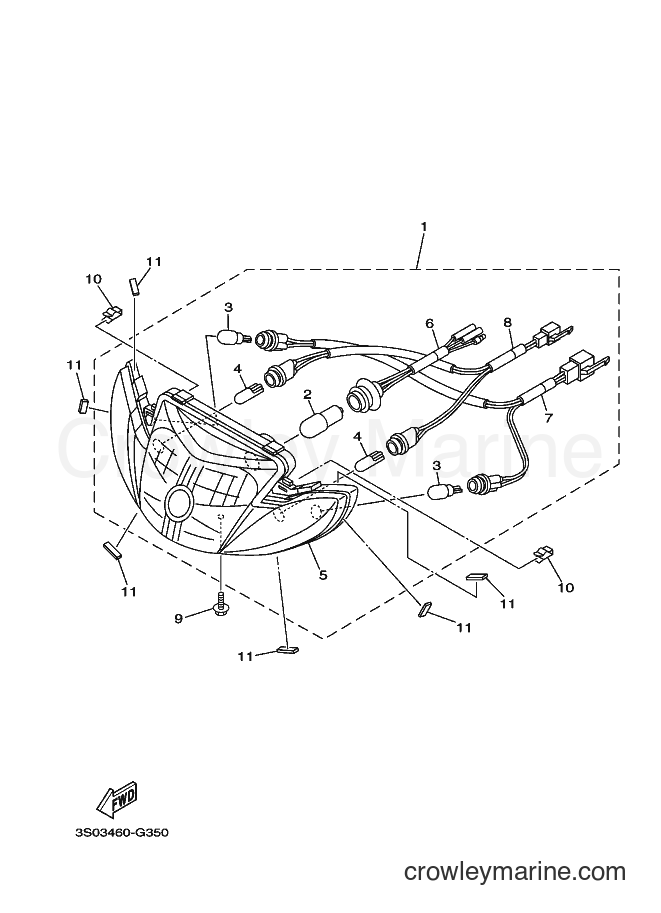

Yamaha Motors T110LE (45C1) [010] - HEADLIGHT

Change View:

Yamaha Motors

HEADLIGHT ASSY3S0-H4300-01

Required: 1

HEADLIGHT ASSY

Price unavailable

Yamaha Motors

. BULB (12V-32/32W)5HV-H4314-00

Required: 1

. BULB (12V-32/32W)

Price unavailable

Yamaha Motors

. BULB, FLASHER (12V-10W)5LL-H3311-00

Required: 2

. BULB, FLASHER (12V-10W)

Price unavailable

Yamaha Motors

. BULB (12V-5W)5YW-H4714-00

Required: 2

. BULB (12V-5W)

Price unavailable

Yamaha Motors

. HEADLIGHT UNIT ASSY3S0-H430A-00

Required: 1

. HEADLIGHT UNIT ASSY

Price unavailable

Yamaha Motors

. SOCKET CORD ASSY3S0-H4140-00

Required: 1

. SOCKET CORD ASSY

Price unavailable

Yamaha Motors

. CORD ASSY3S0-H4312-00

Required: 1

. CORD ASSY

Price unavailable

Yamaha Motors

. CORD ASSY3S0-H4546-00

Required: 1

. CORD ASSY

Price unavailable

-15%

Yamaha Motors

Flange Bolt95817-06010-00

Required: 1

BOLT, FLANGE

Supersedes: 95807-06010-00

In stock

Only 1 remaining

~~$5.49~~

$4.67

You save $0.82

More details

Yamaha Motors

CLIP3S0-H4374-00

Required: 2

CLIP

Price unavailable

Yamaha Motors

DAMPER5LM-F6113-00

Required: 6

DAMPER

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
