All diagrams for this model

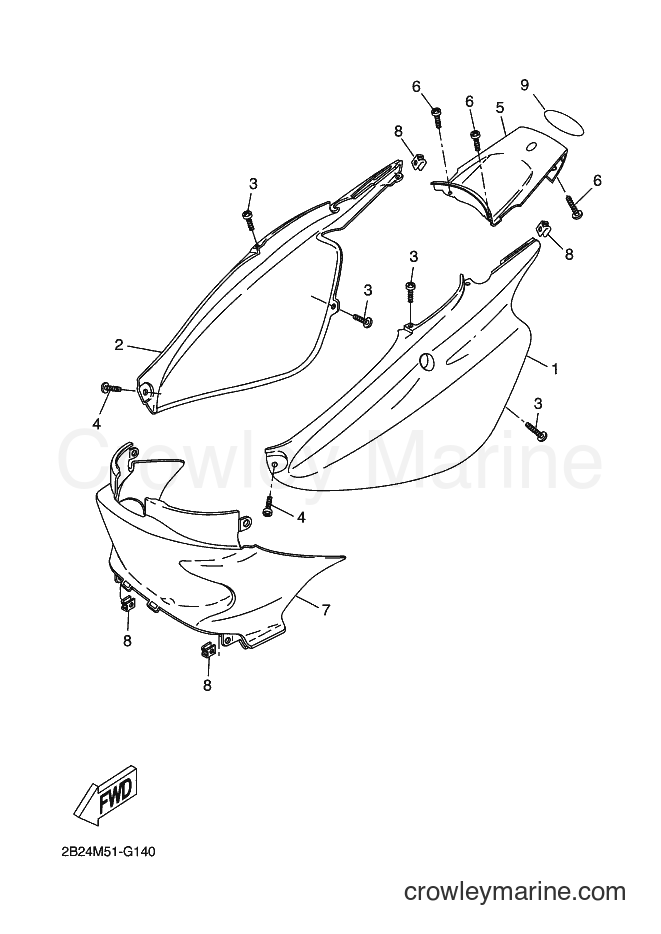

2009 Scooter CW50RS - CW50RS (2B19) [050] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RS (2B19) [050] - SIDE COVER
Change View:
COVER, SIDE 2
1
Yamaha Motors
COVER, SIDE 24SB-F1721-00-PN
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 3
2
Yamaha Motors
COVER, SIDE 34SB-F1731-00-PN
Required: 1
COVER, SIDE 3
Price unavailable
SCREW, TAPPING
4
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 2
SCREW, TAPPING
Price unavailable
COVER, SIDE 5
5
Yamaha Motors
COVER, SIDE 54VA-F171E-00-PK
Required: 1
COVER, SIDE 5
Price unavailable
COVER, SIDE 1
7
Yamaha Motors
COVER, SIDE 14SB-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
EMBLEM
9
Yamaha Motors
EMBLEM5EU-F8328-00
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
