2009 Scooter CS50Z - CS50Z (3D4W) [020] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

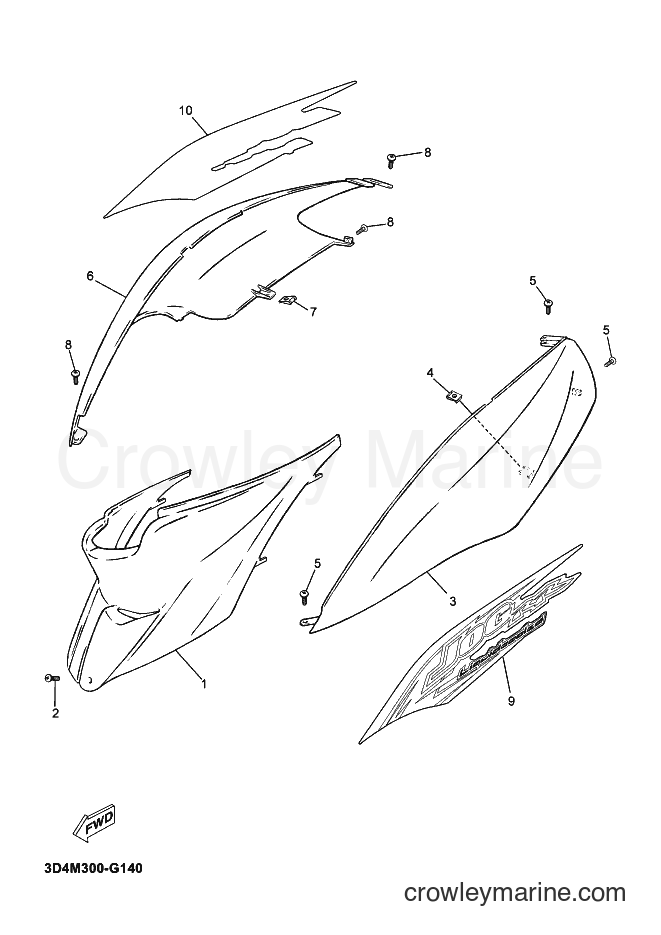

Yamaha Motors CS50Z (3D4W) [020] - SIDE COVER

Change View:

Yamaha Motors

COVER, SIDE 15RW-F1711-00

Required: 1

COVER, SIDE 1

Price unavailable

Yamaha Motors

SCREW, TAPPING90167-04X02

Required: 1

SCREW, TAPPING

Price unavailable

Yamaha Motors

COVER, SIDE 25RW-F1721-00-PB

Required: 1

COVER, SIDE 2

Price unavailable

Yamaha Motors

NUT, EMBLEM5DS-F8317-00

Required: 1

NUT, EMBLEM

Price unavailable

Yamaha Motors

SCREW, TAPPING90167-04X00

Required: 2

SCREW, TAPPING

Price unavailable

Yamaha Motors

COVER, SIDE 35RW-F1731-00-PB

Required: 1

COVER, SIDE 3

Price unavailable

Yamaha Motors

NUT, EMBLEM5DS-F8317-00

Required: 1

NUT, EMBLEM

Price unavailable

Yamaha Motors

SCREW, TAPPING90167-04X00

Required: 2

SCREW, TAPPING

Price unavailable

Yamaha Motors

EMBLEM 63D4-F1786-60

Required: 1

EMBLEM 6

Price unavailable

Yamaha Motors

EMBLEM 53D4-F1785-60

Required: 1

EMBLEM 5

Price unavailable
