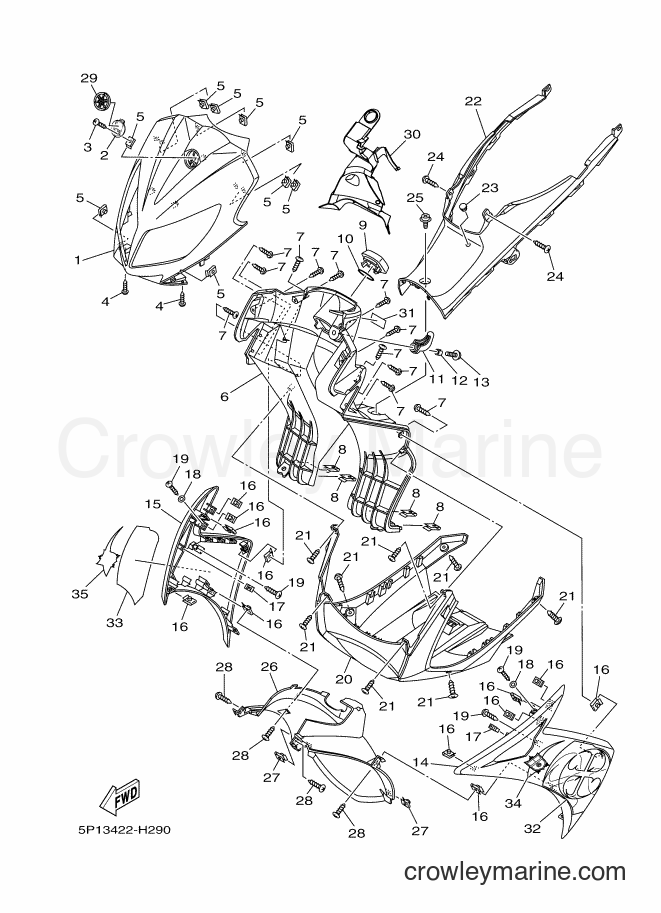

2009 Scooter AT135 - AT135 (5P13) [010] LEG SHIELD diagram
![Yamaha Motors AT135 (5P13) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/wvKA41kJ.png)
1
Yamaha Motors
LEG SHIELD 15P1-F8311-00-P4
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
SPACER5P1-F8329-00
Required: 1
SPACER
Price unavailable
-15%
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
4
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
5
Yamaha Motors
NUT, SPRING90183-05811
Required: 11
NUT, SPRING
Price unavailable
6
Yamaha Motors
LEG SHIELD ASSY5P1-F8300-10-P1
Required: 1
LEG SHIELD ASSY
Price unavailable
-15%
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 12
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Yamaha Motors
NUT, SPRING90183-05811
Required: 4
NUT, SPRING
Price unavailable
9
Yamaha Motors
COVER5P1-F8365-00
Required: 1
COVER
Price unavailable
10
Yamaha Motors
BAND5P1-F811G-00
Required: 1
BAND
Price unavailable
11
Yamaha Motors
HOOK 15VD-F8257-10
Required: 1
HOOK 1
Price unavailable
12
Yamaha Motors
COLLAR5P1-F8373-00
Required: 1
COLLAR
Price unavailable
13
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06815
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
14
Yamaha Motors
PANEL 15P1-F835U-00-P4
Required: 1
PANEL 1
Price unavailable
15
Yamaha Motors
PANEL 25P1-F835V-00-P4
Required: 1
PANEL 2
Price unavailable
16
Yamaha Motors
NUT, SPRING90183-05811
Required: 12
NUT, SPRING
Price unavailable
17
Yamaha Motors
HOOK4P8-F8379-00
Required: 2
HOOK
Price unavailable
-15%
18
Yamaha Motors
Plate Washer90201-05033-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72
-15%
19
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
20
Yamaha Motors
COVER, LOWER5P1-F8385-00
Required: 1
COVER, LOWER
Price unavailable
-15%
21
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
22
Yamaha Motors
COVER 25P1-F842N-00
Required: 1
COVER 2
Price unavailable
23
Yamaha Motors
PLUG, BLIND5HU-F6199-00
Required: 1
PLUG, BLIND
Price unavailable
-15%
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
25
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
26
Yamaha Motors
FENDER, INNER5P1-F1552-00
Required: 1
FENDER, INNER
Price unavailable
27
Yamaha Motors
NUT, SPRING90183-05811
Required: 2
NUT, SPRING
Price unavailable
-15%
28
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
29
Yamaha Motors
EMBLEM 15P1-F313B-00
Required: 1
EMBLEM 1
Price unavailable
30
Yamaha Motors
FLAP, FRONT FENDER5P1-F1521-00
Required: 1
FLAP, FRONT FENDER
Price unavailable
31
Yamaha Motors
LABEL, CAUTION5VD-F835Y-01
Required: 1
LABEL, CAUTION
Price unavailable
32
Yamaha Motors
GRAPHIC 75P1-F839A-00
Required: 1
GRAPHIC 7
Price unavailable
33
Yamaha Motors
GRAPHIC 85P1-F839E-00
Required: 1
GRAPHIC 8
Price unavailable
34
Yamaha Motors
GRAPHIC, 95P1-F839F-00
Required: 1
GRAPHIC, 9
Price unavailable
35
Yamaha Motors
GRAPHIC, 105P1-F839G-00
Required: 1
GRAPHIC, 10
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
