All diagrams for this model

2009 Scooter AL115C - AL115C (28DA) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

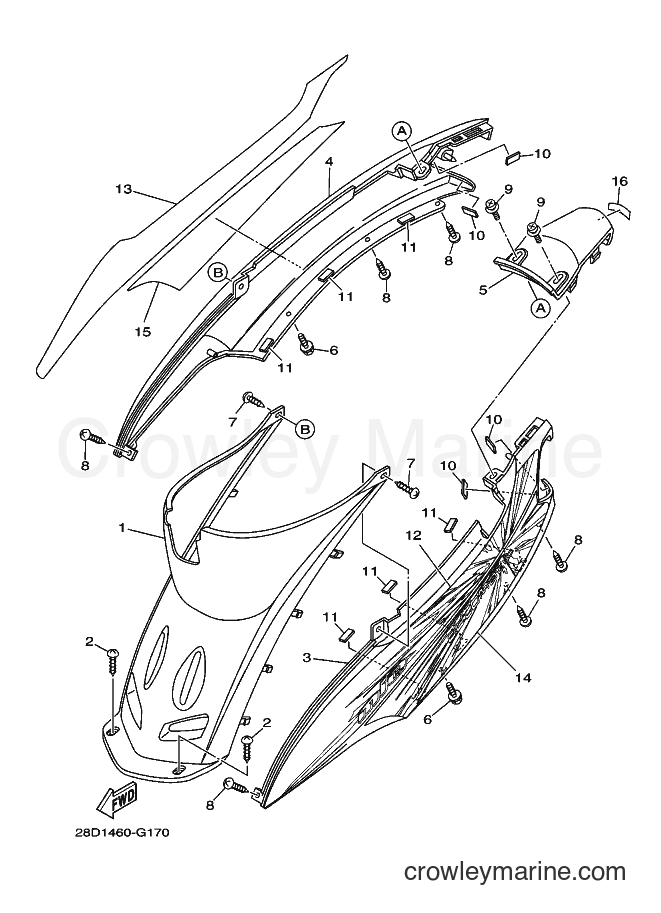

Yamaha Motors AL115C (28DA) [010] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 15TL-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
-15%
Truss Screw
2
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
COVER, SIDE 2
3
Yamaha Motors
COVER, SIDE 251S-F1721-00-P0
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 3
4
Yamaha Motors
COVER, SIDE 351S-F1731-00-P0
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 4
5
Yamaha Motors
COVER, SIDE 451S-F1741-00-P0
Required: 1
COVER, SIDE 4
Price unavailable
SCREW, TAPPING
6
Yamaha Motors
SCREW, TAPPING90163-05801
Required: 2
SCREW, TAPPING
Price unavailable
-15%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
-15%
Screw with Washer
9
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
DAMPER
10
Yamaha Motors
DAMPER5TL-F1746-00
Required: 4
DAMPER
Price unavailable
DAMPER
11
Yamaha Motors
DAMPER5LM-F8371-00
Required: 6
DAMPER
Price unavailable
GRAPHIC, 1
12
Yamaha Motors
GRAPHIC, 128D-F173E-30
Required: 1
GRAPHIC, 1
Price unavailable
GRAPHIC, 2
13
Yamaha Motors
GRAPHIC, 228D-F173F-30
Required: 1
GRAPHIC, 2
Price unavailable
GRAPHIC, 3
14
Yamaha Motors
GRAPHIC, 328D-F174G-30
Required: 1
GRAPHIC, 3
Price unavailable
GRAPHIC, 4
15
Yamaha Motors
GRAPHIC, 428D-F174H-30
Required: 1
GRAPHIC, 4
Price unavailable
EMBLEM, YAMAHA
16
Yamaha Motors
EMBLEM, YAMAHA3S0-F153E-20
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
