2009 Scooter AL115 - AL115 (5WR7) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

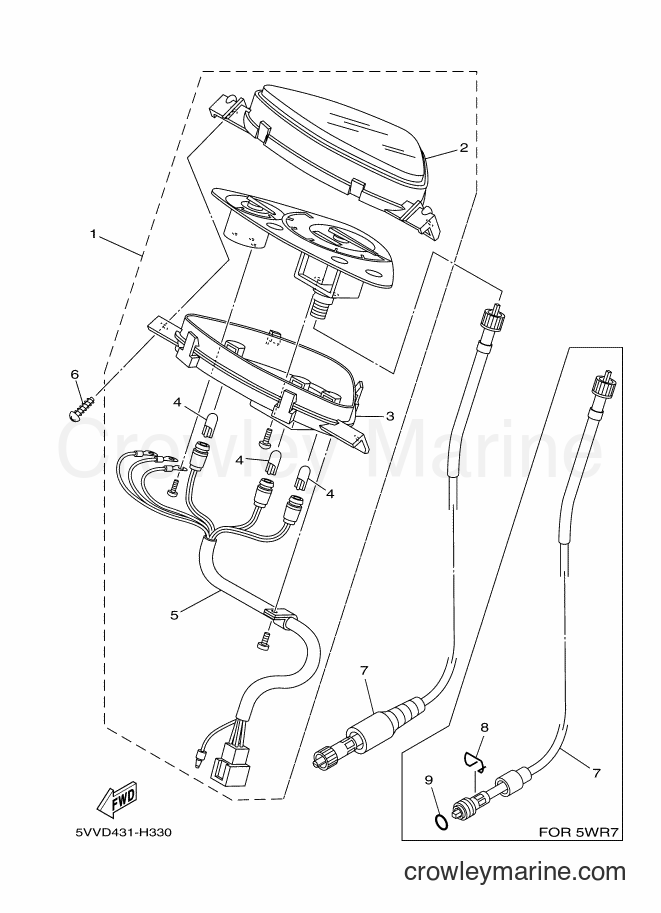

Yamaha Motors AL115 (5WR7) [010] - METER

Change View:

Yamaha Motors

SPEEDOMETER ASSY5VV-H3510-30

Required: 1

SPEEDOMETER ASSY

Price unavailable

Yamaha Motors

. LENS, SPEEDOMETER5TL-H3511-00

Required: 1

. LENS, SPEEDOMETER

Price unavailable

Yamaha Motors

. CASE, METER LOWER5TL-H353F-00

Required: 1

. CASE, METER LOWER

Price unavailable

Yamaha Motors

. BULB (T-6.5 12V-1.7W)2GV-H3517-00

Required: 3

. BULB (T-6.5 12V-1.7W)

Price unavailable

Yamaha Motors

. SOCKET CORD ASSY5VV-H3509-00

Required: 1

. SOCKET CORD ASSY

Price unavailable

-15%

Yamaha Motors

Truss Head Tapping Screw97707-50016-00

Required: 3

SCREW, TRUSS HEAD TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

More details

Yamaha Motors

SPEEDOMETER CABLE ASSY5WR-H3550-00

Required: 1

SPEEDOMETER CABLE ASSY

Price unavailable

Yamaha Motors

SPEEDOMETER CABLE ASSY5VV-H3550-00

Required: 1

SPEEDOMETER CABLE ASSY

Price unavailable

Yamaha Motors

RING, STOP2JH-F5137-00

Required: 1

RING, STOP

Price unavailable

Yamaha Motors

O-RING93210-108J3

Required: 1

O-RING

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
