All diagrams for this model

2009 Scooter AL115 - AL115 (5WR7) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

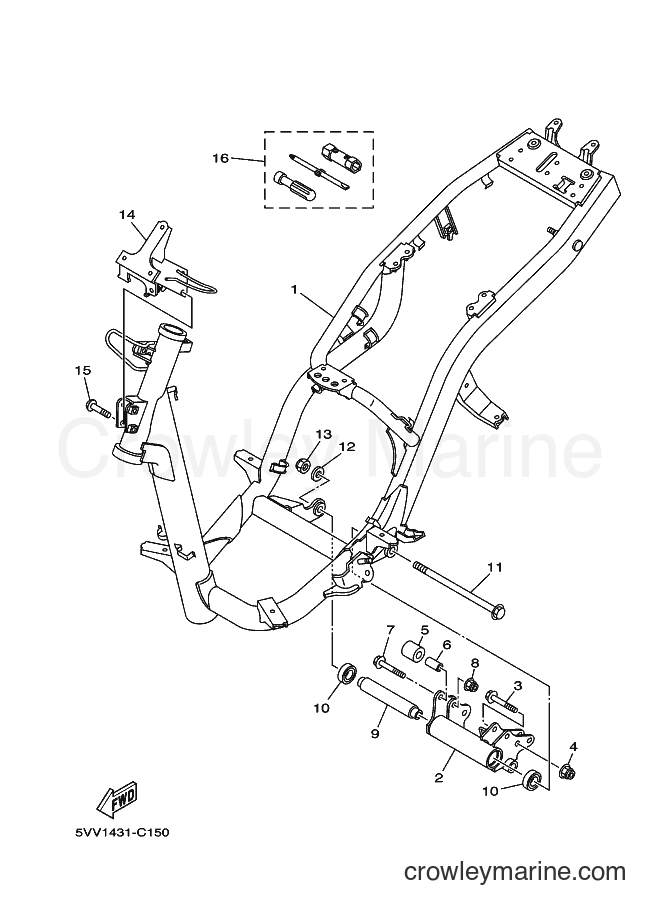

Yamaha Motors AL115 (5WR7) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.5VV-F1110-01
Required: 1
FRAME COMP.
Price unavailable
ENGINE BRACKET COMP.
2
Yamaha Motors
ENGINE BRACKET COMP.5VV-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
BOLT, FLANGE
3
Yamaha Motors
BOLT, FLANGE90105-10066
Required: 2
BOLT, FLANGE
Price unavailable
STOPPER, MAIN STAND
5
Yamaha Motors
STOPPER, MAIN STAND5MY-F7114-00
Required: 2
STOPPER, MAIN STAND
Price unavailable
-15%
COLLAR
6
Yamaha Motors
COLLAR90387-08754-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT, FLANGE
7
Yamaha Motors
BOLT, FLANGE90105-08048
Required: 2
BOLT, FLANGE
Price unavailable
-15%
Self Locking Nut
8
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SPACER
9
Yamaha Motors
SPACER5VV-F1459-00
Required: 1
SPACER
Price unavailable
BEARING
10
Yamaha Motors
BEARING93306-003X7
Required: 2
BEARING
Price unavailable
AXLE, WHEEL
11
Yamaha Motors
AXLE, WHEEL5VV-F5181-00
Required: 1
AXLE, WHEEL
Price unavailable
-15%
Plate Washer
12
Yamaha Motors
Plate Washer90201-124E4-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12688-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
NUT, SELF-LOCKING
13
Yamaha Motors
NUT, SELF-LOCKING90185-12802
Required: 1
NUT, SELF-LOCKING
Price unavailable
STAY 1
14
Yamaha Motors
STAY 15VV-F8356-10
Required: 1
STAY 1
Price unavailable
STAY 1
14
Yamaha Motors
STAY 15WR-F8356-10
Required: 1
STAY 1
Price unavailable
-15%
Button Bolt
15
Yamaha Motors
Button Bolt92017-08030-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
TOOL KIT
16
Yamaha Motors
TOOL KIT5VV-F8100-00
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
