2008 Scooter T135FI - T135FI (2S52) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

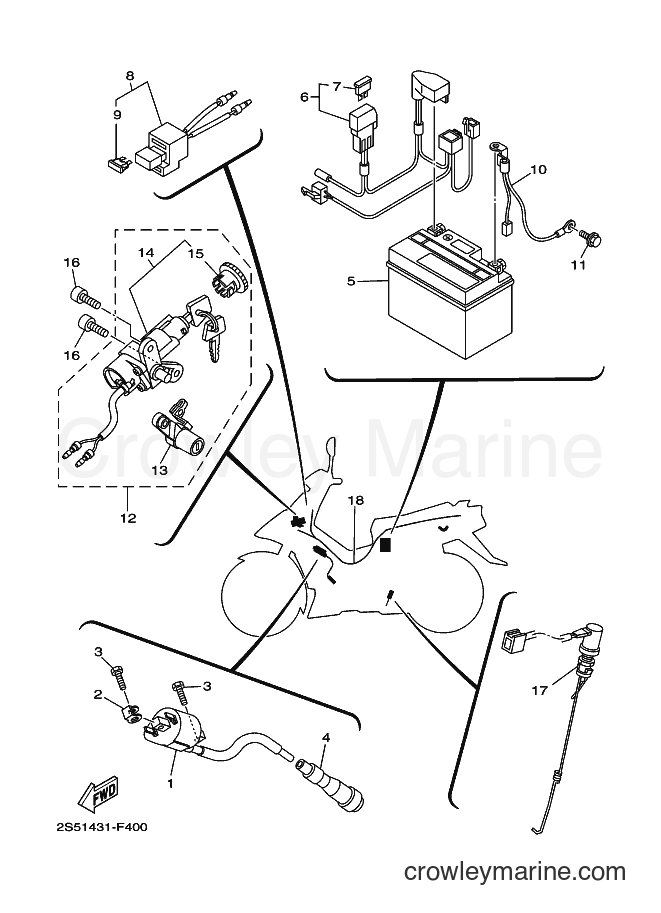

Yamaha Motors T135FI (2S52) [010] - ELECTRICAL 1
Change View:
IGNITION COIL ASSY
1
Yamaha Motors
IGNITION COIL ASSY2S5-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
DAMPER, IGNITION COIL
2
Yamaha Motors
DAMPER, IGNITION COIL2S5-H2317-00
Required: 2
DAMPER, IGNITION COIL
Price unavailable
-15%
Hexagon Bolt
3
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PLUG CAP ASSY
4
Yamaha Motors
PLUG CAP ASSY5YP-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
BATTERY ASSY (GS GTZ5S)
5
Yamaha Motors
BATTERY ASSY (GS GTZ5S)2S5-H2100-00
Required: 1
BATTERY ASSY (GS GTZ5S)
Price unavailable
FUSE HOLDER ASSY
6
Yamaha Motors
FUSE HOLDER ASSY2S5-H2150-00
Required: 1
FUSE HOLDER ASSY
Price unavailable
. FUSE (15A) BLUE
7
Yamaha Motors
. FUSE (15A) BLUE2S5-H2151-00
Required: 1
. FUSE (15A) BLUE
Price unavailable
FUSE HOLDER ASSY
8
Yamaha Motors
FUSE HOLDER ASSY2S5-H2150-10
Required: 1
FUSE HOLDER ASSY
Price unavailable
. FUSE (7.5A) BROWN
9
Yamaha Motors
. FUSE (7.5A) BROWN2S5-H2151-10
Required: 2
. FUSE (7.5A) BROWN
Price unavailable
WIRE, MINUS LEAD
10
Yamaha Motors
WIRE, MINUS LEAD2S5-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
-15%
Flange Bolt (4MY)
11
Yamaha Motors
Flange Bolt (4MY)95027-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
MAIN SW. STRG. LOCK SUB ASSY.
12
Yamaha Motors
MAIN SW. STRG. LOCK SUB ASSY.2S5-XH250-00
Required: 1
MAIN SW. STRG. LOCK SUB ASSY.
Price unavailable
. ROTOR ASSY
13
Yamaha Motors
. ROTOR ASSY5YP-F4799-00
Required: 1
. ROTOR ASSY
Price unavailable
. MAIN SWITCH STEERING LOCK
14
Yamaha Motors
. MAIN SWITCH STEERING LOCK2S5-H2501-00
Required: 1
. MAIN SWITCH STEERING LOCK
Price unavailable
. . CAP, SWITCH
15
Yamaha Motors
. . CAP, SWITCH5LN-H2552-00
Required: 1
. . CAP, SWITCH
Price unavailable
-15%
Screw (M8 X 40)
16
Yamaha Motors
Screw (M8 X 40)90149-06030-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
STOP SWITCH ASSY
17
Yamaha Motors
STOP SWITCH ASSY5YP-H2530-03
Required: 1
STOP SWITCH ASSY
Price unavailable
WIRE HARNESS ASSY
18
Yamaha Motors
WIRE HARNESS ASSY2S5-H2590-01
Required: 1
WIRE HARNESS ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
