All diagrams for this model

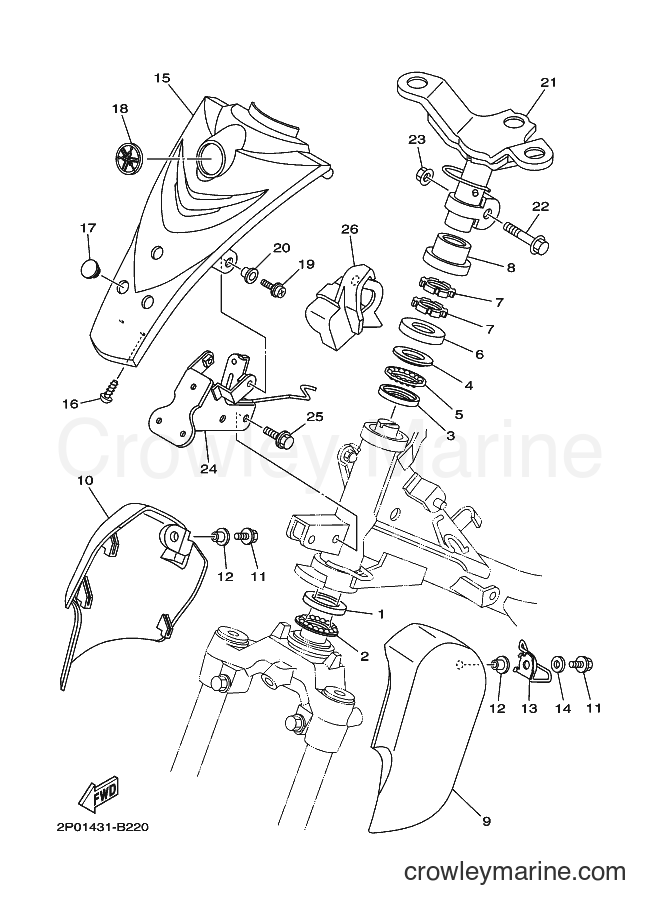

2008 Scooter T110S - T110S (2P08) [010] STEERING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110S (2P08) [010] - STEERING 2
Change View:
RACE, BALL 2
1
Yamaha Motors
RACE, BALL 2156-F3412-00
Required: 1
RACE, BALL 2
Price unavailable
RETAINER, BALL BEARING
2
Yamaha Motors
RETAINER, BALL BEARING156-F341E-01
Required: 1
RETAINER, BALL BEARING
Price unavailable
RACE, BALL 2
3
Yamaha Motors
RACE, BALL 222F-F3412-00
Required: 1
RACE, BALL 2
Price unavailable
RACE, BALL 1
4
Yamaha Motors
RACE, BALL 122F-F3411-00
Required: 1
RACE, BALL 1
Price unavailable
RETAINER, BALL BEARING
5
Yamaha Motors
RETAINER, BALL BEARING22F-F341E-01
Required: 1
RETAINER, BALL BEARING
Price unavailable
COVER, BALL RACE 2
6
Yamaha Motors
COVER, BALL RACE 22JH-F3416-00
Required: 1
COVER, BALL RACE 2
Price unavailable
-15%
Nut
7
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
COVER, BALL RACE 1
8
Yamaha Motors
COVER, BALL RACE 14VK-F3415-00
Required: 1
COVER, BALL RACE 1
Price unavailable
COVER, OUTER 1
9
Yamaha Motors
COVER, OUTER 15TN-F3122-00-P2
Required: 1
COVER, OUTER 1
Price unavailable
COVER, OUTER 2
10
Yamaha Motors
COVER, OUTER 25TN-F3132-00-P2
Required: 1
COVER, OUTER 2
Price unavailable
-15%
Washer Based Bolt
11
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
COLLAR
12
Yamaha Motors
COLLAR90387-06857-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
HOLDER, CABLE
13
Yamaha Motors
HOLDER, CABLE5VF-F3317-00
Required: 1
HOLDER, CABLE
Price unavailable
-15%
Plate Washer
14
Yamaha Motors
Plate Washer90201-06045-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PANEL, FRONT
15
Yamaha Motors
PANEL, FRONT2P0-F3391-00-P1
Required: 1
PANEL, FRONT
Price unavailable
-15%
Truss Screw
16
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PLUG
17
Yamaha Motors
PLUG90338-15800
Required: 3
PLUG
Price unavailable
EMBLEM
18
Yamaha Motors
EMBLEM5HV-F3108-20
Required: 1
EMBLEM
Price unavailable
SCREW, WITH WASHER
19
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
COLLAR
20
Yamaha Motors
COLLAR90387-062M9-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BRACKET, HANDLE
21
Yamaha Motors
BRACKET, HANDLE5TN-F3461-00
Required: 1
BRACKET, HANDLE
Price unavailable
-15%
Washer Based Bolt
22
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Self-Locking Nut
23
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
STAY
24
Yamaha Motors
STAY2P1-F331A-00
Required: 1
STAY
Price unavailable
-15%
Flange Bolt
25
Yamaha Motors
Flange Bolt95817-08030-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PROTECTOR
26
Yamaha Motors
PROTECTOR5TN-F3472-00
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
