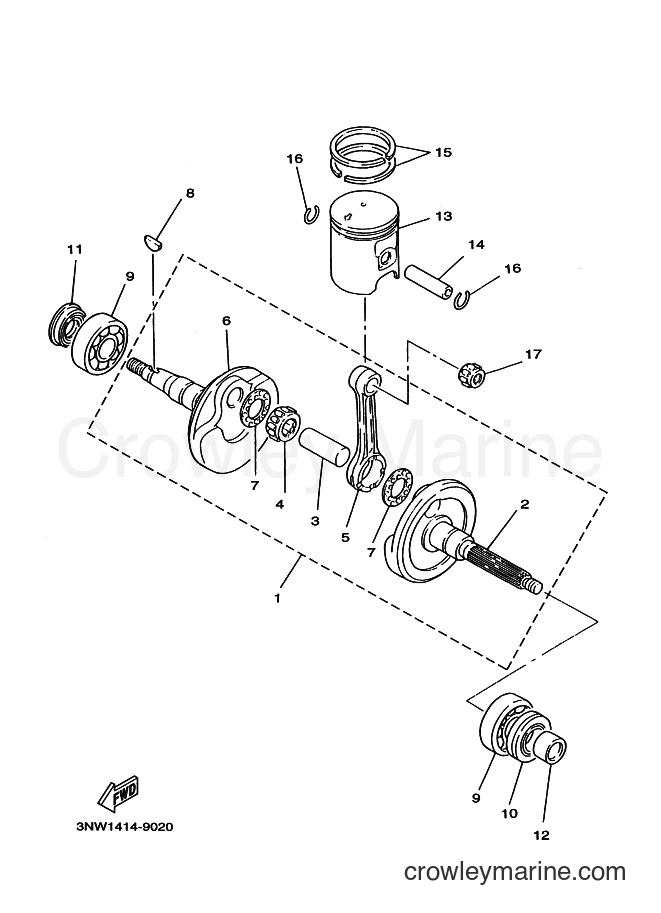

2007 Scooter YW100 - YW100 (1S54) [010] CRANKSHAFT & PISTON diagram
![Yamaha Motors YW100 (1S54) [010] - CRANKSHAFT & PISTON](https://cdn.crowleymarine.com/yamaha/bYwsWT2s.png)
1
Yamaha Motors
CRANKSHAFT ASSY4VP-E1400-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Yamaha Motors
. CRANK 14VP-E1412-00
Required: 1
. CRANK 1
Price unavailable
3
Yamaha Motors
. PIN, CRANK 14DM-E1681-00
Required: 1
. PIN, CRANK 1
Price unavailable
-15%
4
Yamaha Motors
93310-418C4-0093310-418T0-00
Required: 1
. BEARING
Supersedes: 93310-41810-00
No longer availableSearch Nationwide Inventory
$22.09
You save $3.90
5
Yamaha Motors
. ROD, CONNECTING4VP-E1651-00
Required: 1
. ROD, CONNECTING
Price unavailable
6
Yamaha Motors
. CRANK 24VP-E1422-00
Required: 1
. CRANK 2
Price unavailable
-15%
$9.77
You save $1.72
-15%
8
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
$7.22
You save $1.27
9
Yamaha Motors
BEARING93306-205Y6
Required: 2
BEARING
Price unavailable
10
Yamaha Motors
OIL SEAL93102-22464
Required: 1
OIL SEAL
Price unavailable
11
Yamaha Motors
OIL SEAL93101-20169
Required: 1
OIL SEAL
Price unavailable
12
Yamaha Motors
COLLAR90387-178N6
Required: 1
COLLAR
Price unavailable
13
Yamaha Motors
PISTON (STD)4VP-E1631-10-A0
Required: 1
PISTON (STD)
Price unavailable
13
Yamaha Motors
PISTON (0.50MM O/S)4VP-E1636-00
Required: 1
PISTON (0.50MM O/S)
Price unavailable
14
Yamaha Motors
PIN, PISTON4VP-E1633-00
Required: 1
PIN, PISTON
Price unavailable
15
Yamaha Motors
PISTON RING SET (0.50MM O/S)3YR-11605-00
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
15
Yamaha Motors
PISTON RING SET (STD)4VP-E1603-00
Required: 1
PISTON RING SET (STD)
Price unavailable
-15%
$3.57
You save $0.63
-15%
$29.74
You save $5.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
