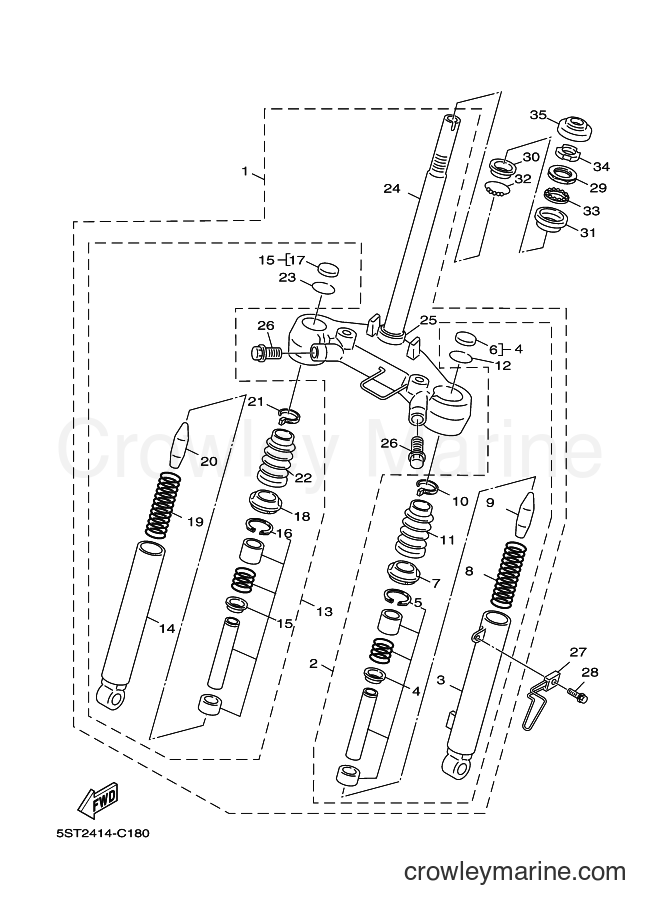

2007 Scooter XC50 - XC50 (3D14) [010] FRONT FORK diagram
![Yamaha Motors XC50 (3D14) [010] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/37U0ozJq.png)
-15%
1
Yamaha Motors
Front Fork Assembly3D1-F3100-00-00
Required: 1
FRONT FORK ASSY
No longer availableSearch Nationwide Inventory
$202.32
You save $35.70
-15%
2
Yamaha Motors
Front Left Fork Assembly5ST-F3102-00-00
Required: 1
. FRONT FORK ASSY (L.H)
$131.74
You save $23.25
-15%
3
Yamaha Motors
OUTER TUBE (LEFT)5ST-F3126-00-00
Required: 1
. . TUBE, OUTER (LEFT)
$47.59
You save $8.40
-15%
4
Yamaha Motors
Inner Tube Comp5ST-W2311-00-00
Required: 1
. . INNER TUBE COMP.1
No longer availableSearch Nationwide Inventory
$40.79
You save $7.20
-15%
5
Yamaha Motors
Oil Seal Clip5ST-F3156-00-00
Required: 1
. . . CLIP, OIL SEAL
$6.37
You save $1.12
-15%
6
Yamaha Motors
Inner Tube Plug5ST-F3154-00-00
Required: 1
. . . PLUG, INNER TUBE
No longer availableSearch Nationwide Inventory
$1.40
You save $0.25
-15%
7
Yamaha Motors
Dust Seal5ST-F3144-00-00
Required: 1
. . SEAL, DUST
$8.07
You save $1.42
-15%
8
Yamaha Motors
FRONT FORK SPRING5ST-F3141-00-00
Required: 1
. . SPRING, FRONT FORK
No longer availableSearch Nationwide Inventory
$10.19
You save $1.80
-15%
No longer availableSearch Nationwide Inventory
$6.79
You save $1.20
-15%
No longer availableSearch Nationwide Inventory
$0.68
You save $0.12
-15%
$11.89
You save $2.10
-15%
12
Yamaha Motors
Snap Ring3XG-F3153-00-00
Required: 1
. . RING, SNAP
No longer availableSearch Nationwide Inventory
$0.42
You save $0.08
-15%
13
Yamaha Motors
Front Right Fork Assembly5ST-F3103-00-00
Required: 1
. FRONT FORK ASSY (R.H)
No longer availableSearch Nationwide Inventory
$130.89
You save $23.10
-15%
14
Yamaha Motors
Outer Tube (Right)5ST-F3136-00-00
Required: 1
. . TUBE, OUTER (RIGHT)
No longer availableSearch Nationwide Inventory
$42.49
You save $7.50
-15%
15
Yamaha Motors
Inner Tube Comp5ST-W2311-00-00
Required: 1
. . INNER TUBE COMP.1
No longer availableSearch Nationwide Inventory
$40.79
You save $7.20
-15%
16
Yamaha Motors
Oil Seal Clip5ST-F3156-00-00
Required: 1
. . . CLIP, OIL SEAL
$6.37
You save $1.12
-15%
17
Yamaha Motors
Inner Tube Plug5ST-F3154-00-00
Required: 1
. . . PLUG, INNER TUBE
No longer availableSearch Nationwide Inventory
$1.40
You save $0.25
-15%
18
Yamaha Motors
Dust Seal5ST-F3144-00-00
Required: 1
. . SEAL, DUST
$8.07
You save $1.42
-15%
19
Yamaha Motors
FRONT FORK SPRING5ST-F3141-00-00
Required: 1
. . SPRING, FRONT FORK
No longer availableSearch Nationwide Inventory
$10.19
You save $1.80
-15%
No longer availableSearch Nationwide Inventory
$6.79
You save $1.20
-15%
No longer availableSearch Nationwide Inventory
$0.68
You save $0.12
-15%
$11.89
You save $2.10
-15%
23
Yamaha Motors
Snap Ring3XG-F3153-00-00
Required: 1
. . RING, SNAP
No longer availableSearch Nationwide Inventory
$0.42
You save $0.08
-13%
24
Yamaha Motors
Under Bracket Comp3D1-F3340-00-00
Required: 1
. UNDER BRACKET COMP.
No longer availableSearch Nationwide Inventory
$82.10
You save $12.06
-15%
25
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
. RACE, BALL 4
Supersedes: 22F-23414-01-00
$16.57
You save $2.92
-15%
26
Yamaha Motors
95811-10030-0095821-10030-00
Required: 2
. BOLT, FLANGE
No longer availableSearch Nationwide Inventory
$2.21
You save $0.39
-15%
No longer availableSearch Nationwide Inventory
$2.72
You save $0.48
$0.35
-15%
$21.24
You save $3.75
-15%
30
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
$7.22
You save $1.27
-15%
31
Yamaha Motors
Ball Race2SA-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 2E9-23412-00-00
$28.89
You save $5.10
-15%
32
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 1
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
$13.17
You save $2.32
-15%
$8.07
You save $1.42
-15%
34
Yamaha Motors
FITTING NUT2E9-23454-00-00
Required: 1
NUT, FITTING 2
$8.07
You save $1.42
-15%
35
Yamaha Motors
Ball Race Cover5SU-F3415-00-00
Required: 1
COVER, BALL RACE 1
$1.02
You save $0.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
