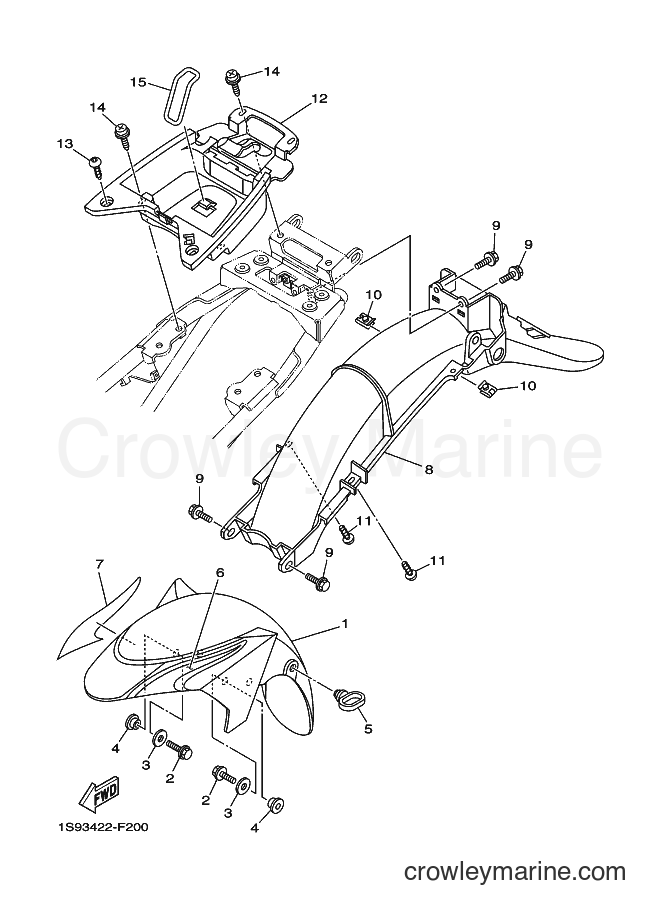

2007 Scooter T135SE - T135SE (1S93) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135SE (1S93) [010] - FENDER
Change View:
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT1S9-F1511-00-0X
Required: 1
FENDER, FRONT
Price unavailable
-15%
Plate Washer
3
Yamaha Motors
Plate Washer90201-06072-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COLLAR
4
Yamaha Motors
COLLAR90387-06804
Required: 4
COLLAR
Price unavailable
HOLDER, CABLE
5
Yamaha Motors
HOLDER, CABLE5SD-F1518-00
Required: 1
HOLDER, CABLE
Price unavailable
GRAPHIC 1
6
Yamaha Motors
GRAPHIC 11S9-F1569-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
7
Yamaha Motors
GRAPHIC 21S9-F1579-00
Required: 1
GRAPHIC 2
Price unavailable
FENDER, REAR
8
Yamaha Motors
FENDER, REAR1S9-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-15%
Bolt with Washer
9
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
NUT, SPRING
10
Yamaha Motors
NUT, SPRING90183-05811
Required: 2
NUT, SPRING
Price unavailable
SCREW, ROUND TAPPING
11
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
BOX
12
Yamaha Motors
BOX1S9-F160E-00
Required: 1
BOX
Price unavailable
SCREW, ROUND TAPPING
13
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
-15%
Screw with Washer
14
Yamaha Motors
Screw with Washer90159-06067-00
Required: 4
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BAND, BATTERY
15
Yamaha Motors
BAND, BATTERY5WP-H2131-00
Required: 1
BAND, BATTERY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
