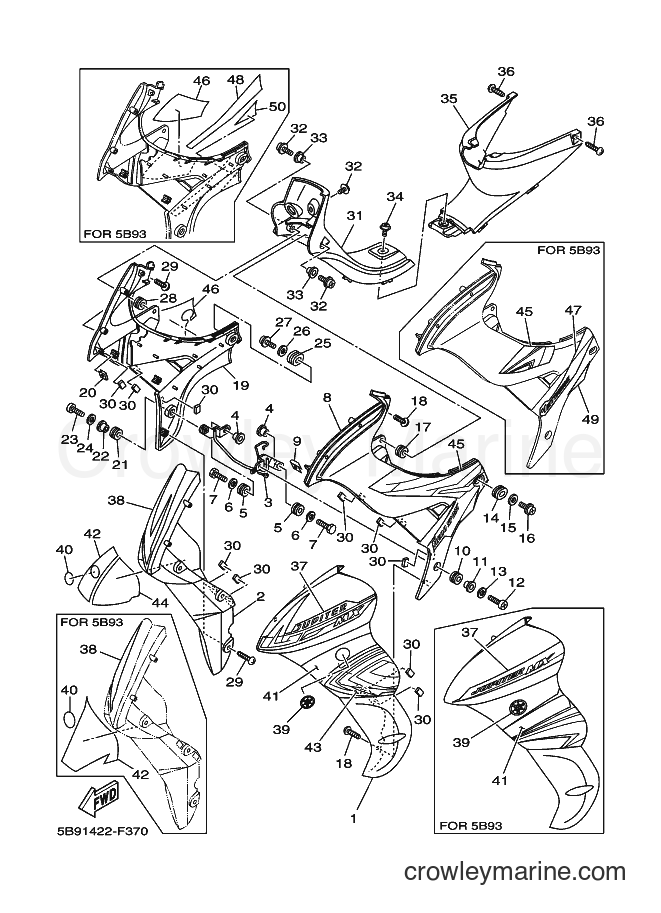

2007 Scooter T110SEC - T110SEC (5B93) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SEC (5B93) [010] - LEG SHIELD
Change View:
LEG SHIELD 1
1
Yamaha Motors
LEG SHIELD 15VT-F8311-00-P0
Required: 1
LEG SHIELD 1
Price unavailable
LEG SHIELD 1
1
Yamaha Motors
LEG SHIELD 15VT-F8311-00-7X
Required: 1
LEG SHIELD 1
Price unavailable
LEG SHIELD 2
2
Yamaha Motors
LEG SHIELD 25VT-F8312-00-P0
Required: 1
LEG SHIELD 2
Price unavailable
LEG SHIELD 2
2
Yamaha Motors
LEG SHIELD 25VT-F8312-00-7X
Required: 1
LEG SHIELD 2
Price unavailable
STAY, LEG SHIELD
3
Yamaha Motors
STAY, LEG SHIELD5VT-F8332-00
Required: 1
STAY, LEG SHIELD
Price unavailable
COLLAR
4
Yamaha Motors
COLLAR90387-06814
Required: 2
COLLAR
Price unavailable
-15%
Grommet
5
Yamaha Motors
Grommet90480-13018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plate Washer
6
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
-15%
Hexagon Bolt
7
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97007-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
COVER, LOWER
8
Yamaha Motors
COVER, LOWER5VT-F8385-00-P2
Required: 1
COVER, LOWER
Price unavailable
COVER, LOWER
8
Yamaha Motors
COVER, LOWER5VT-F8385-00-P4
Required: 1
COVER, LOWER
Price unavailable
NUT, SPRING
9
Yamaha Motors
NUT, SPRING90183-05811
Required: 1
NUT, SPRING
Price unavailable
-15%
Grommet (3AK)
10
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COLLAR
11
Yamaha Motors
COLLAR90387-09801
Required: 1
COLLAR
Price unavailable
-15%
Binding Screw
12
Yamaha Motors
Binding Screw98907-06020-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plate Washer
13
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
GROMMET
14
Yamaha Motors
GROMMET90480-01800
Required: 1
GROMMET
Price unavailable
-15%
Plain Washer
15
Yamaha Motors
Plain Washer90201-06021-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
SCREW, WITH WASHER
16
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
GROMMET
17
Yamaha Motors
GROMMET90480-13864
Required: 1
GROMMET
Price unavailable
-15%
Truss Screw
18
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
COVER, UNDER
19
Yamaha Motors
COVER, UNDER5VT-F8395-00-P4
Required: 1
COVER, UNDER
Price unavailable
COVER, UNDER
19
Yamaha Motors
COVER, UNDER5VT-F8395-00-P2
Required: 1
COVER, UNDER
Price unavailable
NUT, SPRING
20
Yamaha Motors
NUT, SPRING90183-05811
Required: 1
NUT, SPRING
Price unavailable
-15%
Grommet (3AK)
21
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COLLAR
22
Yamaha Motors
COLLAR90387-09801
Required: 1
COLLAR
Price unavailable
-15%
Binding Screw
23
Yamaha Motors
Binding Screw98907-06020-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plate Washer
24
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
GROMMET
25
Yamaha Motors
GROMMET90480-01800
Required: 1
GROMMET
Price unavailable
-15%
Plain Washer
26
Yamaha Motors
Plain Washer90201-06021-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
SCREW, WITH WASHER
27
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
GROMMET
28
Yamaha Motors
GROMMET90480-13864
Required: 1
GROMMET
Price unavailable
-15%
Truss Screw
29
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
DAMPER
30
Yamaha Motors
DAMPER5VT-F8371-00
Required: 10
DAMPER
Price unavailable
COVER 1
31
Yamaha Motors
COVER 15VT-F842M-00
Required: 1
COVER 1
Price unavailable
SCREW, WITH WASHER
32
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 3
SCREW, WITH WASHER
Price unavailable
COLLAR
33
Yamaha Motors
COLLAR90387-06846
Required: 2
COLLAR
Price unavailable
-15%
Screw with Washer
34
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COVER 2
35
Yamaha Motors
COVER 22S0-F842N-00
Required: 1
COVER 2
Price unavailable
-15%
Truss Screw
36
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GRAPHIC 1
37
Yamaha Motors
GRAPHIC 15B9-F8391-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 7
37
Yamaha Motors
GRAPHIC 75B9-F839A-00
Required: 1
GRAPHIC 7
Price unavailable
GRAPHIC 2
38
Yamaha Motors
GRAPHIC 25B9-F8392-00
Required: 1
GRAPHIC 2
Price unavailable
GRAPHIC 8
38
Yamaha Motors
GRAPHIC 85B9-F839E-00
Required: 1
GRAPHIC 8
Price unavailable
TUNING FORK MARK
39
Yamaha Motors
TUNING FORK MARK1S9-F836D-00
Required: 1
TUNING FORK MARK
Price unavailable
TUNING FORK MARK
40
Yamaha Motors
TUNING FORK MARK1S9-F836D-00
Required: 1
TUNING FORK MARK
Price unavailable
GRAPHIC 9
41
Yamaha Motors
GRAPHIC 95B9-F839F-00
Required: 1
GRAPHIC 9
Price unavailable
GRAPHIC 3
41
Yamaha Motors
GRAPHIC 35B9-F8393-00
Required: 1
GRAPHIC 3
Price unavailable
GRAPHIC 10
42
Yamaha Motors
GRAPHIC 105B9-F839G-00
Required: 1
GRAPHIC 10
Price unavailable
GRAPHIC 4
42
Yamaha Motors
GRAPHIC 45B9-F8394-00
Required: 1
GRAPHIC 4
Price unavailable
GRAPHIC 5
43
Yamaha Motors
GRAPHIC 55B9-F8398-00
Required: 1
GRAPHIC 5
Price unavailable
GRAPHIC 6
44
Yamaha Motors
GRAPHIC 65B9-F8399-00
Required: 1
GRAPHIC 6
Price unavailable
GRAPHIC 12
45
Yamaha Motors
GRAPHIC 125B9-F832K-00
Required: 1
GRAPHIC 12
Price unavailable
GRAPHIC 14
45
Yamaha Motors
GRAPHIC 145B9-F831Y-00
Required: 1
GRAPHIC 14
Price unavailable
GRAPHIC 13
46
Yamaha Motors
GRAPHIC 135B9-F832L-00
Required: 1
GRAPHIC 13
Price unavailable
GRAPHIC15
46
Yamaha Motors
GRAPHIC155B9-F832B-00
Required: 1
GRAPHIC15
Price unavailable
GRAPHIC 16
47
Yamaha Motors
GRAPHIC 165B9-F832C-00
Required: 1
GRAPHIC 16
Price unavailable
GRAPHIC 17
48
Yamaha Motors
GRAPHIC 175B9-F832D-00
Required: 1
GRAPHIC 17
Price unavailable
GRAPHIC 19
49
Yamaha Motors
GRAPHIC 195B9-F83B3-00
Required: 1
GRAPHIC 19
Price unavailable
GRAPHIC 20
50
Yamaha Motors
GRAPHIC 205B9-F83B4-00
Required: 1
GRAPHIC 20
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
