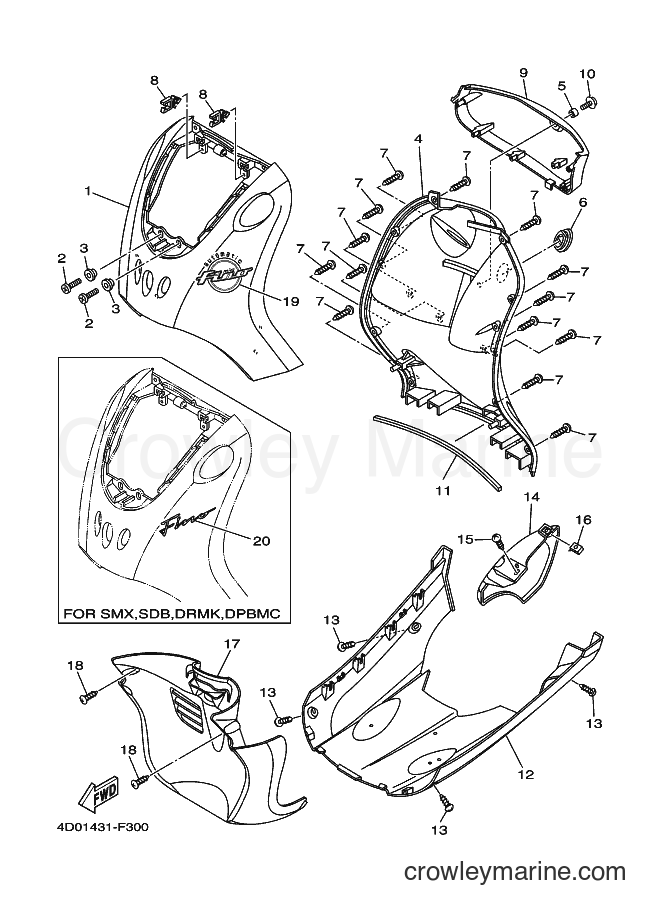

2007 Scooter CT-115D - CT-115D (4D01) [010] LEG SHIELD diagram
![Yamaha Motors CT-115D (4D01) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/CzKkMmqd.png)
1
Yamaha Motors
LEG SHIELD 14D0-F8311-00-NX
Required: 1
LEG SHIELD 1
Price unavailable
-15%
$8.92
You save $1.57
3
Yamaha Motors
COLLAR90387-07811
Required: 2
COLLAR
Price unavailable
4
Yamaha Motors
LEG SHIELD 24D0-F8312-00-UJ
Required: 1
LEG SHIELD 2
Price unavailable
5
Yamaha Motors
COLLAR90387-08817
Required: 1
COLLAR
Price unavailable
6
Yamaha Motors
CAP4D0-F8349-00
Required: 1
CAP
Price unavailable
-15%
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 14
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Yamaha Motors
CLAMP90464-14801
Required: 2
CLAMP
Price unavailable
9
Yamaha Motors
PANEL, INNER 14D0-F836K-00-UJ
Required: 1
PANEL, INNER 1
Price unavailable
-15%
10
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
11
Yamaha Motors
DAMPER 14D0-F8415-00
Required: 1
DAMPER 1
Price unavailable
12
Yamaha Motors
COVER, LOWER4D0-F8385-10
Required: 1
COVER, LOWER
Price unavailable
-15%
13
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
14
Yamaha Motors
COVER, UNDER4D0-F8395-00
Required: 1
COVER, UNDER
Price unavailable
-15%
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
16
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
17
Yamaha Motors
FENDER, INNER4D0-F1552-10
Required: 1
FENDER, INNER
Price unavailable
-15%
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
19
Yamaha Motors
GRAPHIC 14D0-F8391-00
Required: 1
GRAPHIC 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
