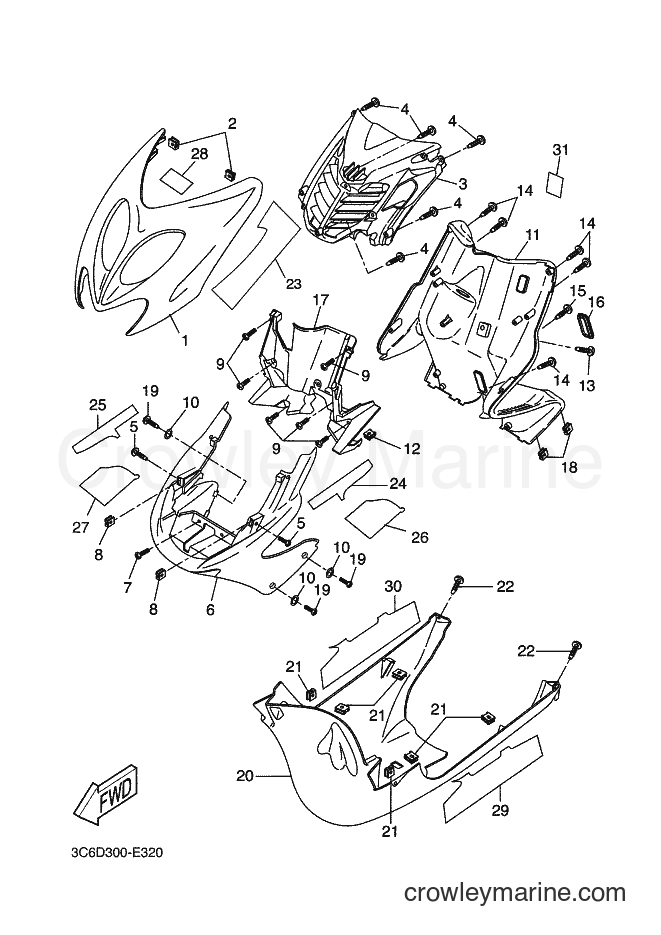

2006 Scooter YQ50L - YQ50L (3C6D) [090] LEG SHIELD diagram
![Yamaha Motors YQ50L (3C6D) [090] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/OUkYi2lT.png)
1
Yamaha Motors
BODY, FRONT UPPER 15BR-F835G-00-26
Required: 1
BODY, FRONT UPPER 1
Price unavailable
-15%
2
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
3
Yamaha Motors
GRILL, AIR INTAKE 15BR-F837N-00
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
-15%
4
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 6
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
5
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 2
SCREW, TAPPING
Price unavailable
6
Yamaha Motors
BODY, FRONT LOWER 15BR-F835J-00-26
Required: 1
BODY, FRONT LOWER 1
Price unavailable
7
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X01
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
-15%
8
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
9
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 6
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
10
Yamaha Motors
WASHER, PLATE90202-05X00
Required: 4
WASHER, PLATE
Price unavailable
11
Yamaha Motors
LEG SHIELD 15BR-F8311-00
Required: 1
LEG SHIELD 1
Price unavailable
-15%
12
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
13
Yamaha Motors
Screw with Washer90159-06093-00
Required: 1
SCREW, WITH WASHER
$8.07
You save $1.42
14
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 5
SCREW, TAPPING
Price unavailable
-15%
15
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
-15%
$16.57
You save $2.92
17
Yamaha Motors
PANEL, INNER 15BR-F836K-01
Required: 1
PANEL, INNER 1
Price unavailable
-15%
18
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
19
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 4
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
20
Yamaha Motors
COVER, LOWER5BR-F8385-21
Required: 1
COVER, LOWER
Price unavailable
-15%
21
Yamaha Motors
Spring Nut90183-05X03-00
Required: 6
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
22
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 2
SCREW, TAPPING
Price unavailable
23
Yamaha Motors
GRAPHIC 203C6-F83B4-00
Required: 1
GRAPHIC 20
Price unavailable
24
Yamaha Motors
GRAPHIC 213C6-F83B5-00
Required: 1
GRAPHIC 21
Price unavailable
25
Yamaha Motors
GRAPHIC 223C6-F83B6-00
Required: 1
GRAPHIC 22
Price unavailable
26
Yamaha Motors
GRAPHIC 233C6-F83B7-00
Required: 1
GRAPHIC 23
Price unavailable
27
Yamaha Motors
GRAPHIC 243C6-F83B8-00
Required: 1
GRAPHIC 24
Price unavailable
28
Yamaha Motors
EMBLEM 35BR-F152A-10
Required: 1
EMBLEM 3
Price unavailable
29
Yamaha Motors
GRAPHIC, UNDER COVER 53C6-F83A5-00
Required: 1
GRAPHIC, UNDER COVER 5
Price unavailable
30
Yamaha Motors
GRAPHIC, UNDER COVER 63C6-F83A6-00
Required: 1
GRAPHIC, UNDER COVER 6
Price unavailable
-15%
31
Yamaha Motors
LABEL, WARNING5WW-F1568-01-00
Required: 1
LABEL, WARNING
Supersedes: 5WW-F1568-00-00
$50.99
You save $9.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
