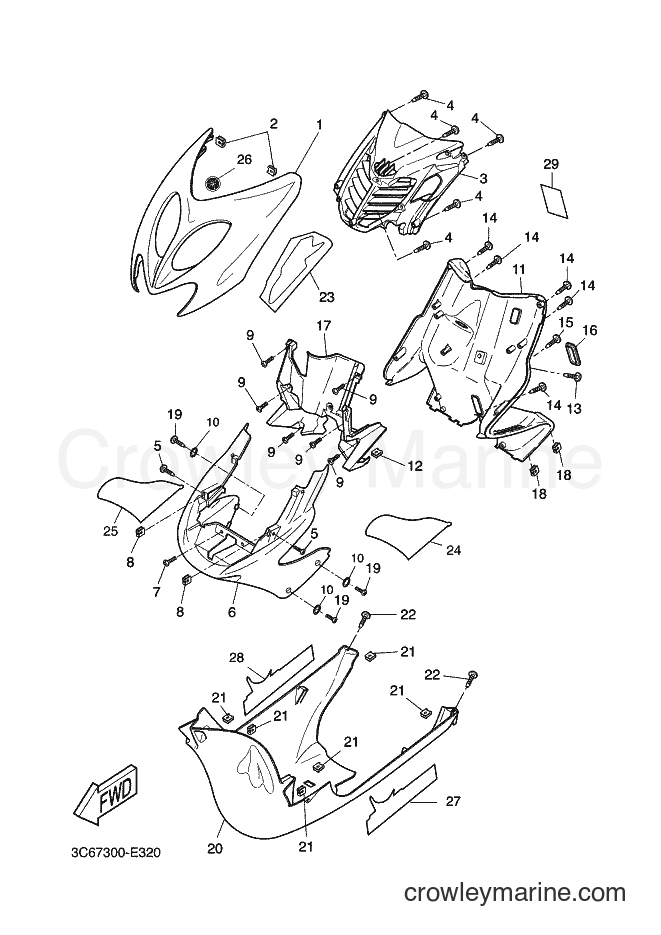

2006 Scooter YQ50 - YQ50 (3C6B) [010] LEG SHIELD diagram
![Yamaha Motors YQ50 (3C6B) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/BiE3dgbo.png)
-15%
2
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
4
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 6
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
5
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 2
SCREW, TAPPING
Price unavailable
7
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X01
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
-15%
8
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
9
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 6
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
10
Yamaha Motors
WASHER, PLATE90202-05X00
Required: 4
WASHER, PLATE
Price unavailable
11
Yamaha Motors
LEG SHIELD 15BR-F8311-00
Required: 1
LEG SHIELD 1
Price unavailable
-15%
12
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
13
Yamaha Motors
Screw with Washer90159-06093-00
Required: 1
SCREW, WITH WASHER
$8.07
You save $1.42
14
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 5
SCREW, TAPPING
Price unavailable
-15%
15
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
-15%
$16.57
You save $2.92
17
Yamaha Motors
PANEL, INNER 15BR-F836K-01
Required: 1
PANEL, INNER 1
Price unavailable
-15%
18
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
19
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 4
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
20
Yamaha Motors
COVER, LOWER5BR-F8385-21
Required: 1
COVER, LOWER
Price unavailable
-15%
21
Yamaha Motors
Spring Nut90183-05X03-00
Required: 6
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
22
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 2
SCREW, TAPPING
Price unavailable
26
Yamaha Motors
EMBLEM, YAMAHAX01-F153A-10
Required: 1
EMBLEM, YAMAHA
Price unavailable
-15%
29
Yamaha Motors
LABEL, WARNING5WW-F1568-01-00
Required: 1
LABEL, WARNING
Supersedes: 5WW-F1568-00-00
$50.99
You save $9.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
